GLV32 Proportional Multi-Way Directional Valve
Request a Quote
- The valve's dual-section configuration offers a streamlined solution for complex hydraulic setups, optimizing space and efficiency
- With an array of selectable valve core options, the GLV32 provides unmatched customization, allowing operators to fine-tune system performance to their requirements
- Its parallel circuitry design ensures effective fluid distribution, facilitating seamless operations and enhanced system reliability
- The GLV32 achieves exceptional speed modulation and consistent operational precision by utilizing precision-engineered grooves within the valve cores
- Integrates advanced load independent flow dividing (LIFD) technology for stable flow control, unaffected by fluctuating load pressures, resulting in significant energy conservation and operational comfort
- Features an innovative return oil regeneration capability, which enhances energy efficiency and mitigates the risk of cavitation, thus prolonging system integrity
- Equipped with easily accessible, built-in safety and overload protection valves, simplifying maintenance and ensuring versatile application compatibility
- Compatible with both fixed and variable hydraulic systems, the GLV32 offers flexibility and performance reliability, setting a new standard in hydraulic control
Applications
- Wheel loaders
- Excavators
- Bulldozers
- Telescopic handlers
- Material handling equipment
Parameters
| Rated pressure (MPa) | 31.5 |
| Rated flow (L/min) | 350 (maximum flow: 400L/min) |
| Pressure range of main overflow valve (MPa) | 15～31.5 |
| Pressure range of secondary overflow valve (MPa) | 15～31.5 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～100 |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-2002 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 61 |

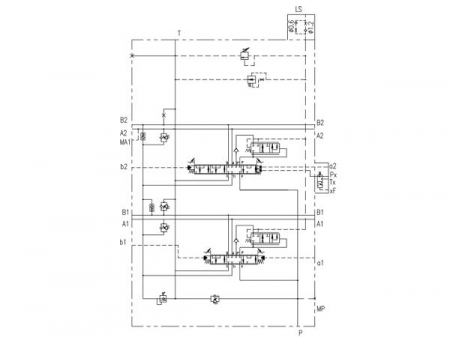

Hydraulic System Schematic Diagram

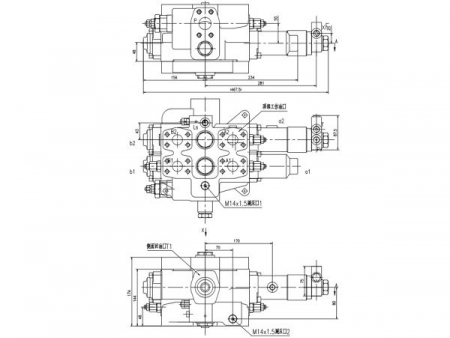

External Connection Dimensions
