TDV20 Sectional Multi-Way Valve Manufacturer

TDV20 Sectional Multi-Way Valve

Request a Quote

View All: http://controlvalvemaker.com/1-2-10-tdv20-sectional-multi-way-valve.html

These multi-war valves’ modular structure supports 1 to 8 sections, offering customizable combinations to suit specific operational needs
It accommodates parallel, parallel, or dual circuit systems within a single multi-way valve assembly, enhancing system versatility
With precision-engineered grooves in the valves cores, they delivers progressive flow control characteristics, ensuring a broad range of flow rates for precise fluid management
Operated via hydraulic remote control, offering ease of operation and integration into existing systems
Its compact design facilitates efficient piping layouts, making installation and integration straightforward
Featuring built-in cartridge-style main safety valves, overload valves, replenishment valves, and check valves, the valve is designed for ease of maintenance and high adaptability

Applications

Parameters

Rated pressure (MPa)	25
Rated flow (L/min)	150
Pressure range of main overflow valve (MPa)	10～30
Pressure range of secondary overflow valve (MPa)	15～32
Hydraulic oil	Mineral oil (HL, HLP) in accordance with DIN 51 524
Fluid temperature range (℃)	－20～100
Viscosity range (mm2/s)	10～380
Fluid cleanliness	Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10
Weight (kg)	32

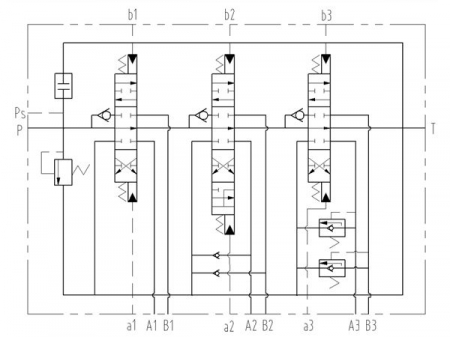

Hydraulic System Schematic Diagram

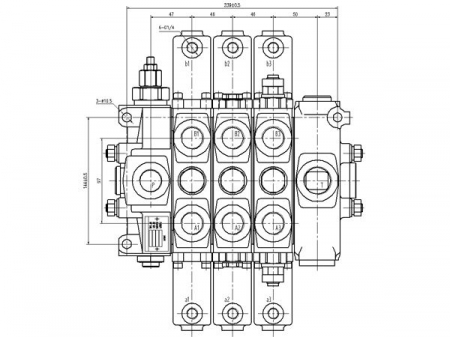

External Connection Dimensions

Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components

Annual production capacity of 250,000 sets of hydraulic components

Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
