DLV32/32.3 Proportional Multi-Way Directional Valve
Request a Quote
- Offers both dual and triple sectional configurations, providing versatile solutions for complex hydraulic circuits
- Users can choose from a variety of valve core functions, ensuring a customizable approach to match specific application needs
- Designed with parallel circuit configurations, it facilitates streamlined fluid control across various channels
- The valve cores are engineered with precision-controlled grooves, delivering outstanding speed control and exceptional repeatability
- Incorporates load independent flow dividing (LIFD) control for consistent flow unaffected by load pressure, enhancing energy efficiency and operational comfort
- Equipped with built-in cartridge type main safety valves, overload valves, and replenishment valves, this valve excels in versatility and ease of maintenance.
- Compatible with both constant and variable systems, accommodating a wide range of hydraulic applications
Applications
- Wheel loaders
- Bulldozers
- Forklifts
- Material handling equipment
Parameters
| Rated pressure (MPa) | 31.5 |
| Rated flow (L/min) | 350 (maximum flow: 400L/min) |
| Pressure range of main overflow valve (MPa) | 15～31.5 |
| Pressure range of secondary overflow valve (MPa) | 15～31.5 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | -20～100 |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 63/93.45 |

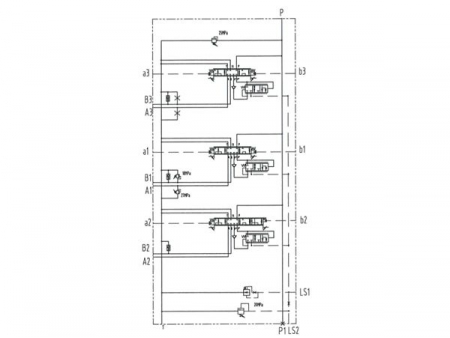

Hydraulic System Schematic Diagram

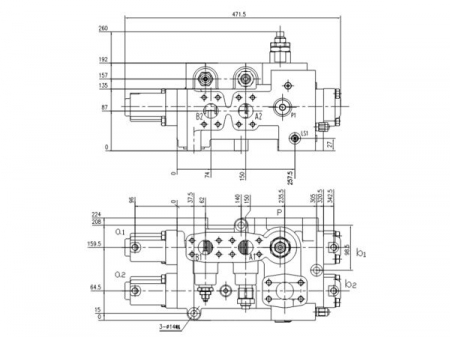

External Connection Dimensions
