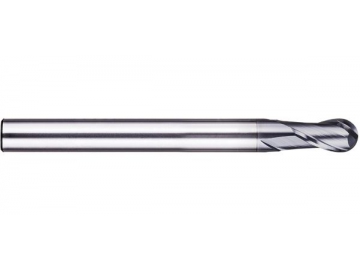

H-BH2 Solid Carbide End Mill for Hardened Steel Machining - Ball Nose - 2 Flutes - Long Shank
Request a Quote
Request a quote
Unit: mm
| Order Code | Cutting Diameter (D) | Ball Radius (R) | Length of Cut (Lc) | Overall Length (L) | Shank Diameter (d) | Type |
H-BH2-63006 | 3 | 1.5 | 6 | 60 | 6 | A |
H-BH2-64008 | 4 | 2 | 8 | 75 | 6 | A |
H-BH2-65010 | 5 | 2.5 | 10 | 75 | 6 | A |
H-BH2-06012 | 6 | 3 | 12 | 75 | 6 | B |
H-BH2-08016 | 8 | 4 | 16 | 100 | 8 | B |
H-BH2-10020 | 10 | 5 | 20 | 100 | 10 | B |
H-BH2-12024 | 12 | 6 | 24 | 100 | 12 | B |
Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
