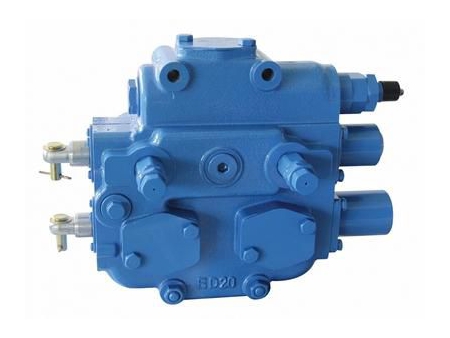

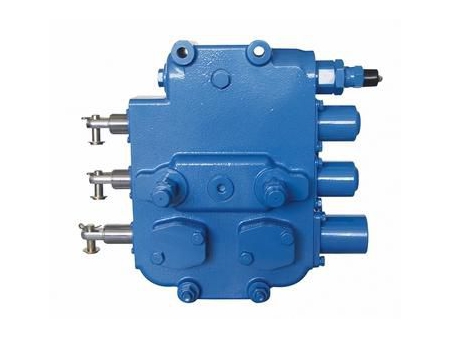

GDF-25D/32D Manual Monoblock Valve

GDF-25D/32D  Manual Monoblock Valve
GDF-25D/32D  Manual Monoblock Valve
GDF-25D/32D  Manual Monoblock Valve
GDF-25D/32D  Manual Monoblock Valve
GDF-25D/32D  Manual Monoblock Valve
Request a Quote
  • Monoblock directional control valve is available in 2 sections or 3 sections.
  • Monoblock control valve is equipped with safety valve, overload valve and charge valve, suitable for a wide range of applications, easy maintenance.
  • Control valve has high operating pressure and can allow high flow rates.
  • Directional control valve controls the fluid flow and has excellent flow characteristics.
  • Hydraulic valve is mechanically operated, low actuation force.
  • Loop type: serial-parallel connection, parallel connection.
  • Spool function: 3 positions, 4 positions.
  • Location mode: stainless steel ball spring plunger.
Applications
  • Loader
  • Bulldozer
  • Agricultural machinery
  • Material handling machinery
  • Forestry machinery
Parameters
GDF32D GDF25D
Rated pressure (MPa) 25 25
Rated flow (L/min) 250 (maximum flow: 350L/min) 160 (maximum flow: 250L/min)
Pressure range of main overflow valve (MPa) 10-25
Pressure range of secondary overflow valve (MPa) 15-31.5
Hydraulic oil Mineral oil (HL, HLP) in accordance with DIN 51 524
Fluid temperature range (℃) -20-100
Fluid cleanliness Not lower than GB/T 14039-93 19/16 level or NAS 1638 10 level
Weight (Kg) 34 (2 sections) 46 (3 sections)
Tags

Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components

Annual production capacity of 250,000 sets of hydraulic components

Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
