Glass Lined Bottom Outlet Valve, Manual Drain

Request a Quote

View All: http://glasslined-equip.com/6-2-glass-lined-bottom-outlet-valve.html

Glass Lined Chemical Processing Equipment

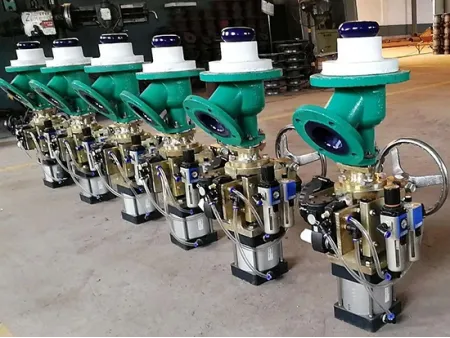

This glass lined bottom outlet valve adopts gap-free design, the tight assembling of packing seal and valve core can significantly reduce the chance of leakage. These glass lined valves can be equipped with temperature sensor, allowing for accurate measuring of material temperature. This manually operated bottom outlet valve uses hand wheel to open and close.

reaction vessel

valve core

loose flange

valve seat

valve body

cleansing opening

corrugated packing

valve rod

thermal resistance

coupler

pneumatic cylinder actuator

handwheel

Working temperature -19℃ to 200℃ (resistance to thermal shock less than 120℃)
Working pressure -0.1MPa to 1.0MPa
Working environment inorganic acid, organic acid, weak alkaline solution, and organic solution; better performance than the stainless steel in highly corrosive medium like saline acid, phosphoric acid, and aqua regia; avoid any fluids containing fluorine ions like hydrofluoric acid, strong bases, and strong phosphoric acid with the temperature ≥180℃.

Technical Data

DN/DN1	H	H1	H2	H2	L	d
80/50	690	70	52	35	145	79-83
100/80	730	80	60		180	99-103
150/100	745	100	72		200	150-154
