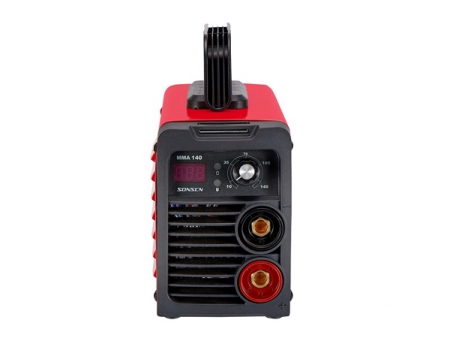

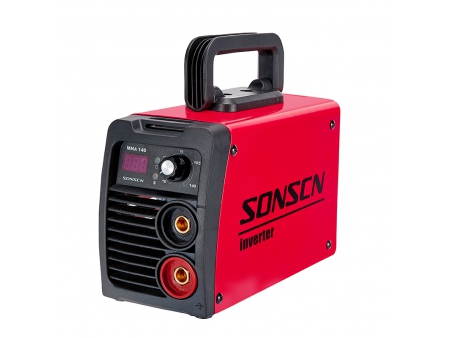

MMA Welder Type: SD

MMA Welder Type: SD
MMA Welder Type: SD
MMA Welder Type: SD
MMA Welder Type: SD
MMA Welder Type: SD
Request a Quote

Welding Equipment

Your welding application needs are our concern, satisfying your challenges with proven performance

  • Advanced IGBT inverter &MCU digital control: provides stable performance, reliability and high consistency.
  • Portable & lightweight: this welder is easy to operate and carry.
  • Wide range of input voltages: 155-265V (1ph) 50/60HZ.
  • Generator compatible: The MMA welder type SD will be able to operate when powered by a generator.
  • Premium welding performance: support welding rods with a maximum diameter of 3.2mm (1/8") or 4.0mm (5/32"). The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Support E7018, E6010, E6011, E6013 and E308 electrode rods, etc.
Model Power Voltage No-load Voltage Efficiency Rated Input Power Output Current Range Duty Cycle Electrode Diameter Weight Dimension
ARC140SD 230V土10% 50/60hz(1ph) 75V 85% 5.5KVA 10-120A 60% 1.5-3.2mm(1/8") 3.2kg 23*10*14.5cm
ARC160SD 230V土10% 50/60hz(1ph) 75V 85% 6.1KVA 10-140A 60% 1.5-3.2mm(1/8") 3.4kg 23*10*14.5cm
ARC180SD 230V土10% 50/60hz(1ph) 75V 85% 6.9KVA 10-160A 60% 1.5-4.0mm(5/32") 3.8kg 23*10*14.5cm
ARC200SD 230V土10% 50/60hz(1ph) 75V 85% 8.2KVA 10-180A 60% 1.5-4.0mm(5/32") 4.2kg 25*11.5*18cm
Features
  • Advanced IGBT inverter &MCU digital control

    provides stable performance, reliability and high consistency.

  • Portable & lightweight

    This welder is easy to operate and carry.

  • Wide range of input voltages

    155-265V (1ph) 50/60HZ.

  • Generator compatible

    The MMA welder type SD will be able to operate when powered by a generator.

  • Premium welding performance

    Support welding rods with a maximum diameter of 3.2mm (1/8") or 4.0mm (5/32"). The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Support E7018, E6010, E6011, E6013 and E308 electrode rods, etc.

  • Hot start

    Provides very easy, quick and reliable arc starts upon contact with the workpiece.

  • Anti-stick

    Avoid electrode sticking in the workpiece during welding, ensures no sticking and smooth welds.

  • Built-in arc force

    Provides smooth and continuous arc, ensures stable welding, and maintains deeper penetration.

  • Safety protection

    The welder is equipped with automatic compensation for overload, overheating protection, voltage fluctuation, and short circuit protection.

  • Lift TIG capabilities

    Integrated lift-TIG functionality enables TIG welding using argon gas. You can choose stick or lift TIG mode as you want.

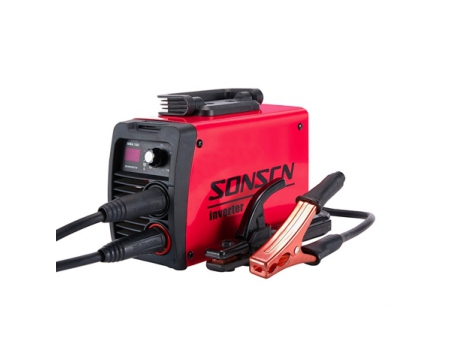

Standard Accessories
  • Electrode holder with cable

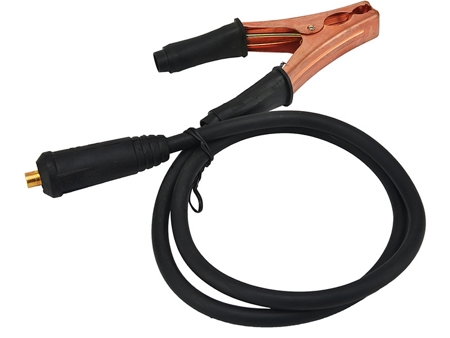

  • Earth clamp with cable
Optional Accessories
  • Plastic tool box
  • Welding mask
  • Wire brush
FAQs
It can handle welding rods with a diameter ranging from 1.6mm(1/16") to 4.0mm(5/32").
The manual welder can handle workpieces with a thickness ranging from 0.8 mm to 11mm.
Yes, it can be used in conjunction with a power generator, as a movable welding machine.
The MMA Welder Type SD comes with a single-phase 230V±10% V, 50/60 Hz power source. If you have any requirements on power source, please contact us.
MMA Welder Type SD is suitable for various types of welding rods such as E7018, E6010, E6011, E6013, E308, and more.
  • MMA Welder Type SD integrates IGBT inverter technology, making the welding equipment more energy-efficient and compact in size, facilitating movable welding.
  • It incorporates MCU intelligent control technology, making the welder more intelligent, with stable performance and high consistency, thus improving welding quality and efficiency.
SONSCN has over 20 years of experience as a professional welding equipment manufacturer. We not only provide welding machines, but also offer related welding equipment accessories.
Yes, Our Products have obtained multiple patented technologies, as well as international CE certification. For more information, please to view.
