Single Colour Sole Injection Moulding Machine, LA106U T/ LA112U T
| Item | Unit | | |
| Raw materials | TPU, TR, TPR, PVC | ||
| Stations | 6 | 12 | |
| Screw diameter | mm | 60 | |
| Maximum injection volume | CC | 565 | |
| Injection pressure | MPa | 120 | |
| Clamping force | Tons | 150 | |
| Yield | Pairs/hour | 60-150 | 100-240 |
| Mould space | mm | 500*330*200 | |
| Heating power | kW | 9 | |
| Total power | kW | 34.5 | |
| Dimensions | cm | 480*210*250 | 550*310*250 |
| Machine weight | Tons | 7.3 | 7.8 |
| Oil consumption | L | 650 | |
| Special configuration | Servo motor, automatic mould manipulator, mould water cooling system, drying hopper | ||
-
V type mould structure
-
Drying hopper
-
Mould manipulator
-

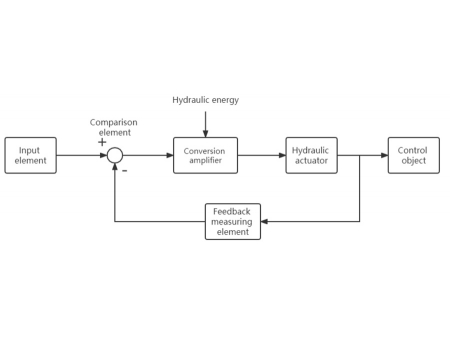

Energy-saving hydraulic servo control system
LA106U T/ LA112U T Single Colour Sole Injection Moulding Machine
This injection moulding machine is used for the production of monochromatic studs, soles, shoe covers and mobile phone cases. It is applicable to turn out goods from different materials, like TPU, TR, PVC and TPR.
- Large injection and clamping module, flashes will be avoided;
- Mould water cooling system, faster cooling performance, better product quality;
- Automatic mould manipulator, reduced labour intensity;
- Closed-loop servo control system, lower noise and cost;
- Raw material drying device is installed to avoid bubbles popping up in finished products;
-
PLC system with industrial human-machine interface (HMI), easy to use;
-
PLC system
-
PLC
-
HMI interface
-
-
Besides these features, our injection moulding machine is produced with following designs:
-
Safety sign
-
Safety signSafety door with photoelectric switch
-
Emergency stop button
-
Rotary table anti-lifting switch
-
-
Cooling tower
it brings down the temperature of hydraulic oil and raw materials; -
Crusher
it breaks down used materials; -
Vertical mixer
it blends materials with different colours and turn them into one colour;
| Parts list | ||
| Toolbox | / | 1pc |
| Allen key | 1.5-10 | 9 sets |
| Open-end wrench | 6-24 | 8 sets |
| Phillips screwdriver (small) | / | 2pcs |
| Phillips screwdriver (large) | / | 1pc |
| Adjustable wrench | 250mm | 1pc |
| Heating ring | Ø120*80 mm | 2pcs |
| Heating ring | Ø70*50 mm | 1pc |
| Heating rod | Ø15.8*100 mm | 2pcs |
| Proximity switch | Ø 25*25mm | 1pc |
| Proximity switch | Ø 12*12mm | 1pc |
| Thermoelectric coupling | K type/5M | 2pcs |
| Oil seal | / | 2pcs |
| Plugging rod | / | 1pc |
| Plugging bushing | / | 1pc |
| Copper gasket | / | 1pc |
| Injection nozzle | / | 1pc |
| User manual | / | 1 |
