Rotary injection machine for producing TPR/PVC soles in one, two or three colours

This injection moulding machine produces soles and sole sheets out of raw materials like TPR and PVC. What makes this footwear injection machine so unique is that it can make single-, two- and three-colour soles and sole sheets. Apart from this advantage, this injection moulding machine is equipped with 12 sets of molds, meaning that it can produce 12 pairs of shoe soles at a time.

Specifications
Item Unit EC320R EC324R
Raw materials TPR, PVC
Stations 20 24
Screw diameter mm 75 50*2
Maximum injection volume CC 880 390*2
Injection pressure MPa 70
Clamping force Tons 60*3
Yield Pairs/hour 150-280 150-300
Mould space mm 400*220*190
Heating power kW 9 6.5*2
Total power kW 67
Mechanical Dimensions cm 920×620×220 980×720×220
Machine weight Tons 18.6 19.8
Oil consumption L 600*3
Optional
  • Water cooling system

  • Energy-saving hydraulic servo control system

  • Suction machine

  • Mould manipulator

System flow chart
Features
  • Block cylinder is designed with special structure, providing heat insulation and leakage resistance performance;

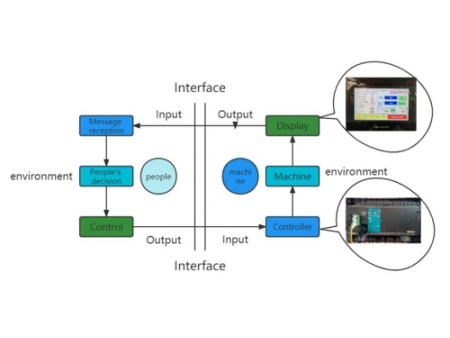

  • This injection moulding machine has a user-friendly PLC control system with industrial human-machine interface (HMI);

    • PLC system

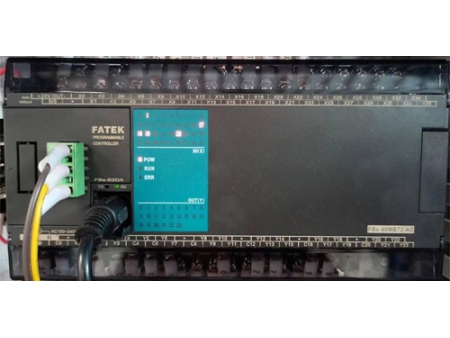

    • PLC

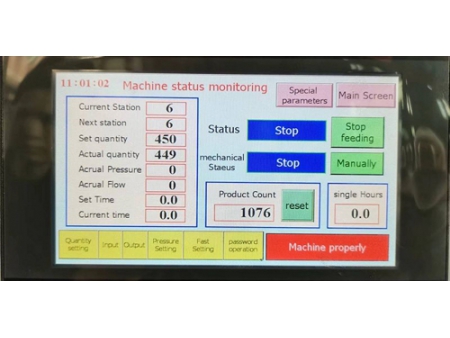

    • HMI interface

  • Several safety measures are put into place, including:

    • Safety sign

    • Safety signSafety door with photoelectric switch

    • Emergency stop button

    • Rotary table anti-lifting switch

  • Hydraulic system is installed to ensure stable and safe operation;

    • 2PN mould clamping hydraulic oil circuit

    • Proportional injection hydraulic oil circuit

  • Servo system is optional for energy saving;

Auxiliary Equipment
  • Cooling tower cools down hydraulic oil and raw materials before they are fed into the injection moulding machine;

  • Crusher is used for recycling used materials;

  • Vertical mixer mixes materials with different colours;

Accessories and Components
Parts list
Toolbox / 1pc
Allen key 1.5-10 9 sets
Open-end wrench 6-24 8 sets
Phillips screwdriver (small) / 2pcs
Phillips screwdriver (large) / 1pc
Adjustable wrench 250mm 1pc
Heating ring Ø90*80 mm 1pc
Heating ring Ø65*50 mm 1pc
Heating ring Ø120*80 mm 1pcs
Heating ring Ø70*50 mm 1pc
Heating rod Ø15.8*100 mm 2pcs
Proximity switch Ø 25*25mm 1pc
Proximity switch Ø 12*12mm 1pc
Thermoelectric coupling K type/5M 2pcs
Oil seal / 2pcs
Plugging rod / 1pc
Plugging bushing / 1pc
Copper gasket / 1pc
Injection nozzle / 1pc
User manual / 1
