Rotary injection machine for TPR/PVC soles production

This injection moulding machine is used to produce single-colour and two-colour soles and sole sheets out of TPR and PVC. It is well received by the market since as many as 12 sets of molds have been installed, meaning that 12 pairs of shoes can be produced at a time.

Specifications
Item Unit EB220R EB224R
Raw materials TPR, PVC
Stations 20 24
Screw diameter mm 75 50
Maximum injection volume CC 880 390
Injection pressure MPa 70
Clamping force Tons 60*2
Yield Pairs/hour 150-280 150-300
Mould space mm 400*220*190
Heating power kW 9 6.5
Total power kW 50.5
Dimensions cm 920×420×220 980×480×220
Machine weight Tons 14.6 15.8
Oil consumption L 600*2
Optional
  • Water cooling system

  • Energy-saving hydraulic servo control system

  • Suction machine

  • Mould manipulator

System flow chart
Features
  • Block cylinder is designed with special structure, providing heat insulation and leakage resistance performance;
  • PLC control system with industrial human-machine interface (HMI) is user-friendly;

    • PLC system

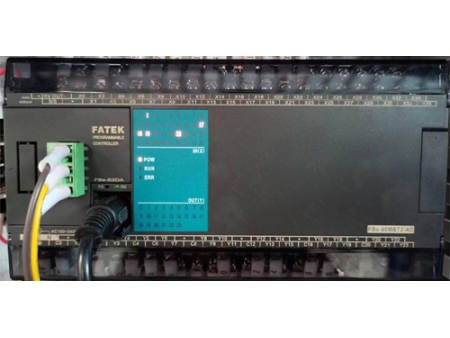

    • PLC

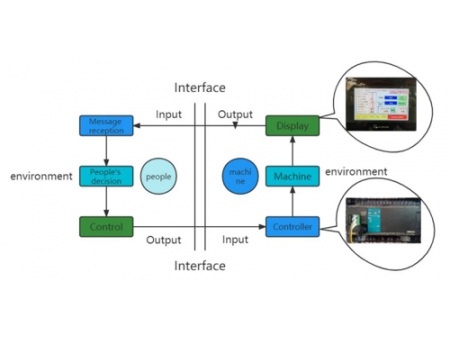

    • HMI interface

  • Multiple safety measures are put into use, including:

    • Safety sign

    • Safety signSafety door with photoelectric switch

    • Emergency stop button

    • Rotary table anti-lifting switch

  • Hydraulic system is installed to ensure stable and safe operation;

    • 2PN mould clamping hydraulic oil circuit

    • Proportional injection hydraulic oil circuit

  • Servo motor and automatic mould manipulator;

    • Servo system

Auxiliary Equipment
  • Cooling tower: it cools down hydraulic oil and raw materials before they are fed into the injection moulding machine;

  • Crusher: it recycles used materials;

  • Vertical mixer: it mixes materials with different colours;

Accessories and Components
Parts list
Toolbox / 1pc
Allen key 1.5-10 9 sets
Open-end wrench 6-24 8 sets
Phillips screwdriver (small) / 2pcs
Phillips screwdriver (large) / 1pc
Adjustable wrench 250mm 1pc
Heating ring Ø90*80 mm 1pc
Heating ring Ø65*50 mm 1pc
Heating ring Ø120*80 mm 1pcs
Heating ring Ø70*50 mm 1pc
Heating rod Ø15.8*100 mm 2pcs
Proximity switch Ø 25*25mm 1pc
Proximity switch Ø 12*12mm 1pc
Thermoelectric coupling K type/5M 2pcs
Oil seal / 2pcs
Plugging rod / 1pc
Plugging bushing / 1pc
Copper gasket / 1pc
Injection nozzle / 1pc
User manual / 1
