Aluminum Can Spray Washing & Rinsing Machine
Description
The QXC01 aluminum can spray washing& rinsing machine is also called the can washing machine which is the dedicated matching equipment of the aluminum can manufacturing plant. It is used for the internal and external cleanness of the body of the cylindrical shape. This machine is fully automatic equipment. Its in and out of the can, cleanness and drying are all automatic. Every spray is controlled by independent water pump and the water spray pressure is very high. The first and the second cleaning contains cleaning agent and then there are 3 times rinsing. The last part is the independent pure water spray for the final cleaning. All of the processes are for the purpose of complete cleaning. Finally, the aluminum can is driven by the connecting rod to change its direction from horizon to vertical and then enter the drying oven over the wash tank. The circularly heated air dries the aluminum can completely. The QXC01 aluminum can spray washing & rinsing machine can both be connected with other equipment and be used independently.
| Applicable can diameter | φ22-φ45mm, φ35-φ55mm, φ45-φ66mm |
| Maximum applicable can length | 250mm |
| Production speed | 100-120/min |
| Motor power/total power | 5.5KW 1.5KW/101.54KW |
| Dimensions | 6300*2946*3850mm |
| Net weight | 8T |
| Drying temperature | 150℃-180℃ |
- The aluminum can spray washing & rinsing machine adopts spray to clean the aluminum cans, which is complete and fast.
- The sink of the aluminum can immersing & rinsing machine and its outer frame and some other parts all adopt high quality stainless steel so that they have great corrosion resistance. You can adjust the water temperature according to the washing effect.
- The circulation fan can send the air to the work area for circulating heating. The internal temperature of the heating zone is controlled by the temperature controller. You can set the temperature you need freely according to the season and weather changes.
- This aluminum can spray machine saves water. It has five independent water tank which can use water cyclically and the dirty water overflows automatically.
- Stainless steel sink

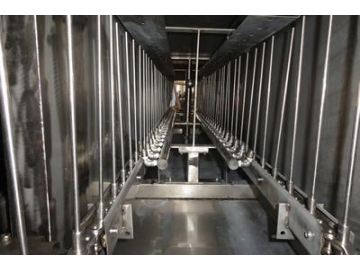

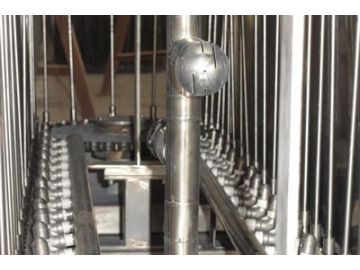

- Internal sprinkler system
