SHO-SP18 Medical Imaging
Portable digital radiography unit with laser collimator

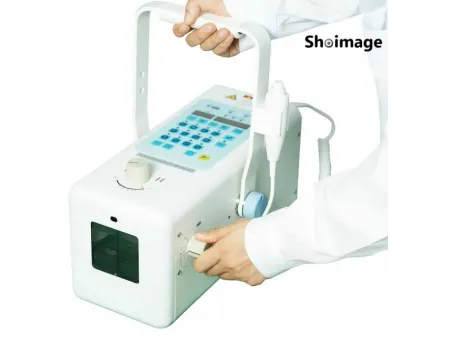

MINI Portable X-Ray Machine
Request a Quote
The MINI portable X-ray machine is designed for maximum mobility, giving you a reliable imaging solution wherever you need it. With a 1.8kW ultra-high-frequency generator and a maximum tube voltage of 90kV, it provides clear, accurate imaging for chest and limb examinations. Its built-in laser collimator ensures precision, making it a great choice for emergency medical services and outdoor diagnostics.
Specifications
- Rated Output Power: 1.8 kW
- kV Range: 40-90 kV
- mA Range: 2-40 mA
- mAs Range: 0.1-16 mAs
- Exposure Time Range: 0.01- 8 s
- Operating Frequency: ≥ 300 kHz
- Power Supply: 100-240 VAC, Output: 32V DC / 8A
- Accessories: Handheld exposure switch, remote exposure control
- Charging Time: 3 hours
- Battery Life: Up to 300 exposures per full charge at rated power
- Machine Dimensions (L×W×H): 345×157×177 mm
- Net Weight: 12 kg
X-Ray Imaging
Applications
The following are the diverse applications of the MINI portable X-ray machine across various medical and veterinary fields:
- Emergency room
- Orthopedics
- Physical examination
- Field training
- Operating room
- ICU
- Ambulance
- Animal husbandry
- Sports medicine
- Nursing home
- Rural medical visits
- Pet hospital
If you need a lightweight, portable X-ray machine that fits your workflow, contact us today to learn more about this X-ray apparatus!
