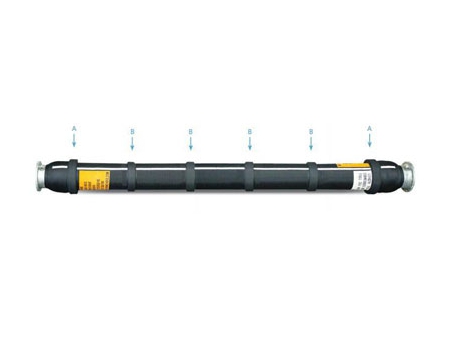

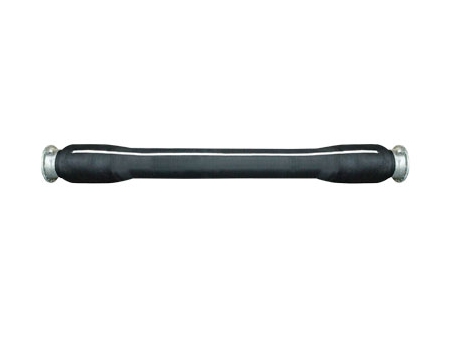

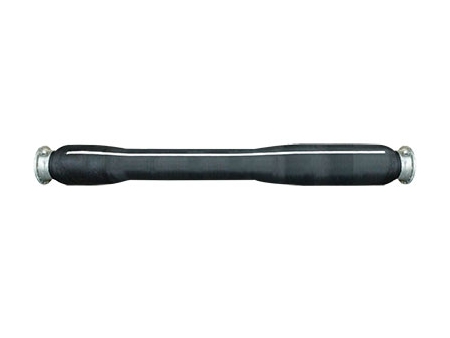

Dock Oil Hose / STS Hose (Ship-to-Ship Oil Transfer Hose)
The dock hose is a multi-purpose hose product specially designed for suction and discharge applications. This suction and discharge hose is suitable for connecting with tankers, barges, storage tanks, etc. to transfer petroleum product. Ship to shore transfer or ship to ship transfer can be easily realized using the dock hoses.
Specifications
Tube: NBR
Reinforcement: high tensile strength fabrics with helix steel wire
Cover: NBR, CR
Working temperature: -20℃~82℃
Safety factor: 5:1
Features
1. The dock hose comes with rugged and highly flexible design.
2. Hose cover is resistant to weathering, cutting, oil and corrosion.
3. The marine hose is suitable for transporting fluids with aromatic content higher than 50%.
Technical Parameters
| Size Inch | Inner Diameter mm | Working Pressure bar | Length m |
| 6 | 150 | 10~20 | 6~50 |
| 8 | 200 | 10~20 | 6~50 |
| 10 | 250 | 10~20 | 6~50 |
| 12 | 300 | 10~20 | 6~12 |
| 16 | 400 | 10~20 | 6~12 |
| 20 | 500 | 10~20 | 6~12 |
Note: Specifications can be made upon request.
Certificates

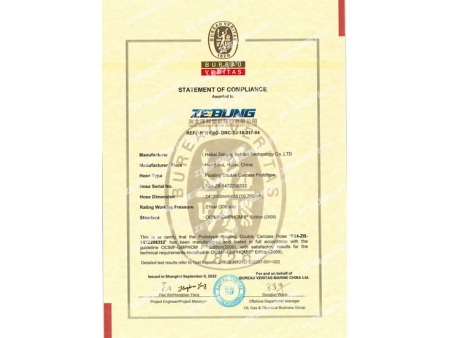

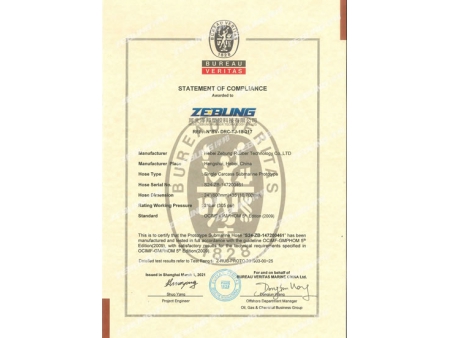

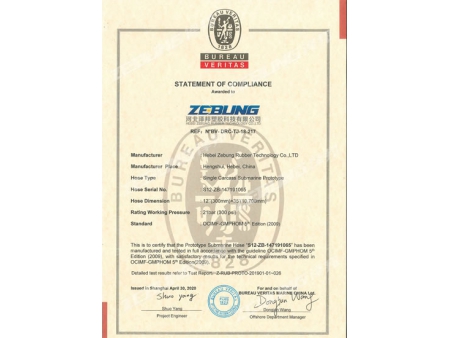

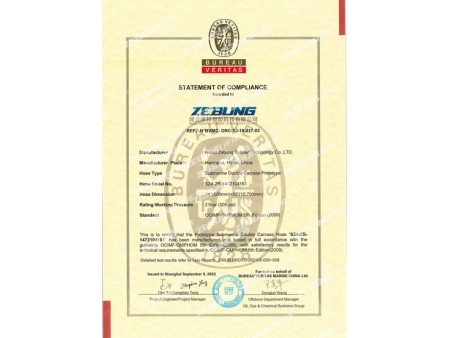

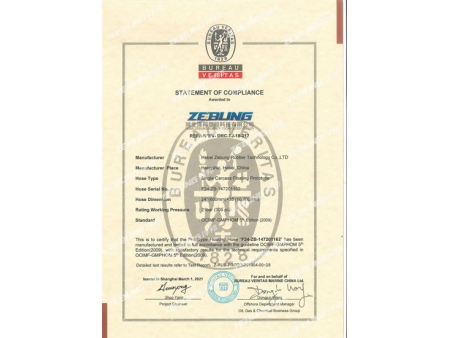

- BV Test Report (Single Carcass Floating Prototype-DN300mm)
- BV Test Report (Single Carcass Floating Prototype-DN600mm)
- BV Test Report (Single Carcass Submarine Prototype-DN300mm)
- BV Test Report (Single Carcass Submarine Prototype-DN600mm)
- BV Test Report (Submarine Double Carcass Prototype-DN600mm)
- BV Test Report (Floating Double Carcass Prototype-DN600mm)
