Hydraulic Oil Discharge Hose
The Hydraulic oil discharge hose plays a vital role in transporting hydraulic oil and is widely used in the return oil systems of machinery, construction vehicles, and various industrial sectors. Its versatile applications extend to chemical, petroleum, and liquid transportation industries. Renowned for its robust functionality, elevated safety standards, and broad adaptability, this hose stands as a reliable and indispensable product in its field, ensuring efficient fluid transfer and operational integrity.
Basic Information- Inner tube: Nitrile Butyl rubber compound (tensile strength ≥7MPa)
- Reinforcement: Single/double layer textile cord braided or textile cord wrapped
- Outer cover: Butyl Chloroprene rubber compound (tensile strength ≥9MPa)
- Working temperature: -20°C to 80°C
- Safety factor: 3:1
- Color: Available in various colors such as black, red, etc.

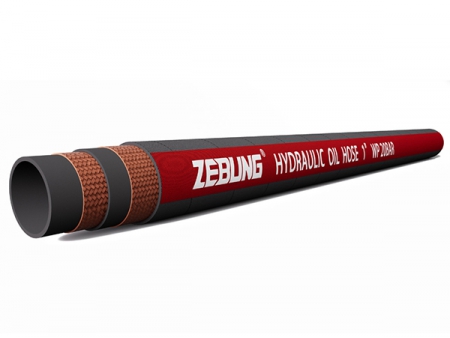

1. Hydraulic oil delivery hose (reinforcement layer adopts weaving process)
Excellent oil resistance: The inner tube exhibits outstanding resistance to oil, allowing for long-term transportation of hydraulic oil without degradation.
High Strength Outer Cover: The outer cover boasts high strength and exceptional abrasion resistance, ensuring reliable performance under various working conditions.
- Machinery: Used in hydraulic systems of various machinery and equipment for fluid transmission and power generation.
- Automotive: Applied in automotive hydraulic systems for power steering, braking, and transmission control.
- Construction: Utilized in construction machinery such as excavators, loaders, and cranes for hydraulic fluid transfer.
- Agriculture: Employed in agricultural machinery such as tractors and harvesters for hydraulic operations in lifting, steering, and control systems.
Technical Parameters
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Weight | Max. Length | |||
| mm | inch | mm | bar | psi | bar | psi | kg/m | m | |
| HODB006-300 | 6 | 1/4" | 14 | 20 | 300 | 60 | 900 | 0.17 | 100 |
| HODB008-300 | 8 | 5/16" | 16 | 20 | 300 | 60 | 900 | 0.21 | 100 |
| HODB010-300 | 10 | 3/8" | 18 | 20 | 300 | 60 | 900 | 0.24 | 100 |
| HODB013-300 | 13 | 1/2" | 22 | 20 | 300 | 60 | 900 | 0.34 | 100 |
| HODB016-300 | 16 | 5/8" | 26 | 20 | 300 | 60 | 900 | 0.46 | 100 |
| HODB019-300 | 19 | 3/4" | 29 | 20 | 300 | 60 | 900 | 0.53 | 100 |
| HODB022-300 | 22 | 7/8" | 34 | 20 | 300 | 60 | 900 | 0.65 | 100 |
| HODB025-300 | 25 | 1" | 37 | 20 | 300 | 60 | 900 | 0.71 | 100 |
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.

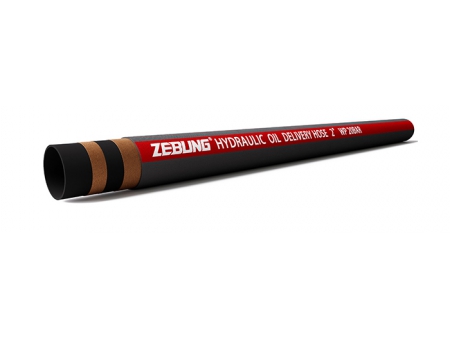

2. Hydraulic oil delivery hose (spiral reinforcement)
The Hydraulic oil delivery hose, with its reinforcement layer adopting a wrapping process, boasts an outer cover characterized by high strength and exceptional abrasion resistance. This design ensures its reliability and longevity even when subjected to diverse operational environments and conditions, making it a dependable choice for transporting diesel and gasoline.
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Weight | Max. Length | |||
| mm | inch | mm | bar | psi | bar | psi | kg/m | m | |
| HOD019-150 | 19 | 3/4" | 30.4 | 10 | 150 | 30 | 450 | 0.62 | 61 |
| HOD025-150 | 25 | 1" | 36.4 | 10 | 150 | 30 | 450 | 0.77 | 61 |
| HOD032-150 | 32 | 1-1/4" | 43.8 | 10 | 150 | 30 | 450 | 0.95 | 61 |
| HOD038-150 | 38 | 1-1/2" | 50.8 | 10 | 150 | 30 | 450 | 1.21 | 61 |
| HOD045-150 | 45 | 1-3/4" | 57.8 | 10 | 150 | 30 | 450 | 1.40 | 61 |
| HOD051-150 | 51 | 2" | 63.8 | 10 | 150 | 30 | 450 | 1.56 | 61 |
| HOD064-150 | 64 | 2-1/2" | 77.8 | 10 | 150 | 30 | 450 | 2.19 | 61 |
| HOD076-150 | 76 | 3" | 89.8 | 10 | 150 | 30 | 450 | 2.56 | 61 |
| HOD089-150 | 89 | 3-1/2" | 102.8 | 10 | 150 | 30 | 450 | 2.95 | 61 |
| HOD102-150 | 102 | 4" | 116.6 | 10 | 150 | 30 | 450 | 3.34 | 61 |
| AD019-300 | 19 | 3/4" | 30.4 | 20 | 300 | 60 | 900 | 0.62 | 61 |
| AD025-300 | 25 | 1" | 36.8 | 20 | 300 | 60 | 900 | 0.77 | 61 |
| AD032-300 | 32 | 1-1/4" | 45.8 | 20 | 300 | 60 | 900 | 1.20 | 61 |
| AD038-300 | 38 | 1-1/2" | 51.8 | 20 | 300 | 60 | 900 | 1.39 | 61 |
| AD045-300 | 45 | 1-3/4" | 58.8 | 20 | 300 | 60 | 900 | 1.60 | 61 |
| AD051-300 | 51 | 2" | 64.8 | 20 | 300 | 60 | 900 | 1.79 | 61 |
| AD064-300 | 64 | 2-1/2" | 78.6 | 20 | 300 | 60 | 900 | 2.19 | 61 |
| AD076-300 | 76 | 3" | 91.4 | 20 | 300 | 60 | 900 | 2.75 | 61 |
| AD089-300 | 89 | 3-1/2" | 106.4 | 20 | 300 | 60 | 900 | 3.53 | 61 |
| AD102-300 | 102 | 4" | 119.4 | 20 | 300 | 60 | 900 | 4.00 | 61 |
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
