Roll former for producing metal carrier of vulcanized rubber seal

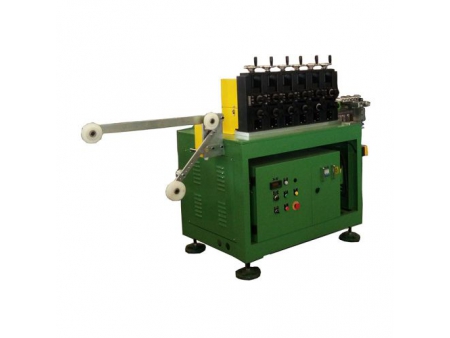

JYC-X-I (Coupling structure)

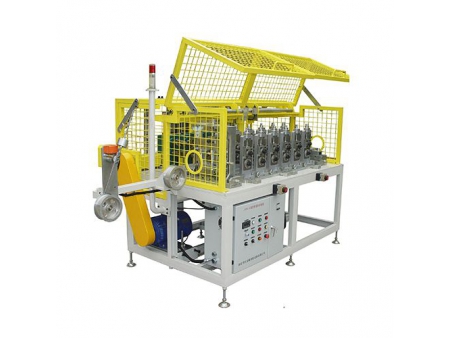

  • JYC-X-Ⅱ (Gantry structure)

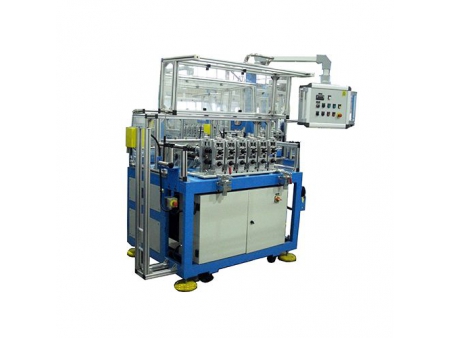

  • JYC-X-Ⅲ (Coupling structure)
  • Pre-forming machine is a high-precision and high-configured metal carrier processing equipment commonly used for the initial shaping of metal carriers. Depending on the forming complexity of the products, different sets of forming mechanisms can be selected. It can process various shapes such as U-shaped profile, V-shaped profile, L-shaped profile, C-shaped profile, and can also be customized for other shapes as required.

    Features

    • The equipment has simple adjustment of working parameters, and easy installation and removal of fixtures.
    • High forming accuracy, with radial runout of the transmission shaft ≤ 0.03mm and linear deviation ≤ 0.03mm.
    • The inlet is equipped with metal carrier leveling rollers and guides, and the outlet is equipped with metal carrier correction mechanisms.
    Pre-Forming Machine (Gantry Structure)
    Model
    JYC-X-II
    Dimensions L2855mm×W645mm×H1400mm (subject to final design drawings)
    Power Transmission 1 set of 5.5kW motor reducer drives two sets of gears vertically, with a gear reduction ratio of 1:1, and two sets of power output from the upper and lower gears
    Structure The power shaft is connected to 6 sets of forming mechanisms through universal joint couplings.
    Forming Mechanism 6 sets of forming mechanisms without forming wheels, with a gantry structure. Both the upper and lower forming wheel shafts are powered, and the material of the upper and lower shafts is 40Cr, high-frequency quenched.
    Fixture Mold 6 sets of forming mechanisms (without forming wheels) installed on a 20mm thick base plate. The base plate is equipped with ball bearings for easy replacement, and the upper shaft adjustment is mechanically and digitally displayed.
    Adjustment Range The center adjustment range of the shaft is 70mm to 110mm.
    Pre-Forming Machine (Coupling Structure)
    Model
    JYC-X-I
    JYC-X-III
    Dimensions L1500×W1000×H2000mm (subject to final design drawings) L2300×W1000×H2000mm (subject to final design drawings)
    Motor Power 5.5kW 7.5kW
    Production Speed 3~30m/min;
    Number of Forming Mechanisms 9 12~14
    Adjustment Range of Vertical Axis Spacing 100~130mm 100~130mm
    Transmission Ratio of Vertical Axis 1/1 1/1.2
