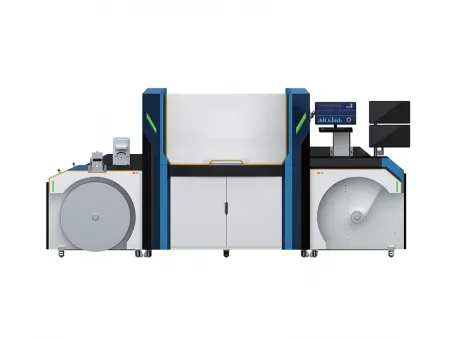

Seven-Color Digital Label Printing Machine
Request a Quote
LQ-MD 330HB
Industrial label printer
Designed to meet the diverse needs of end customers, brands, and label printing companies, the seven-color digital label printing machine features dual-sided printing capabilities. This label printer is equipped with a fully automatic integrated program, allowing the control display panel to manage operations, tension, speed, and other functions for each module unit, including precise overprinting control. Our label digital printer supports seamless job changes, boosting production efficiency and reducing printing costs. Online support and monitoring are available to minimize manual intervention and ensure easy, quick daily maintenance.
Applications
Specifications
Feeding Width | 330mm |
Print Speed | 50m/min-75m/min |
Substrate Thickness | 20-400μm (suitable for label materials, paper and film; other materials need to be tested) |
Color | 5-7 colors, CMYK white, orange, violet |
Digital Print Engine | |
Image Width | Max. 216/314mm×10m |
Printing Method | UV-electric piezo, DOD inkjet printing |
Image Resolution | 600×600,600×1200dpi, physical resolution@4-level gray scale |
File Format | PDF, PDFNT, TIFF, JPEG, BMP or other common file formats |
Ink Curing | Color components UV-LED pre-cured, fully cured UV-LED (with water cooler) |
Automatic Upgrade Components | Color overprint kit Printhead automatic cleaning component Remote operation and maintenance, fault diagnosis components Reserved access ports In-line print quality inspection component |
Multifunctional Function System | |
Unwind Unit | Lifting type Max. diameter: 700mm (core diameter 76mm) Standard deviation correction, dust removal, corona unit |
Rewind Unit | Single rewinding Max. diameter: 700mm (core diameter 76mm) |
Optional Parts | Data matching options for duplex printing, flexo printing unit, cold foiling, lamination, traditional die cutting, slitting, stripping, double rewinding |
Dimensions (L×W×H) | 4200×1900×1800mm (standard dimensions without extension option) |
Weight | About 3500kg |
Working Environment | |
Optimal Temperature | 13-62 ℃ |
Max. Temperature | 20-25 ℃ |
Ink Storage Temperature | 16-32 ℃ |
Optimum | 50%-70% dust control, the best environment for recommendation |
Features
- With the ability to produce up to seven colors and cover 92% of Pantone colors, the label printer enhances creative possibilities and work efficiency. This capability allows for vibrant and precise color printing, meeting the high standards of professional industries.
- The 7-color printing machine includes support for remote operations, maintenance, and diagnostics, along with real-time reports. Its fully upgraded design allows for simplified production processes with a one-click operation feature, making the printer user-friendly and reducing the need for extensive operator training.
- Equipped with a quality inspection device, this printer offers real-time color detection and quality control. The upgraded printing control software optimizes the production process, ensuring consistent high-quality outputs and maintaining operational excellence.
