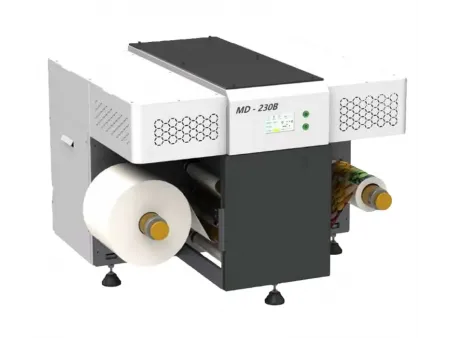

LQ-MD 230

Continuous label printing machine

This label printing machine delivers outstanding prints with a maximum resolution of 1200×1200 dpi, capable of rendering fine text and intricate images. It is suitable for a wide range of printing tasks. Unlike traditional laser and UV technologies, this label printer uses water-based dye inks with a specialized heating device, ensuring that it does not emit unpleasant odors, heat, or pollutants during operation. This makes the label printing system ideal for direct printing on food labels, ensuring safety and compliance with health standards.

Equipped with compatibility for most variable data software, this label printing equipment supports fast, continuous printing, allowing for customization of each page. With highly integrated control software, it simplifies operations and provides a cost-effective solution for customized digital printing.

Applications
  • Photographies
  • Adhesive stickers
  • Variable data labels
  • Drug labels
  • Food labels
  • Anti-counterfeit labels
Specifications
Printer Model LQ-MD 230 Color Label Printer
Printhead Printhead Model LQ-MD 214
Print Resolution 1200×600/1200×1200 dpi
Max. Print Width 214mm
Ink Tank Capacity 900ml×4 color
Ink Type Dye ink (CMYK)
Paper Requirements Paper Grammage 100-180g/m³
Applicable Materials Writing paper, coated paper, self-adhesive paper, matte paper, PET, PVC, PE, PP, etc.
Max. Paper Width 230mm
Max. Diameter of Paper Roll 300mm
Specialty Substrate Label after die-cutting
Print Speed High Speed Mode 18m/min
Resolution Mode 9m/min
Electrical Power 220V-50/60Hz
Max. Power/Standby Power 1800W/200W
Interface 4.3" industrial screen
Appearance Dimensions (L×W×H) 950×770×650mm
Net Weight 160kg
Working Environment Temperature: 15-35℃ Humidity: 50%-70%
Features

The label printer has a three-axis servo tension control system that adjusts the tension according to the paper weight. This feature ensures optimal print quality for various types of paper, enhancing consistency and precision in every print job.

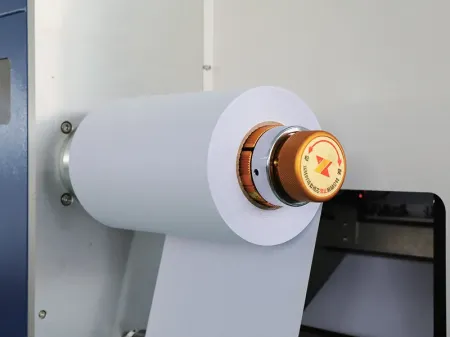

Featuring a manual expansion shaft with a marked scale, the label printing system allows for quick and easy loading and unloading of rolls. This design enhances the material handling process, significantly reducing downtime and increasing productivity.

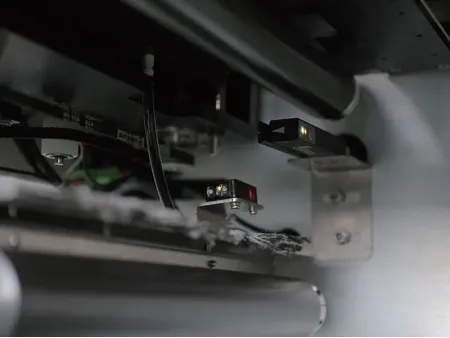

A built-in laser sensor with a learning function enables precise print positioning on labels after die-cutting. This advanced sensor also offers a counting feature, which is essential for tracking production and ensuring accuracy in high-volume print runs.


The ink supply system features a positive pressure cleaning function, making loading ink and maintaining the print heads easier. This function guarantees that the printer operates smoothly, with almost need for frequent maintenance and improving overall efficiency of the label printer.
