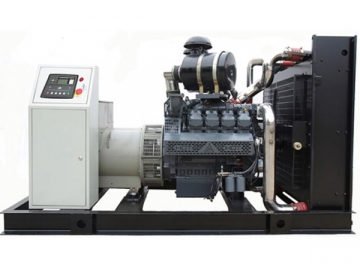

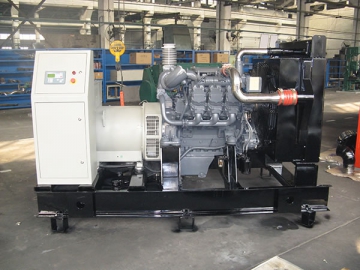

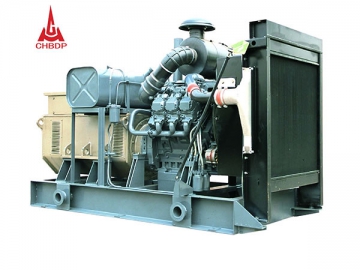

275kw DEUTZ Water-cooled Diesel Generator Sets
Request a Quote
View All: http://deutzchbdp.com
| Generator-set | Diesel Engine (DEUTZ) | Alternator (Stamford) | |||
| Model | 250GF | Model | BF6M1015C-LA G3A | Model | HCI4ES |
| Rated prime power | 250KW | Prime power | 282KW | Rated power | 260KW |
| Standby power | 275KW | Stand power | 314KW | Stand power | 400V/230V |
| Rated voltage | 400/230V | Rated speed | 1500rpm | Efficiency | 93.70% |
| Rated frequency | 50Hz | No. of Cylinder | 6 | Rated current | 505A |
| Rated currency | 451A | Bore/stroke | 132/145 | Power factor | 0.8 |
| Power factor | 0.8 | Cylinder arrangement | V | Frequency | 50Hz |
| Steady state volt deviation | ≤±1% | Fuel consumption | 205g /kwh | Protection/ insulation | IP23/H |
| Steady state frequency | ≤1.5% | Start mode | 24V electrical | Exciting way | brushless self-exciting |
| Frequency drop scope | ≤5% | Governor | electronic | Weight | 995kg |
| Phase | three phase | Aspiration type | Turbocharged inter-cooled | ||
| Base Frame | steel | Cooling way | Water cooled | ||
| Dimension (mm) | 2800×1450×1950 | Displacement | 11.906L | ||
| Weight | 3100kg | Weight | 850kg | ||
| Type | Generator Set 250GF |
| Place of Origin | China (Deutz License Manufacturer) |
| Brand Name | Deutz Engine |
| Output Capacity | 312 KVA |
| Output Power | 250 kW |
| Frequency | 50Hz/60Hz |
| Cooling Type | Water Cooled |
| Alternator | Meccalte /Stamford/or customerized |
| Optional | silent type /open type/water-proof type |
| Certification | ISO, EURO II |
