Fluidized Bed Jet Mill

Request a Quote

View All: http://millingsupplier.com

The QYF fluidized bed jet mill is widely used for the ultrafine pulverizing of talc, barite, kaolin, quartz, graphite, ceramic, farm chemicals, western medicine, traditional Chinese medicine, non-metallic minerals, positive and negative materials of the battery, fire-retardant materials, etc.

Specifications

Model	QYF-150	QYF-260	QYF-400	QYF-600	QYF-720
Production Capacity(kg/h)	5-100	50-200	80-380	200-500	400-1000
Air Consumption(m³/min)	3	6	10	20	40
Working Pressure (MPa)	0.75-0.85	0.75-0.85	0.75-0.85	0.75-0.85	0.75-0.85
Feed Particle Size(mesh)	60-325	60-325	60-325	60-325	60-325
Grinding Size(μm)	0.5-30	0.5-30	0.5-30	0.5-30	0.5-30
Installed Power(kw)	40	60	95	188	376

Compared with other similar products, our product can save 30% to 40% energy. There is no contamination to the materials, because the materials are driven by the air flow to collide with each other and crush. There is no other media involved, so no contamination is caused. Temperature inside the milling chamber will not rise, since the materials are pulverized under the condition of expanded gas.

The main pulverization involves collision among particles and the high-speed particles rarely collide with the machine wall, so there is small abrasion to the machine, which enables our product to grind materials with the Mohs hardness scale above 9.

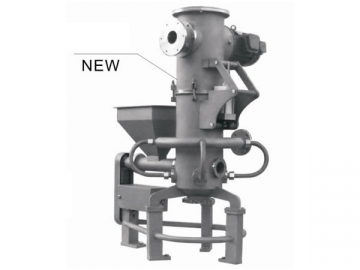

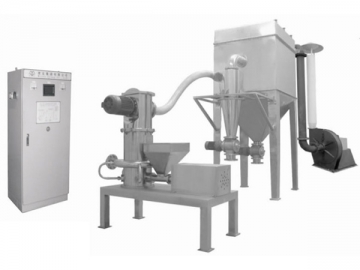

QYF Fluidized Bed Jet Mill
Patented Product, Rights Reserved

PLC Control

Easy to Dismantle and Clean

1. Raw Material
2. Finished Products
3. Milling Chamber
4.Grading Zone

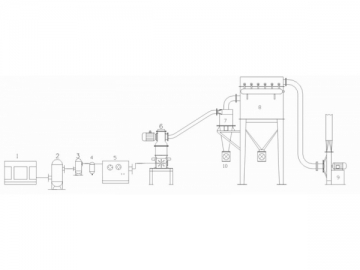

1. Air Compressor
2. Air Tank
3. Oil Remover
4. Precision Filter
5. Air Freeze Dryer
6. QYF Fluidized Bed Jet Mill
7. Cyclone Separator
8. Dust Collector
9. Draught Fan
10. Rotary Valve

Our company is a professional fluidized bed jet mill manufacturer and supplier in China. We offer a variety of products, including Horizontal Air Classifier, pump using mechanical seal, stainless steel reactor, and more.
