Cold Chain System Solution

Freezing System, Tunnel Freezer Manufacturer

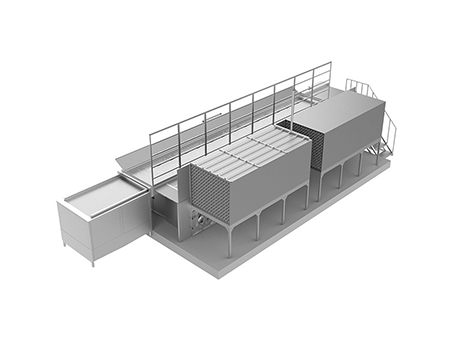

The fluidized bed freezer is used to carry out individual quick freezing of small foods, such as soft, squishy, sticky fruits and vegetables and seafood. The fluidized bed freezer is capable of freezing a variety of vegetables, fruits, shells, fish, shrimp, meat products, dairy products, cooked food and more.

Recommended Applications
  • Aquatic Products
  • Poultry Products
Parameters
Items Parameters
Model FBF-NA50RS01
Dimension 9180×5060×4900mm
Frozen products Pea
Output 5000 kg/h
Feed temperature 15℃
Discharge temperature -18℃
Energy consumption 650KW
Refrigerant R22 or other refrigerants
Freezing time 5-30min
Effective width of mesh belt 1250mm
Fan 6×18.5 KW
Installed power 115KW

Notes: The above parameters are set based on freezing of 5T peas per hour. These parameters are subject to change based on different products and processes.

Features
  • The fluidized bed freezer is equipped with a frequency converted regulating speed ventilator, adjustable air duct and porous conveyor belt, in order to ensure that different frozen foods from a stable and controllable fluid bed for the best freezing effect.
  • The full fluidized freezer is equipped with a rotary agitator, which can effectively stop the high-moisture, high-viscosity food from crowding or massing into a cluster and freezing.
  • The anti-icing system effectively prevents the freezing equipment stalling and damage caused by too much ice.
  • The porous conveyor belt uses a particular tapered air-vent design and is paired with conveyor belt cleaning equipment. This effectively avoids air vent clogging, ensuring the device runs smoothly for long periods of time.
  • The ADF air defrost system ensures continuous and efficient heat exchange of the evaporator, allowing it to work continuously.
Custom Range
  • The production capacity ranges between 1500kg/h and 12500kg/h (calculated as peas).
  • The most suitable combination of configurations is available based on customer needs.
  • Various infeed and outfeed conveyors are available according to customer requirements.
  • The freezer body can be a fully welded configuration.
  • The CIP automatic cleaning system can be chosen to efficiently clean the freezer interior.
