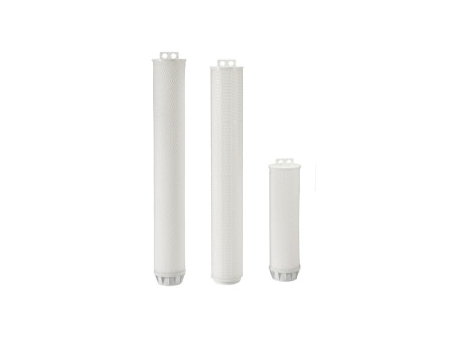

High Flow Filter Cartridge, PHFK Series

High Flow Filter Cartridge, PHFK Series
High Flow Filter Cartridge, PHFK Series
High Flow Filter Cartridge, PHFK Series
Request a Quote

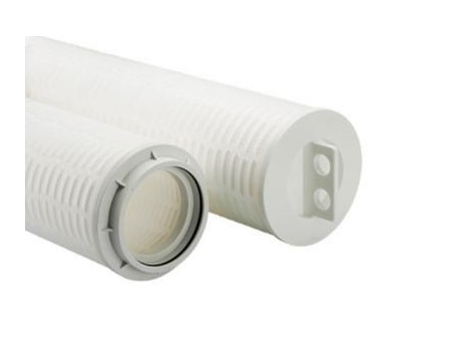

Our high flow filter cartridge is designed with a 6" (152.4mm) large diameter structure and pleated design, featuring a high-strength polypropylene support frame. With an overall polypropylene or polyester mesh exterior support, our filter cartridge allows fluid to flow from the outside to the inside.

This high flow filter cartridge offers a rating of 1~100 microns and comes in 40" and 60" sizes. It is engineered specifically for high flow applications, providing higher dirt holding and dust-holding capacity. By reducing the number of filter cartridges required, our high flow filter cartridge offers a cost-effective solution. Moreover, each cartridge can be customized to meet various filtration requirements, ensuring ideal performance in different settings.

Materials of Construction
Model Filter Medium Support/Drainage End Cap O-ring
PP filter cartridge
Pleated polypropylene depth structure Polypropylene Glass fiber reinforced polypropylene Nitrile rubber (NBR)
Ethylene-propylene rubber (EPR)
Fluoro rubber (FPM/FKM)
Silicon
GF filter cartridge
Resin bonded glass fiber/polyester Polyester Glass fiber reinforced polypropylene
Specifications
Outside Diameter 6" (152.4mm)
Inside Diameter 90mm
Length 20", 40", 60"
Micron Rating 1~100μm
Max. Operating Temperature Pleated/melt-blown polypropylene (PP): 82℃
Pleated glass fiber (GF): 121℃
Max. differential pressure (inside to outside flow) Pleated/melt-blown polypropylene (PP): 3.44bar@82℃
Pleated glass fiber (GF): 3.44bar@121℃
Change-out differential pressure Recommended change-out differential pressure: 1.5Bar@20℃
Max. change-out differential pressure: 2.5Bar@20℃
Max. flow rate 40'' filter cartridge: 70m3/h
60'' filter cartridge: 110m3/h
Applications
  • General Applications: Prefiltration for reverse osmosis systems, purification of various process water.
  • Industrial Use: Filtration for various process fluids, process water, condensate water, cooling water, wastewater treatment, and more.
  • RO protection, pretreatment for seawater desalination, and filtration of various process water.
  • Filtration for power plant condensate water, feedwater, and cooling water.
  • Filtration in the biopharmaceutical industry for raw materials, solvents, and water.
  • Filtration of various solvents, chilled water, saltwater, and other chemical agents in the petrochemical industry.
