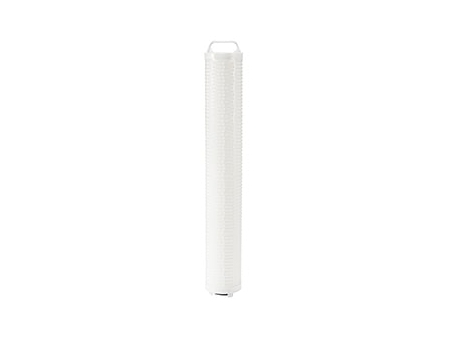

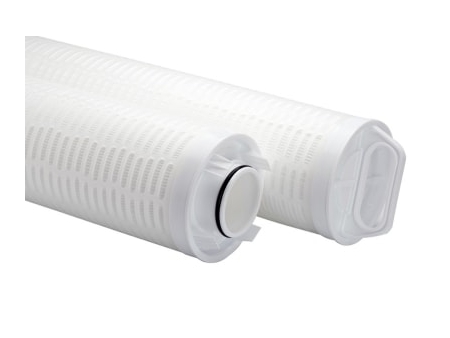

Our high flow filter cartridges feature a 6.5" (165mm) large diameter design and a pleated structure, offering an extensive filtration area and outstanding pollutant holding capacity. Ideal for different flow rate filtration systems, they offer broad chemical compatibility, making them suitable for diverse industries.

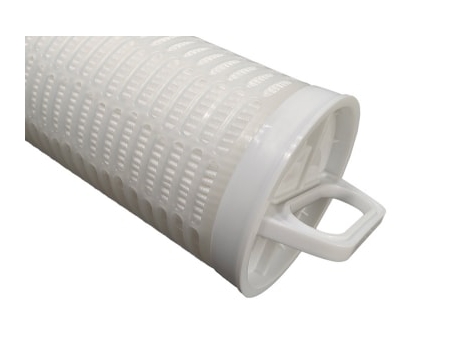

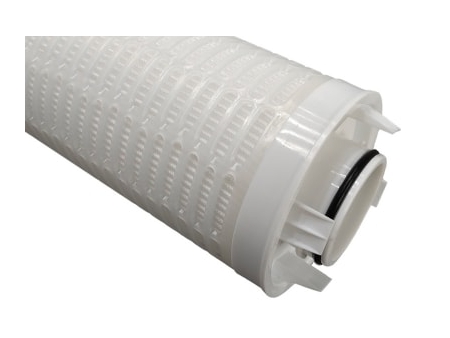

This series of filter cartridges features a robust structure, with the frame and end cap securely heat welded, reducing the risk of bypass and ensuring high filtration efficiency, superior breathability, and low resistance. Our filter cartridges come with a high-precision 1~100μm membrane, capable of intercepting 95% of particles, meeting the standards for high-security filtration.

Materials of Construction
Model Filter Medium Support/Drainage End Cap O-ring
PP
Pleated polypropylene depth structure Polypropylene Glass fiber reinforced polypropylene Nitrile Rubber (NBR)
Ethylene-propylene Rubber (EPR)
Fluoro rubber (FPM/FKM)
Silicon
GF
Resin bonded glass fiber/polyester Polyester Glass fiber reinforced polypropylene
Specifications
Outside Diameter 6.5"(165mm)
Inside Diameter 86mm
Length 20", 40", 60"
Micron Rating 1~100μm
Max. Operating Temperature Pleated/melt-blown polypropylene (PP): 82℃
Pleated glass fiber (GF): 121℃
Max. differential pressure (inside to outside flow) Pleated/melt-blown polypropylene (PP): 3.44bar@82℃
Pleated glass fiber (GF): 3.44bar@121℃
Change-out differential pressure Recommended change-out differential pressure: 1.5Bar@20℃
Max. change-out differential pressure: 2.5Bar@20℃
Max. flow rate 40'' filter cartridge: 70m3/h
60'' filter cartridge: 110m3/h
Applications
  • Prefiltration for reverse osmosis systems and pretreatment for seawater desalination.
  • Filtration for power plant condensate water.
  • Filtration in the biopharmaceutical industry for raw materials, solvents, and water.
  • Process water treatment for food and beverage processing companies.
  • Filtration in process fluids and wastewater filtration systems.
