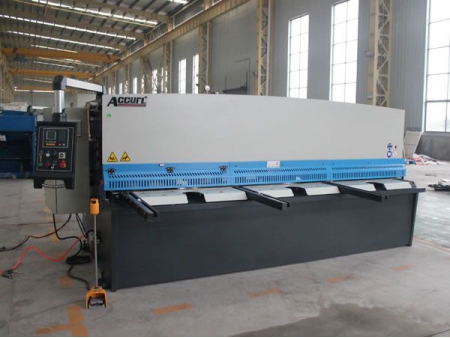

Hydraulic Swing Beam Shear
Request a Quote
ACCURL manufactures a hydraulic swing beam shear for cutting of sheet metal with thicknesses between 4mm and 6000mm. The sheet metal shear can handle the large dimensions required in tube and roll forming manufacturing lines. The hydraulic swing beam shear can also be configured for piercing and blanking. We guarantee that ACCURL can provide you with the hydraulic shear that you are looking for.
Features
- The hydraulic swing beam shear is completely streamlined and meets EU production requirements. The body construction is completed by automated robotic welders and it undergoes a stress relief process with an annealing treatment.
- The QC12Y series hydraulic shearing machines are produced with a variety of cutting lengths and capacity options.
- Equipped with a lighting-alignment function, the sheet metal cutting equipment can be quickly and easily adjusted to the right cutting angle. The stroke of the knife beam is adjusted in step-less mode.

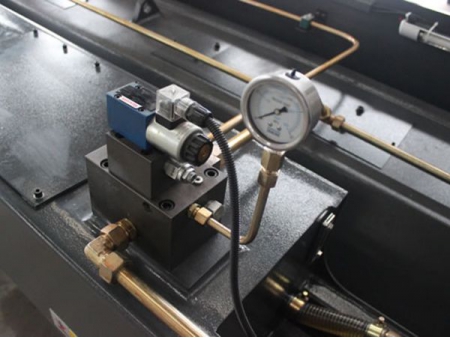

- The integrated hydraulic system leads to more reliable operation and easy maintenance. The hydraulic system is designed by Bosch-Rexroth in Germany.
- The cutting blade is hydraulically driven with a nitrogen gas accumulator.

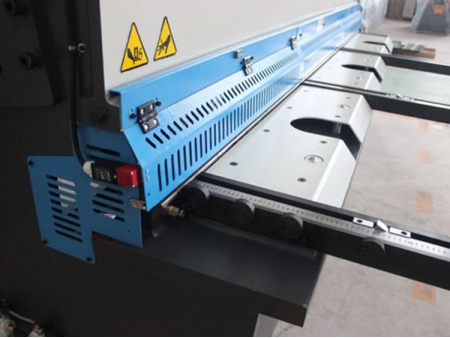

- The entire hydraulic swing beam shear conforms to CE standards including the tiltable front finger guard and optical rear safety guard.
- High quality shear blades that are easily maintained and replaced.
Standard Designs for the Hydraulic Swing Beam Shear
- Rapid and precise blade clearance adjustment with a single handle on the side frame
- Multi-edge blades for cutting aluminum, carbon steel, and stainless steel
- Cutting line illumination and wire for shadow line cutting
- Stroke counter
- Quick cutting length adjustment
- Hydraulic and electrical overload protection
- Squaring arm and front support arms
- Bed infill plates with ball transfers
- Delta inverter with ball screw and polished rod with 0.01 mm accuracy.
Better Cuttings
- Backgauge adjustment according to blade gap
- Backgauge retraction feature
- Sub-program and programming loop
- Sequence repeat function
- Auto cutting (Flying cut)
Optional Designs for the Hydraulic Swing Beam Shear

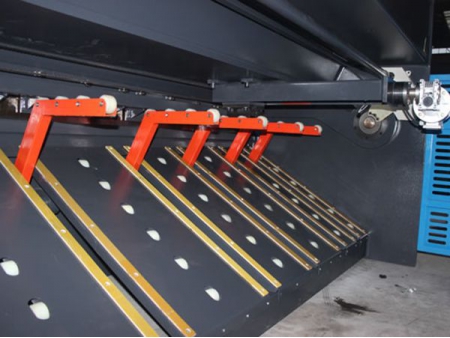

- Roller rear supporting rack
- Pneumatic sheet supporting system
- Table mounted sheet angle cutting gauge
- CNC control of plate thickness, backgauge position, and cutting length inputs
- GoTo backgauge control
Specifications
Model(AC/MS7) | QC12Y-4×2500 | QC12Y-4×3200 | QC12Y-4×4000 | QC12Y-6×2500 | QC12Y-6×3200 | QC12Y-6×4000 | QC12Y-6×6000 | |
Cut Thickness | mm | 4 | 4 | 4 | 6 | 6 | 6 | 6 |
Cut Thickness | mm | 2500 | 3200 | 4000 | 2500 | 3200 | 4000 | 6000 |
Shear Angle | Degree | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' |
SPM | min-1 | ≥ 22 | ≥ 18 | ≥ 12 | ≥ 16 | ≥ 12 | ≥ 10 | ≥ 7 |
Back Gauge | mm | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-800 | 20-800 |
Throat Depth | mm | 85 | 85 | 85 | 145 | 145 | 145 | 140 |
Main Motor | kW | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 11 |
Net Weight | kg | 3460 | 4280 | 6600 | 5140 | 6220 | 8520 | 17000 |
Outline Size (L×W×H) | mm | 3100×1430 ×1450 | 3800×1555 ×1500 | 4600×1705 ×1600 | 3150×1500 ×1600 | 3850×1600 ×1620 | 4650×1850 ×1700 | 6780×2450 ×2100 |
Model(AC/MS7) | QC12Y-8×2500 | QC12Y-8×3200 | QC12Y-8×4000 | QC12Y-8×5000 | QC12Y-8×6000 | QC12Y-12×2500 | QC12Y-12×3200 | |
Cut Thickness | mm | 8 | 8 | 8 | 8 | 8 | 12 | 12 |
Cut Thickness | mm | 2500 | 4000 | 3200 | 5000 | 6000 | 2500 | 3200 |
Shear Angle | Degree | 1°30' | 1°30' | 1°30' | 1°30' | 1°16' | 2° | 2° |
SPM | min-1 | ≥ 12 | ≥ 10 | ≥ 10 | ≥ 8 | ≥ 6 | ≥ 10 | ≥ 9 |
Back Gauge | mm | 20-600 | 20-600 | 20-600 | 20-800 | 20-800 | 20-800 | 20-800 |
Throat Depth | mm | 145 | 145 | 145 | 300 | 300 | 300 | 300 |
Main Motor | kW | 11 | 11 | 11 | 18.5 | 18.5 | 18.5 | 18.5 |
Net Weight | kg | 5900 | 10200 | 7360 | 18000 | 21800 | 9000 | 10700 |
Outline Size (L×W×H) | mm | 3180×1680 ×1700 | 3880×1830 ×1720 | 4680×1980 ×1780 | 5855×2260 ×2100 | 6880×2260 ×2100 | 3300×2030 ×1840 | 4000×2100 ×1940 |
Model(AC/MS7) | QC12Y-12×4000 | QC12Y-12×6000 | QC12Y-16×2500 | QC12Y-16×3200 | QC12Y-16×4000 | QC12Y-16×6000 | |
Plate | 12 | 8 | 16 | 16 | 16 | 16 | |
Cut Thickness | mm | 4000 | 6000 | 2500 | 3200 | 4000 | 6000 |
Cut Thickness | mm | 1°54' | 2° | 2°9' | 2° | 2° | 2° |
SPM | min-1 | ≥ 8 | ≥ 4 | ≥ 9 | ≥ 8 | ≥ 7 | ≥ 4 |
Back Gauge | mm | 20-800 | 20-1000 | 20-800 | 20-800 | 20-1000 | 20-1000 |
Throat Depth | mm | 300 | 320 | 315 | 320 | 320 | 320 |
Main Motor | kW | 18.5 | 30 | 22 | 22 | 30 | 45 |
Net Weight | kg | 13800 | 38000 | 11100 | 14300 | 19700 | 44000 |
Outline Size (L×W×H) | mm | 4800×2270 ×2000 | 6900×2800 ×2500 | 3310×2240 ×2000 | 4030×2390 ×2100 | 4820×2490 ×2460 | 7100×2900 ×2650 |
Model(AC/MS7) | QC12Y-20×3200 | QC12Y-20×6000 | QC12Y-25×2500 | QC12Y-25×3200 | QC12Y-32×2500 | QC12Y-32×3200 | |
Cut Thickness | mm | 20 | 20 | 25 | 25 | 32 | 32 |
Cut Thickness | mm | 3200 | 6000 | 2500 | 3200 | 2500 | 3200 |
Shear Angle | Degree | 2°30' | 2°30' | 3° | 3° | 3°30' | 3°30' |
SPM | min-1 | ≥ 5 | ≥ 4 | ≥ 5 | ≥ 5 | ≥ 4 | ≥ 4 |
Back Gauge | mm | 20-1000 | 20-1100 | 20-1000 | 20-1000 | 20-1000 | 20-1500 |
Throat Depth | mm | 320 | 150 | 325 | 325 | 350 | 350 |
Main Motor | kW | 37 | 55 | 37 | 37 | 45 | 45 |
Net Weight | kg | 22000 | 51000 | 20000 | 27000 | 32500 | 42100 |
Outline Size (L×W×H) | mm | 4190×2695 ×2300 | 7100×3500 ×3050 | 3450×2650 ×2800 | 4130×3100 ×2800 | 3550×3100 ×2800 | 4335×3300 ×3280 |

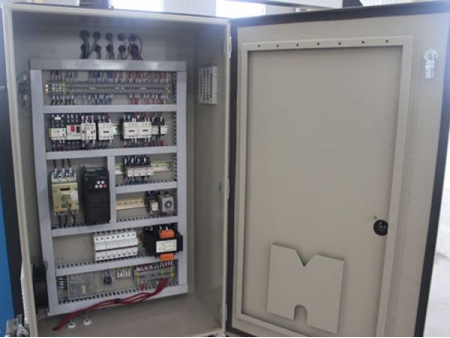

Detailed Pictures
