CNC Hydraulic Swing Beam Shear Manufacturer

CNC Hydraulic Swing Beam Shear

Request a Quote

View All: http://rt-machinetools.com/3-1-cnc-hydraulic-swing-beam-shear.html

Sheet Metal Shearing Machine

PAC Series

Sheet Metal Shearing Machine

PAC Series

PAC Series CNC hydraulic swing beam shear comes with a modern industrial style and a user-friendly ergonomic design, offering easy operation, high efficiency, stability, cost-effectiveness, and low failure rates. This sheet metal shearing machine is ideal for cutting metal sheets.

Parameters

(cutting thickness: 4 to 20mm)

Model	Max. shearing thickness (mm)	Max. shearing length (mm)	Distance between uprights	Strokes (n/min)	Backgauge stroke (mm)	Shearing angle (°)	Working table height (mm)	Throat depth (mm)	Main power (kW)	Oil volume (L)	Dimensions (LWH)(mm)	Weight (kg)
PAC-4×2500	4	2500	2710	22	600	1.5	900	100	7.5	220	310014701870	5100
PAC-4×3200	4	3200	3410	20	600	1.5	900	100	7.5	290	382015001890	6700
PAC-4×4000	4	4000	4220	15	600	1.5	900	100	7.5	290	465216601900	7800
PAC-4×6000	4	6000	6190	10	600	1.5	900	100	11	290	660021702210	16300
PAC-6×2500	6	2500	2720	20	600	1.5	900	100	7.5	220	313015701890	6100
PAC-6×3200	6	3200	3420	18	600	1.5	900	100	7.5	290	384016101910	6900
PAC-6×4000	6	4000	4220	15	600	1.5	900	100	7.5	290	463018501990	9200
PAC-6×5000	6	5000	5620	12	600	1.5	900	100	11	290	570020202160	14300
PAC-6×6000	6	6000	6230	10	600	1.5	900	100	11	290	665021702210	18300
PAC-8×2500	8	2500	2760	14	600	1.5	900	100	11	220	319016001910	6300
PAC-8×3200	8	3200	3460	12	600	1.5	900	100	11	290	390016801940	8800
PAC-8×4000	8	4000	4260	10	600	1.5	900	100	11	290	468019002010	10100
PAC-8×5000	8	5000	5255	8	600	1.5	900	100	11	290	572022702200	19500
PAC-8×6000	8	6000	6225	6	600	1.5	900	100	11	290	667022702340	23300
PAC-10×3200	10	3200	3500	10	800	1.5	900	100	15	420	396020252185	11800
PAC-10×4000	10	4000	4300	8	800	1.5	900	100	15	420	476021352220	14500
PAC-12×2500	12	2500	2755	12	800	1.5	900	100	18.5	360	323520452120	10000
PAC-12×3200	12	3200	3465	9	800	1.5	900	100	18.5	500	394522702270	13000
PAC-12×4000	12	4000	4265	7	800	1.5	900	100	18.5	500	474523202470	17000
PAC-16×2500	16	2500	2775	7	800	2.5	900	100	22	360	339021602380	12500
PAC-16×3200	16	3200	3485	6	800	2.5	900	100	22	500	410023002545	16000
PAC-16×4000	16	4000	4285	5	800	2.5	900	100	22	500	485023502545	20000
PAC-20×2500	20	2500	2785	6	800	2.5	900	100	45	540	344023502630	18500
PAC-20×3200	20	3200	3485	5	800	2.5	900	100	45	800	414024502660	22500
PAC-20×4000	20	4000	4285	5	800	2.5	900	100	45	800	494025002675	25500

Details

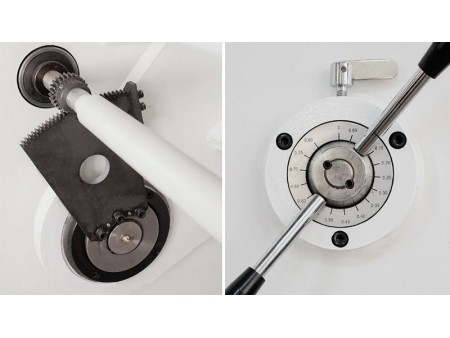

CNC shear blade gap adjustment mechanism

Achieve stepless adjustment of the blade gap through manual adjustment.
Backgauge automatic lifting structure

The backgauge can be automatically lifted to allow cutting of workpieces that exceed the stopping range of the backgauge.
Light-to-wire and pressurized material device
Hydraulic system

The integrated hydraulic system effectively reduces hydraulic oil leakage.
Novel and practical protective device

Ensures the personal safety of operators for manual cutting of small materials.
CNC control system

Switzerland Cybelec CT8
