Hydraulic Swing Beam Shear
Request a Quote
Sheet metal shearing machine for cutting sheet metal blanks with high efficiency
Sheet metal shearing machine for cutting sheet metal blanks with high efficiency
Key Specs
- Cutting thickness: 4mm-40mm
- Cutting length: 2500mm-3200mm
- Features
- Specifications
- Components

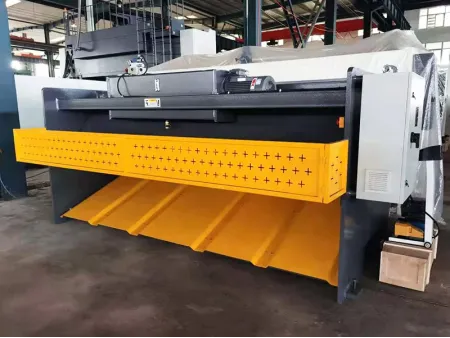

Our hydraulic swing beam shear is designed with a robust all-welded frame and a hydraulically driven shear action, enhanced by a CNC system for precise and efficient programming. This increases both time efficiency and productivity, making it ideal for shearing metal sheets used in automotive structures and various steel materials.
Features
- Robust Construction: Features heavy-duty steel construction for maximum stability and durability.

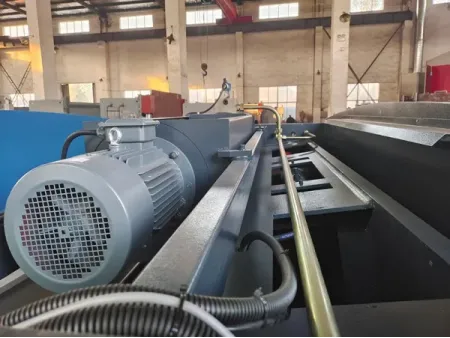

- Advanced Hydraulic System: Equipped with a German Rexroth hydraulic system, it offers low noise operation and strong power, making it suitable for high-frequency usage.
- Adjustable Stroke Rate: Allows for 16 to 20 strokes per minute with a 60-inch stroke, optimizing operational efficiency.
- Premium Quality Blades: Utilizes high-grade carbon/chrome alloy steel blades, hardened to 62 HRC. Includes a 2-edge indexable upper blade and a 2-edge indexable bottom blade for extended usability.

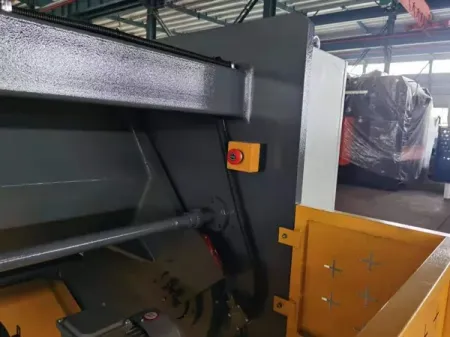

- Safety Features: Includes a foot pedal control with an emergency stop function.
Specifications
| Model | Cutting thickness (mm) | Cutting length (mm) | Cutting angle (°) | Backgauge (mm) | Power (kW) |
| 4 | 2500 | 1.5° | 20-500 | 5.5 | |
| 4 | 3200 | 1.5° | 20-500 | 5.5 | |
| 4 | 4000 | 1.5° | 20-600 | 5.5 | |
| 4 | 6000 | 1.5° | 20-800 | 7.5 | |
| 6 | 2500 | 1.5° | 20-500 | 7.5 | |
| 6 | 3200 | 1.5° | 20-500 | 7.5 | |
| 6 | 4000 | 1.5° | 20-600 | 7.5 | |
| 6 | 5000 | 1.5° | 20-800 | 7.5 | |
| 6 | 6000 | 1.5° | 20-800 | 11 | |
| 8 | 2500 | 1.5° | 20-500 | 7.5 | |
| 8 | 3200 | 1.5° | 20-500 | 7.5 | |
| 8 | 4000 | 1.5° | 20-600 | 7.5 | |
| 8 | 5000 | 1.5° | 20-800 | 7.5 | |
| 8 | 6000 | 1.5° | 20-800 | 11 | |
| 10 | 2500 | 1.5° | 20-500 | 11 | |
| 10 | 3200 | 1.5° | 20-500 | 11 | |
| 10 | 4000 | 1.5° | 20-600 | 11 | |
| 10 | 5000 | 1.5° | 20-800 | 15 | |
| 10 | 6000 | 1.5° | 20-800 | 18.5 | |
| 12 | 2500 | 2° | 20-500 | 18.5 | |
| 12 | 3200 | 2° | 20-500 | 18.5 | |
| 12 | 4000 | 2° | 20-600 | 18.5 | |
| 12 | 5000 | 2° | 20-800 | 18.5 | |
| 12 | 6000 | 2° | 20-800 | 18.5 | |
| 16 | 2500 | 2.5° | 20-500 | 18.5 | |
| 16 | 3200 | 2.5° | 20-500 | 18.5 | |
| 16 | 4000 | 2.5° | 20-600 | 18.5 | |
| 16 | 5000 | 3° | 20-800 | 18.5 | |
| 16 | 6000 | 3° | 20-800 | 22 | |
| 20 | 2500 | 3° | 20-500 | 22 | |
| 20 | 3200 | 3° | 20-500 | 22 | |
| 20 | 4000 | 3° | 20-600 | 22 | |
| 20 | 5000 | 3° | 20-800 | 22 | |
| 20 | 6000 | 3° | 20-800 | 22 | |
| 25 | 2500 | 3° | 20-500 | 37 | |
| 25 | 3200 | 3° | 20-500 | 37 | |
| 30 | 2500 | 3.5° | 20-600 | 37 | |
| 30 | 3200 | 3.5° | 20-600 | 40 | |
| 40 | 2500 | 4° | 20-500 | 75 | |
| 40 | 3200 | 4° | 20-600 | 90 |
Components
Standard Configurations

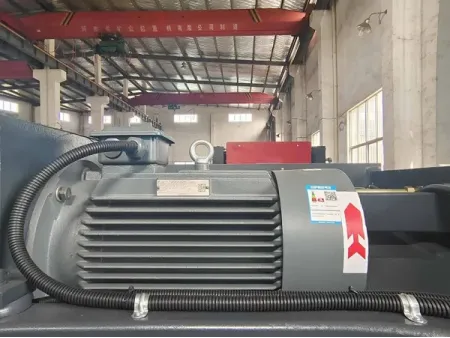

- Siemens Motor

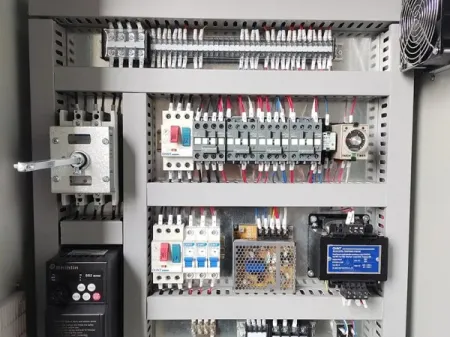

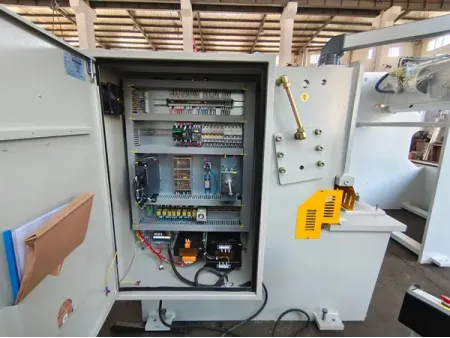

- Schneider Electrical Panel

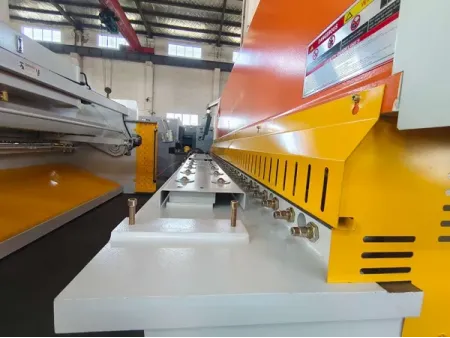

- An Integrated Worktable

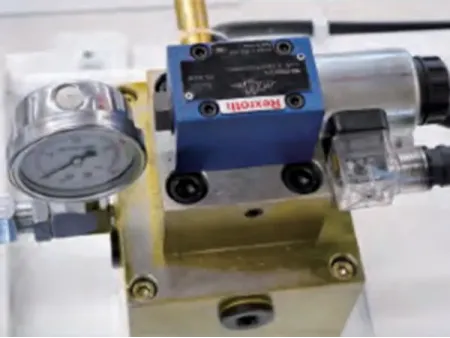

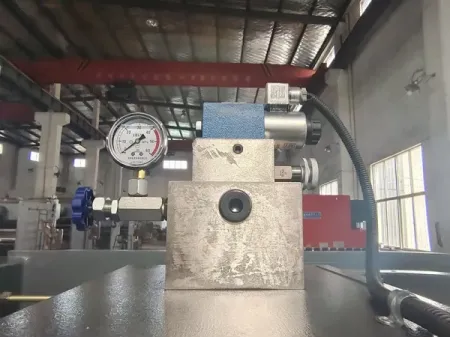

- Hydraulic Valve

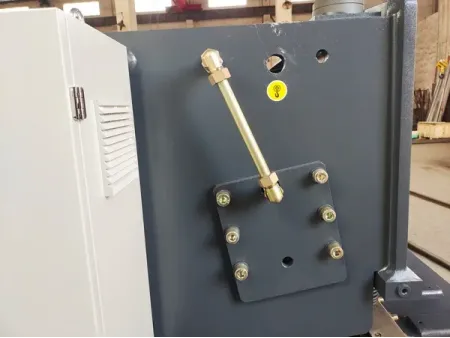

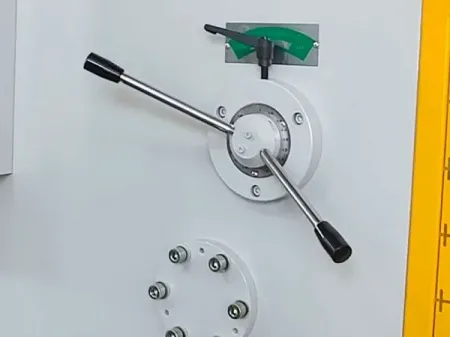

- Blade Gap Adjustment Mechanism

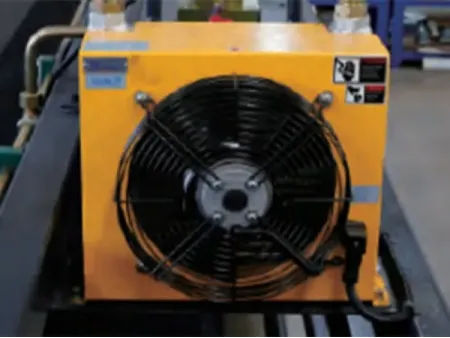

- Air Cooler
Details
Controllers

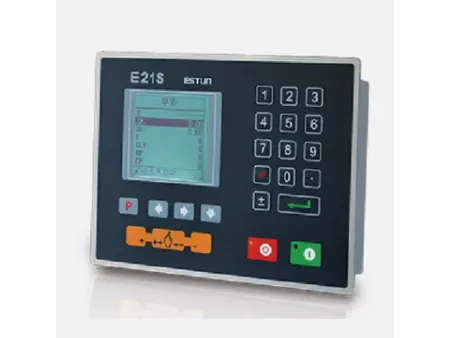

- E21S

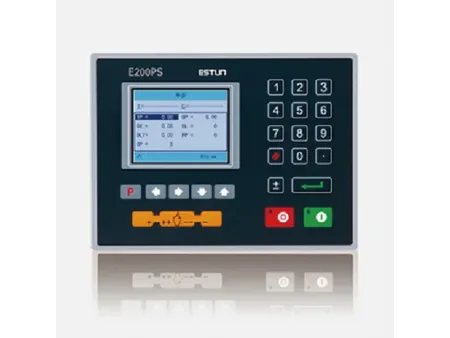

- E200PS
