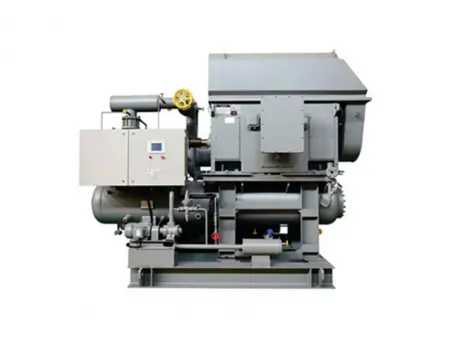

Single-Stage Screw Refrigeration Compressor Unit
Request a Quote
View All: http://moon-technology.com/1-1-open-type-single-stage-screw-refrigeration-compressor-unit.html
Open-Type Compressor
- Range of Products 12M-50L series (20 basic series)
- Volume flow 285-14000m³/h
- Refrigerant R717, R507, R404, etc.
- Control method automatic, manual, semi-automatic
- Nominal Cooling Capacity High Temperature Working Condition ( 40/ 5℃) 316/239-15523/11740kW
Medium Temperature Working Condition ( 40/-10℃) 175/161-8597/7910kW
Low Temperature Working Condition ( 40/-35℃) 62/63-3046/3095kW
Applicable Conditions
| Refrigerant | R717 | R507A |
| Discharge pressure (Mpa) | ≤1.67 | ≤1.95 |
| Suction pressure (Mpa) | -0.03 to 0.586 | |
| Oil pressure (Mpa) | 0.1 to 0.3 (higher than discharge pressure) | |
| Oil temperature (℃) | 30-65 | |
| Cooling water inlet temperature (℃) | 15-33 | |
| Cooling water flow deviation | ±10% | |
For further information about our screw refrigeration compressors, please contact us for customization.
Features
- Displacement options range from 285 m³/h to 14,000 m³/h, accommodating the demands of most industrial or commercial settings.
- Operates efficiently under high, medium, and low-temperature conditions, ensuring versatility across various industries.
- Configurations can be tailored to meet unique operational requirements, aligning with specific user needs.
- Standard automatic controls reduce manual intervention, improving efficiency and reliability.
