Boost Your Machinery's Efficiency with Our 3 Hydraulic Power Units Series

Hydraulic Solutions Since 1986

GRH focuses in the design and production of hydraulic products that can be used in various fields. Our hydraulic power units are integral to the smooth operation of engineering and agricultural machinery, material handling equipment, and even within the demanding realm of oil extraction. This versatility is a testament to our commitment to delivering hydraulic solutions that are not only robust but also adaptable to diverse industrial applications.

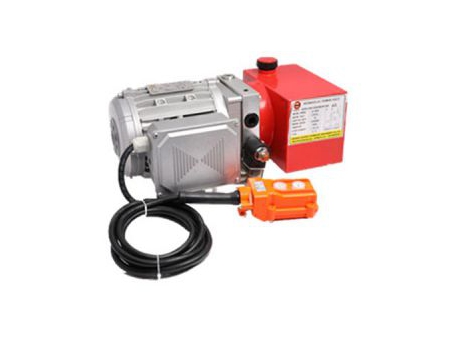

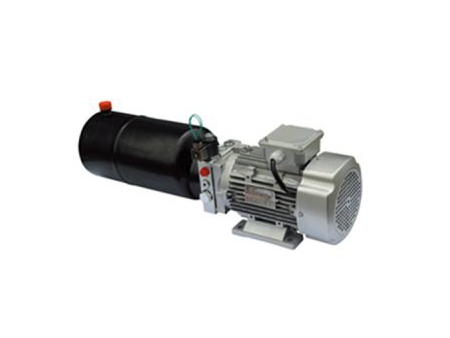

Car Lift Hydraulic Power Unit

GRH offers a wide range of power units for car lifts, combining high-pressure gear pumps, AC motors, hydraulic valves, and tanks into a cohesive unit. These power units control the start and stop of the power source and the direction of hydraulic valves, driving and managing the end mechanism. They're especially useful for dual-column car lifts, offering lifting functions and controlled descent through throttle valves.

  • Customizable to meet specific requirements
  • Compatible with complex hydraulic systems
  • Compact design, low noise, high efficiency, and energy saving
  • Made with our own high-quality core components, ensuring stable product performance
Specifications
Model Motor Pump displacement Tank capacity Pressure Mounting method Oil port L(mm)
(cc/r) (L) (MPa)
AC-F5-2.1/F-2.2/220/2850/**-10V-D 220V 2.2kW 2850RPM 50Hz 2.1 10 20 Vertical G3/8 440
AC-F5-2.7/F-2.2/220/2850/**-12V-D 2.7 12 18 545
AC-F5-2.1/F-2.2/380/2850/**-10V-D 380V 2.2kW 2850RPM 50Hz 2.1 10 20 440
AC-F5-2.7/F-2.2/380/2850/**-12V-D 2.7 12 18 545

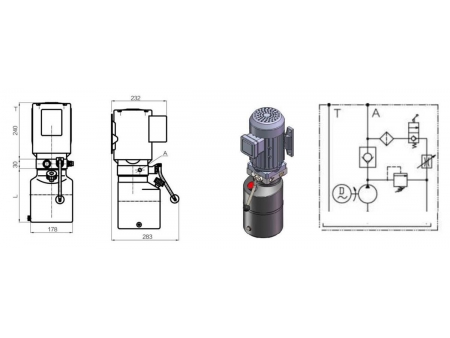

Dimensions
Applications

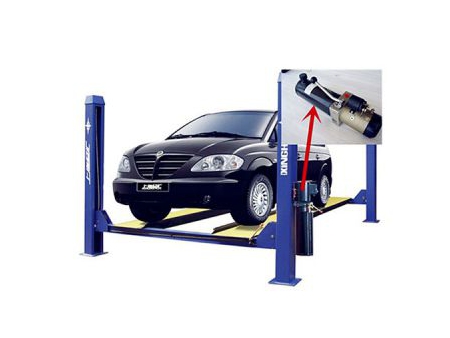

These hydraulic power unit units are used in the automotive industry, including car repair shops, residential parking systems, and mall parking systems, facilitating vehicle lifting and movement.

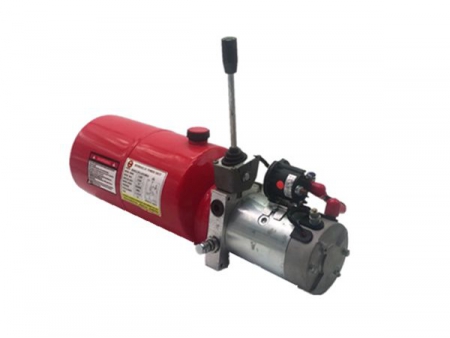

Semi-Electric Pallet Stacker Hydraulic Power Unit

The power units for semi-electric pallet stackers are a combination of high-pressure gear pumps, DC motors, stack valves, and reservoirs. They feature manual unloading valves with microswitches, allowing the stacker's lifting and lowering to be controlled by the valve handle. The descent speed is automatically controlled by an in-built pressure-compensated throttle valve. Our single-acting power units are customizable, compact, quiet, efficient, and energy-saving, and are made with our own high-quality core components for stable performance.

  • Our power units can be customized
  • Compact structure, low noise, high efficiency and energy saving
  • Stable product performance with in-house high quality core components
Specifications
Model Motor Pump displacement Tank capacity Pressure Mounting method Oil port L(mm)
(cc/r) (L) (MPa)
DC-F6-1.6/F-1.6/12/**-5HS-D 12V1.6kW2500RPM 1.6 5 20 Horizontal G3/8 270
DC-F6-2.1/F-1.6/12/**-6HS-D 2.1 6 300
DC-F6-2.1/F-2.2/24/**-6HS-D 24V2.2kW2500RPM 2.1 6 300
DC-F6-2.6/F-2.2/24/**-8HS-D 2.6 8 370

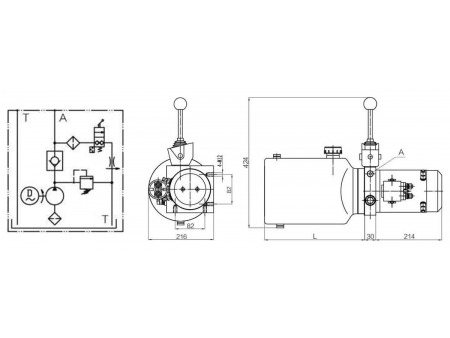

Dimensions
Applications

Ideal for use in dock warehouses, industrial warehouses, agricultural product storage, supermarkets, and construction sites, these hydraulic power units are perfect for material handling systems like hydraulic systems in pallet stackers and aerial work platforms.

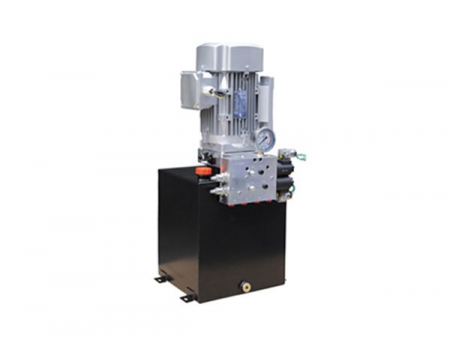

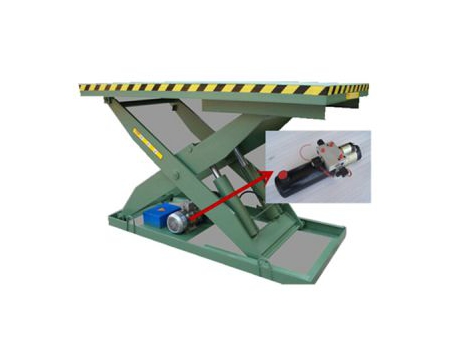

Scissor Lift Hydraulic Power Unit
Applications

These power units are designed to efficiently operate in various industrial and logistical settings, providing reliable hydraulic solutions for lifting and moving tasks.

Specifications
Model Motor Pump displacement (cc/r) Tank capacity (L) Pressure (MPa) Mounting method Oil port
AC-F29-2.1/F-2.2/220/2850/**-20V-C 220V 2.2kW 2850RPM 50Hz 2.1 20 20 Vertical G1/4
AC-F29-2.1/H-3.0/220/2850/**-20V-C 220V 3.0kW 2850RPM 50Hz 26
AC-F29-2.1/G-2.2/380/2850/**-20V-C 380V 2.2kW 2850RPM 50Hz 22
AC-F29-2.1/H-3.0/380/2850/**-20V-C 380V 3.0kW 2850RPM 50Hz 28

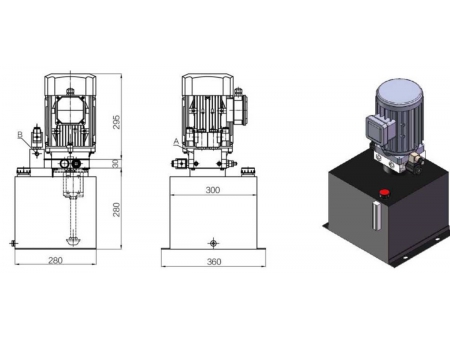

Dimensions
