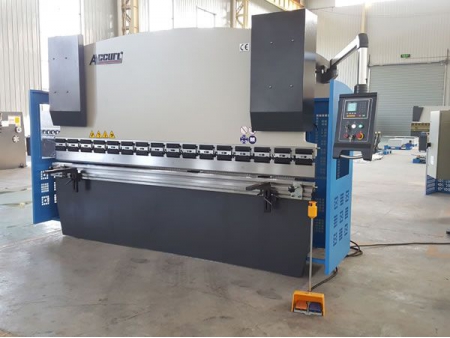

Press Brake, WC67Y Series Sheet Metal Bending Machine
Request a Quote
Equipped with a NC system and multi-step programs, this metal bending machine supports automatic operation as well as continuous positioning, which means that the back gauge and side block positions are automatically adjusted. With the use of a counting system, the number of processed workpieces is displayed in real time. For a further improved performance, the back gauge uses a ball screw transmission to ensure the positioning accuracy, with the position continuously recorded in the event of a power failure.
Technical Parameters
Model | Nominal force (KN) | Table length (mm) | Distance between frames (mm) | Throat depth (mm) | Ram stroke (mm/min"1) | Max. open height(mm) | Motor | Dimensions LxDxH(mm ) |
Power | ||||||||
(KW) | ||||||||
40T/2200 | 400 | 2200 | 1600 | 260 | 100 | 320 | 4 | 2200x1200x1910 |
40T/2500 | 400 | 2500 | 1900 | 260 | 100 | 320 | 4 | 2500x1200x1910 |
50T/2500 | 500 | 2500 | 1900 | 260 | 100 | 330 | 5.5 | 2500x1260x2000 |
63T/2500 | 630 | 2500 | 1900 | 280 | 120 | 330 | 5.5 | 2500x1300x2210 |
63T/3200 | 630 | 3200 | 2600 | 280 | 120 | 330 | 5.5 | 3200x1300x2210 |
80T/3200 | 800 | 3200 | 2600 | 300 | 120 | 360 | 7.5 | 3200x1400x2300 |
80T/4000 | 800 | 4000 | 3100 | 300 | 120 | 360 | 7.5 | 4000x1400x2300 |
100T/2500 | 1000 | 2500 | 1900 | 320 | 120 | 380 | 7.5 | 2500x1500x2400 |
100T/3200 | 1000 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 3200x1500x2400 |
100T/4000 | 1000 | 4000 | 3100 | 320 | 120 | 380 | 7.5 | 4000x1500x2400 |
125T/3200 | 1250 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 3200x1550x2500 |
125T/4000 | 1250 | 4000 | 3100 | 320 | 120 | 380 | 7.5 | 4000x1550x2500 |
160T/3200 | 1600 | 3200 | 2550 | 340 | 200 | 460 | 11 | 3200x1650x2700 |
160T/4000 | 1600 | 4000 | 3050 | 340 | 200 | 460 | 11 | 4000x1650x2700 |
160T/5000 | 1600 | 5000 | 3950 | 340 | 200 | 460 | 11 | 5000x1750x3100 |
160T/6000 | 1600 | 6000 | 4950 | 340 | 200 | 460 | 11 | 6000x1800x3200 |
200T/3200 | 2000 | 3200 | 2600 | 360 | 200 | 460 | 15 | 3200x1950x2800 |
200T/4000 | 2000 | 4000 | 3100 | 360 | 200 | 460 | 15 | 4000x1950x2800 |
200T/5000 | 2000 | 5000 | 4000 | 360 | 200 | 460 | 15 | 5000x1950x3000 |
200T/6000 | 2000 | 6000 | 5000 | 360 | 200 | 460 | 15 | 6000x2000x3200 |
250T/3200 | 2500 | 3200 | 2600 | 400 | 250 | 460 | 18.5 | 3200x2000x3200 |
250T/4000 | 2500 | 4000 | 3100 | 400 | 250 | 460 | 18.5 | 4000x2000x3400 |
250T/5000 | 2500 | 5000 | 4000 | 400 | 250 | 460 | 18.5 | 5000x2000x3400 |
250T/6000 | 2500 | 6000 | 5000 | 400 | 250 | 460 | 18.5 | 6000x2000x3400 |
300T/3200 | 3000 | 3200 | 2600 | 400 | 250 | 520 | 22 | 3200x2000x3400 |
300T/4000 | 3000 | 4000 | 3100 | 400 | 250 | 520 | 22 | 4000x2000x3450 |
300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 520 | 22 | 5000x2000x3450 |
300T/6000 | 3000 | 6000 | 5000 | 400 | 250 | 520 | 22 | 6000x2000x3450 |
350T/4000 | 3500 | 4000 | 3100 | 400 | 250 | 520 | 22 | 4000x2080x3450 |
350T/5000 | 3500 | 5000 | 4000 | 400 | 250 | 520 | 22 | 5000x2080x3450 |
350T/6000 | 3500 | 6000 | 5000 | 400 | 250 | 520 | 22 | 6000x2080x3450 |
400T/4000 | 4000 | 4000 | 3100 | 400 | 300 | 560 | 30 | 4000x2180x3500 |
400T/5000 | 4000 | 5000 | 4000 | 400 | 300 | 560 | 30 | 5000x2180x3500 |
400T/6000 | 4000 | 6000 | 5000 | 400 | 300 | 560 | 30 | 6000x2180x3800 |
500T/4000 | 5000 | 4000 | 3100 | 400 | 300 | 600 | 37 | 4000x2250x3700 |
500T/5000 | 5000 | 5000 | 4000 | 400 | 300 | 600 | 37 | 5000x2250x3700 |
500T/6000 | 5000 | 6000 | 5000 | 400 | 300 | 600 | 37 | 6000x2300x3800 |
600T/4000 | 6000 | 4000 | 3100 | 400 | 300 | 600 | 45 | 4000x2400x3700 |
600T/5000 | 6000 | 5000 | 4000 | 400 | 300 | 600 | 45 | 5000x2400x3700 |
600T/6000 | 6000 | 6000 | 5000 | 400 | 300 | 600 | 45 | 6000 x 2400 x 3800 |
E21 Control System
- Back gauge control system
- Control for general AC motors, frequency converter
- Automatic positioning
- Dual programmable digital output
- Program memory of up to 40 programs. 25 steps per program
- Back gauge retract function
- One-click backup and restoration
- mm/inch, English operation interface
Main Configurations
- Main motor from Siemens
- Ball screw and linear rail from Taiwan HIWIN
- Electrical system from French SCHNEIDER
- Oil pump from Sunny
- Manifold valve from REXROTH
- Press brake dies
- Clamping system
Optional Configurations
- Safety light curtain
- Variable-frequency drive
- Dual guide rail crossbar
- Clamping system
- Sectional CNC tooling
- Adjustable front arms with guides
