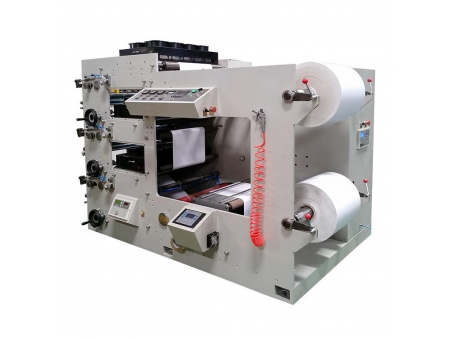

Stack Flexo Label Printing Machine, DRBY-320
Request a Quote
Flexographic printing press for label & narrow web
Our stack flexo label printing machine is an ideal printing equipment for narrow web and labels and more. This printing machine offers 1 to 8 color printing options, featuring a simple structure, wide printing range, eco-friendly ink, fast printing speed, easy operation, and maintenance. This is the best choice for factories to print small to medium-scale invoice, paperboards, and labels.
Our stack flexo label printing machine can realize whole-process label printing, from material feeding, printing, drying, coating, laminating, forming, die-cutting, to rewinding and waste collection, all in one machine, resulting in high efficiency, low cost, and excellent cost-effectiveness.
- Materials
- Applications
- Machines
- Features
- Details
- Optional
Applicable Materials
A wide range of printing materials are applicable for our stack flexo label printing machine, including self-adhesive paper, self-adhesive film, composite film, paper, OPP, aluminum foil, CPP, PET, and etc.
- Self-adhesive paper, self-adhesive thermal paper

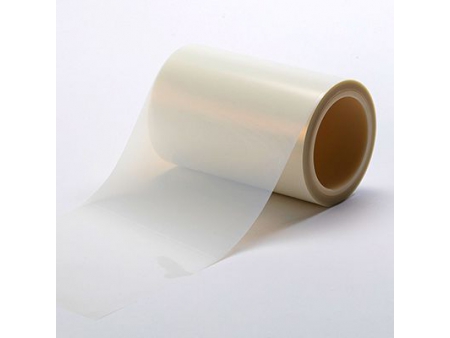

- Self-adhesive film

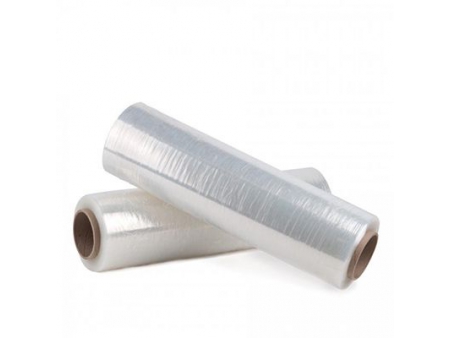

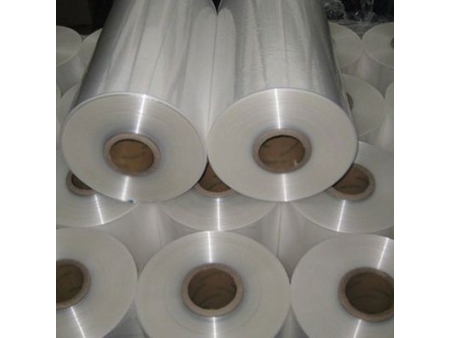

- Plastic film
- Composite film
- Kraft paper

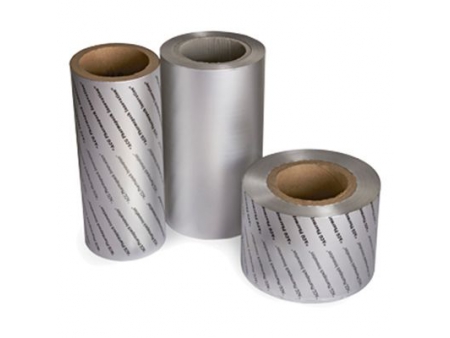

- Metalized film

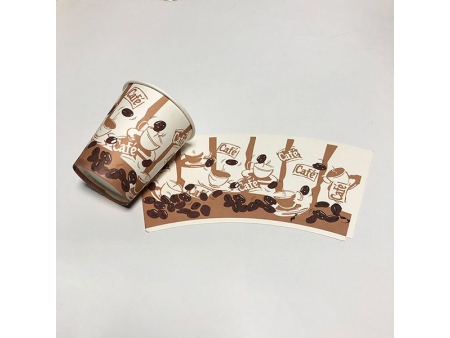

- Paper cup blank
Applications
Our label printing machine can be used in label printing for the pharmaceuticals, food, daily necessities, cosmetics, and more.
Our Models

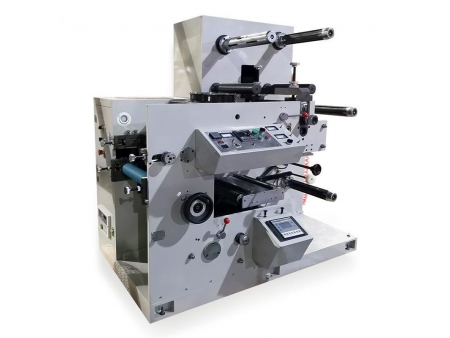

1-Color Stack Flexo Printing Press
- Model: DBRY-320-1C
- Printing Speed: 55~80m/min
- Maximum Substrate Width: 350mm
- Maximum Printing Width: 320mm
- Minimum Printing Width: 35mm
- Maximum Unwinding/Rewinding Diameter: 600mm
- Printing Color: 1
- Accuracy: ±0.10mm
- Dimensions (L*W*H): 2.1m*1.3m*1.8m
- Weight: 1,500kg
- Dryer Power: 3.0kw
- Voltage: 380V,50Hz

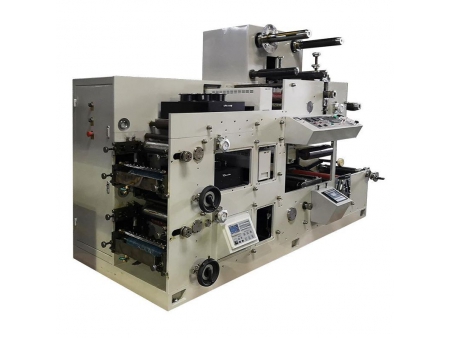

2-Color Stack Flexo Printing Press
- Model: DBRY-320-2C
- Printing Speed: 55~80m/min
- Maximum Substrate Width: 350mm
- Maximum Printing Width: 320mm
- Minimum Printing Width: 35mm
- Maximum Unwinding/Rewinding Diameter: 600mm
- Printing Color: 2
- Accuracy: ±0.10mm
- Dimensions (L*W*H): 2.3m*1.35m*2.0m
- Weight: 2,000kg
- Dryer Power: 3.0kw
- Voltage: 380V,50Hz
3-Color Stack Flexo Printing Press
- Model: DBRY-320-3C
- Printing Speed: 55~80m/min
- Maximum Substrate Width: 350mm
- Maximum Printing Width: 320mm
- Minimum Printing Width: 35mm
- Maximum Unwinding/Rewinding Diameter: 600mm
- Printing Color: 3
- Accuracy: ±0.10mm
- Dimensions (L*W*H): 2.3m*1.35m*2.0m
- Weight: 3,000kg
- Dryer Power: 3.0kw
- Voltage: 380V,50Hz
4-Color Stack Flexo Printing Press
- Model: DBRY-320-4C
- Printing Speed: 55~80m/min
- Maximum Substrate Width: 350mm
- Maximum Printing Width: 320mm
- Minimum Printing Width: 35mm
- Maximum Unwinding/Rewinding Diameter: 600mm
- Printing Color: 4
- Accuracy: ±0.10mm
- Dimensions (L*W*H): 2.3m*1.35m*2.2m
- Weight: 3,500kg
- Dryer Power: 3.0kw
- Voltage: 380V,50Hz
5-Color Stack Flexo Printing Press
- Model: DBRY-320-5C
- Printing Speed: 55~80m/min
- Maximum Substrate Width: 350mm
- Maximum Printing Width: 320mm
- Minimum Printing Width: 35mm
- Maximum Unwinding/Rewinding Diameter: 600mm
- Printing Color: 5
- Accuracy: ±0.10mm
- Dimensions (L*W*H): 2.3m*1.35m*2.7m
- Weight: 3,800kg
- Dryer Power: 3.0kw
- Voltage: 380V,50Hz
6-Color Stack Flexo Printing Press
- Model: DBRY-320-6C
- Printing Speed: 55~80m/min
- Maximum Substrate Width: 350mm
- Maximum Printing Width: 320mm
- Minimum Printing Width: 35mm
- Maximum Unwinding/Rewinding Diameter: 600mm
- Printing Color: 6
- Accuracy: ±0.10mm
- Dimensions (L*W*H): 2.3m*1.35m*3.2m
- Weight: 4,000kg
- Dryer Power: 3.0kw
- Voltage: 380V,50Hz
7-Color Stack Flexo Printing Press
- Model: DBRY-320-7C
- Printing Speed: 55~80m/min
- Maximum Substrate Width: 350mm
- Maximum Printing Width: 320mm
- Minimum Printing Width: 35mm
- Maximum Unwinding/Rewinding Diameter: 600mm
- Printing Color: 7
- Accuracy: ±0.10mm
- Dimensions (L*W*H): 2.3m*1.35m*3.6m
- Weight: 4,500kg
- Dryer Power: 3.0kw
- Voltage: 380V,50Hz
8-Color Stack Flexo Printing Press
- Model: DBRY-320-8C
- Printing Speed: 55~80m/min
- Maximum Substrate Width: 350mm
- Maximum Printing Width: 320mm
- Minimum Printing Width: 35mm
- Maximum Unwinding/Rewinding Diameter: 600mm
- Printing Color: 8
- Accuracy: ±0.10mm
- Dimensions (L*W*H): 2.3m*1.35m*4.1m
- Weight: 5,000kg
- Dryer Power: 3.0kw
- Voltage: 380V,50Hz
Features
- The main motor features variable frequency stepless speed adjustment, imported from reliable overseas suppliers.
- Unwind unit, traction unit, and rewind unit are controlled by magnetic powder brakes, clutches, and automatic tension detectors.
- This label flexo printing equipment is equipped with highly efficient ceramic anilox rollers, featuring wear resistance, rust prevention, and long service life.
- The printing unit adopts plate-to-plate registration, allowing each printing unit to print independently without affecting other printing units.
- All printing units are equipped with infrared dryers, with an option for UV system.
- The ink roller can automatically disengage when the machine stops, maintaining a low-speed operation to prevent ink from drying.
- Unwind and rewind units use air expanding shafts, making material changes and unloading easier.
Details
- Unwinding Unit
- Maximum Unwinding Diameter: 600mm
- 76mm (3 inches) air expanding shaft equipped
- Merobel electromagnetic brake equipped
- Automatic tension controller allows for stable unwinding/rewinding.
- Electronic web guiding system ensures that the printing material remains properly aligned during the printing and post-processing stages, preventing any deviations or misalignments.
- Printing Unit
- The plate roller automatically disengages from the unfit anilox roller when the machine operates.
- Each printing unit is driven by a 0.75 kW motor, independently controllable via the control panel.
- Ceramic anilox rollers available in models ranging from 150LPI to 1000LPI.
- Repeat length: 177-355 mm.
- Transmission gear - 1/8 cp.
- Printing substrate thickness: 1.7 mm.
- Drying Unit
- Each printing unit is equipped with a dryer positioned above the printing material.
- Hot air is rapidly blown onto the printing ink through a high-power axial fan. This reduces the contact time between the material and hot air, prevents material deformation, and improves printing quality.
- Laminating unit
76mm (3 inches) air expanding shaft facilitates rapid changeover.
- Die cutting unit
- The passive rewinding roller with adjustable tension control ensures reliable waste matrix rewinding at high speeds, even if the winding is unstable.
- Maximum waste matrix diameter: 400mm (15.75 inches).
- 76mm (3 inches) air-expanding shaft equipped.
- Rewinding Unit
- Maximum Rewinding Diameter: 600mm
- 76mm (3 inches) air expanding shaft equipped
- Merobel electromagnetic brake equipped
- Automatic tension controller allows for stable rewinding.
Optional
- UV curing system
- Corona treater
- Ceramic anilox roller
- Printing cylinder with different diameter options
- Mitsubishi tension controller
