Flexographic printing machine for label & narrow web

Our servo driven inline flexo printing press can achieve 8-color printing. The printing machine adopts Baumuller’s latest servo control system from Germany with 21 servo motors in total, enabling super-fast printing speed of up to 180 meters per minute and a maximum printing width of 340 millimeters. Our servo driven inline flexo printing press boasts unparalleled reliability and printing precision.

Applications
  • Label printing for food, oil, liquor, medicine and health products
  • High-end commercial label production
Applicable Materials
  • Self-adhesive matrix with a thickness below 350gsm, such as glossy paper, matte paper, aluminum foil, adhesive labels, and etc.
  • Films (PE, BOPP, OPP, PVC, etc.)
Features
  • Our label flexo printing press adopts Baumuller’s latest servo control system from Germany. Each printing unit is driven by an independent servo motor, ensuring accurate registration even at high printing speeds.

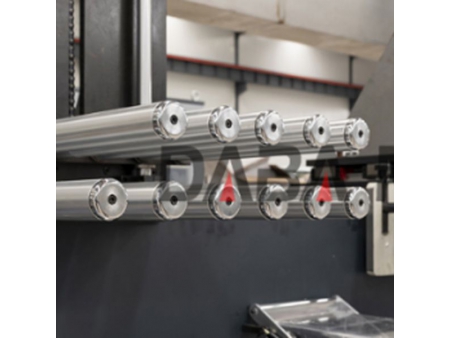

  • The plate roller uses a sleeve system, making replacement easy, convenient, and quick. This design significantly improves printing quality and reduces maintenance costs.
  • The plate roller is driven by bearings, making it unnecessary to adjust pressure when changing rollers. Even for special tasks, only minor pressure adjustments are needed. This makes adjusting printing or ink transfer pressure convenient and swift.
  • Equipped with a standard cooling unit that allows for cutting film materials rapidly in cool temperature.
Specifications
Model DBHS-320
Maximum Printing Speed 180m/min.
Maximum Substrate Width 350mm
Maximum Printing Width 340mm
Maximum Unwinding Diameter 1050mm
Maximum Exhaust Diameter 900mm
Maximum Repeat Length 254-609.6mm
Material Changeover Sleeve
Horizontal Registration Adjustment Motor-driven
Vertical Registration Control 360° servo-driven
Pre-registration Automatic
Quick Ink Changeover Quick replacement of cartridge
Turn bar Movable
Lubrication Automatic
Details
  • Unwinding Unit
    • Maximum unwinding diameter: 1050mm
    • Pneumatic material feeder
    • Servo tension control system
    • Pneumatic paper clamping and cutting
    • Automatic web guide system by BST
    • Airtac pneumatic components from Taiwan
    • Dust removal device for cleaning the material surface
  • Secondary Tensioning Unit
    • 2 sets of servo-driven traction units
    • Meurobelle pull tester from France
    • High-precision pneumatic clutch for nip rollers

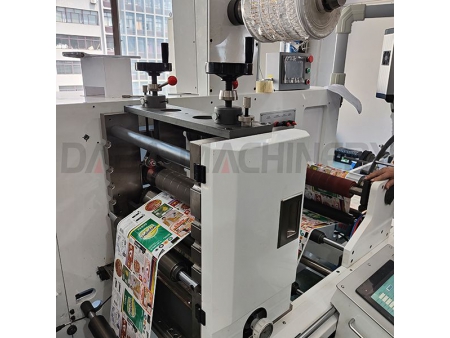

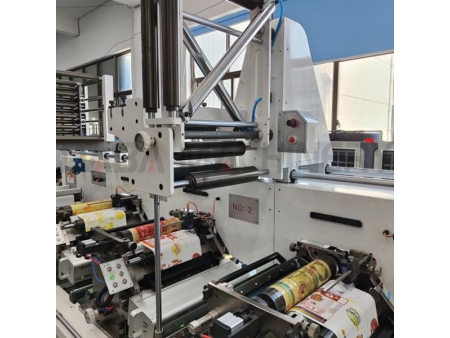

  • Printing Unit (8 stations)
    • Servo-driven pressure roller
    • Servo-driven plate roller
    • Reserved installation space for hot air, UV light, and cooling devices
    • Automatic clutching and pressing of plate roller
    • Horizontal position adjustment device
    • Quick and easy doctor blade replacement
    • Automatic registration alignment
  • UV LED Curing System
    • 30% less power consumption with variable-frequency power supply
    • Manual or automatic power control
    • Step by step manual power adjustment
    • Automatic follow-up with the speed of printing machine
    • Fine adjustment for each printing unit available
    • Compact in size and easy to install
    • Convenient paper threading and maintenance for drawer-style structure
  • Rewind unit
    • Maximum rewinding diameter of 1,050mm
    • Pneumatic material feeder
    • 3 inches air expanding shaft
    • Adjustable output torque of motor, depending on the actual reel diameter
  • Inspection system
    • AOC 22-inch LCD display
    • Adjustable focus, zoom, and contrast ratio
    • Multiple monitoring mode for tracking alignment and printing efficiency, etc.
Optional
  • Laminating & matrix removal unit

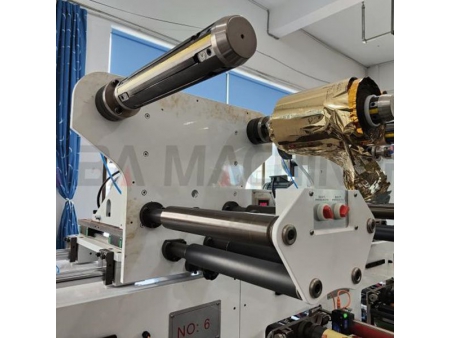

  • Cold foil stamping unit
  • Turn bar
  • Cut-to-length unit
  • Slitting unit
