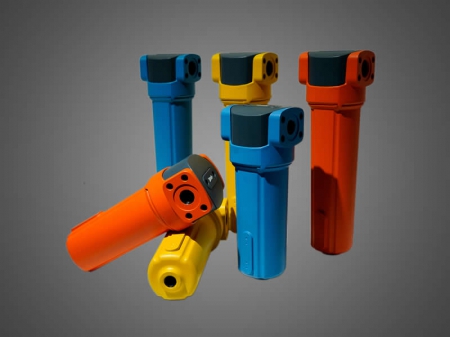

Threaded Compressed Air Filters
Request a Quote
-
Threaded compressed air filters are used for the filtration of dust, lubricants, oil mist and condensed water from compressed air. The filter housing can be produced in 2 optional materials: aluminum alloy and carbon steel, with color options of white or blue. An aluminum alloy housing is suitable for pneumatic systems and a working pressure of less than 1.6MPa. A carbon steel housing is ideal for larger filters and high-pressure systems, with the highest filtration grade of 0.01μm.
- Aluminum alloy housing
- Carbon steel housing
| Filter Grade | Photos | Filtration rate | Efficiency | Residual oil content at an inlet of 3 mg/m3 |
| 3μm | 99% | 5 | |
| 1μm | 99% | 1 | |
| 0.01μm | 99% | 0.01 | |
| 0.01μm | 99% | 0.001 | |
| 0.01μm | 99% | 0.001 |
| Technical data for filter housing | |
| Operating pressure max. | 40 bar |
| Operating temp. Max. | 120℃ |
| Material housing | Carbon Steel |
| Surface finish | Epoxy resin |
| Sealing | Perbunan |
Optional accessories

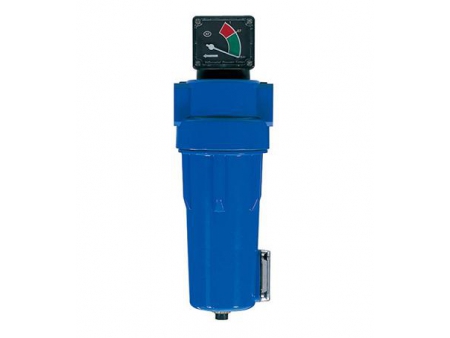

- Direct-Mount differential pressure gauge
- Differential pressure gauge with pipe mounting bracket
- External float drain
- Built-in automatic drain
- Electronic drain
- Magnetic level gauge
