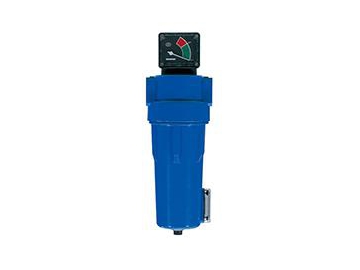

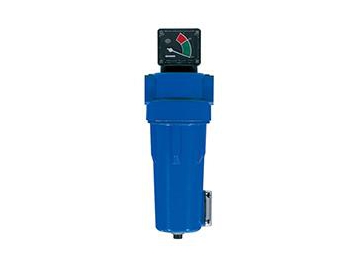

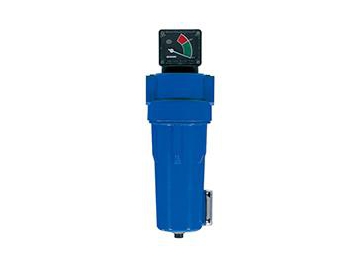

  • XF Series threaded compressed air filters are used for the filtration of dust, lubricants, oil mist and condensed water from compressed air. The filter housing can be produced in 2 optional materials: aluminum alloy and carbon steel, with color options of white or blue. An aluminum alloy housing is suitable for pneumatic systems and a working pressure of less than 1.6MPa. A carbon steel housing is ideal for larger filters and high-pressure systems, with the highest filtration grade of 0.01μm.

  • Aluminum alloy housing

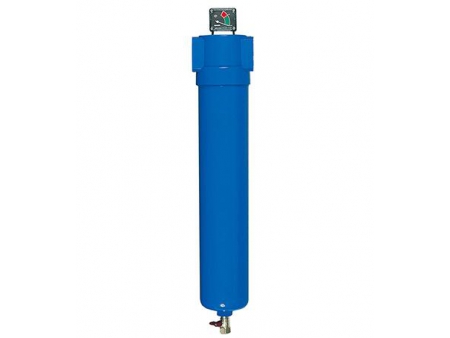

  • Carbon steel housing
Filter Grade Photos Filtration rate Efficiency Residual oil content at an inlet of 3 mg/m3
3μm 99% 5
1μm 99% 1
0.01μm 99% 0.01
0.01μm 99% 0.001
0.01μm 99% 0.001
Technical data for filter housing
Operating pressure max. 40 bar
Operating temp. Max. 120℃
Material housing Carbon Steel
Surface finish Epoxy resin
Sealing Perbunan

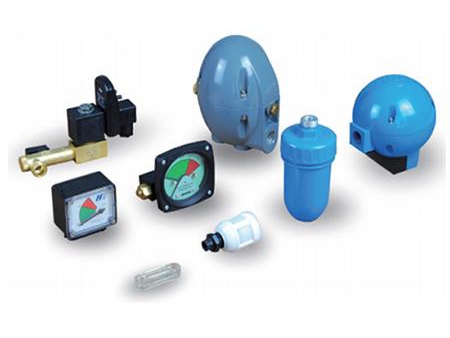

Optional accessories
  • Direct-Mount differential pressure gauge
  • Differential pressure gauge with pipe mounting bracket
  • External float drain
  • Built-in automatic drain
  • Electronic drain
  • Magnetic level gauge
