Water-Cooled Refrigerated Air Dryer - TRW Series (TR06W-TR12W)
These energy-saving refrigeration dryers are engineered for applications requiring water-cooled systems for enhanced thermal efficiency and performance stability.
It combines advanced plate heat exchanger technology with eco-friendly design to ensure reliable moisture removal from compressed air systems. Ideal for installations where water cooling offers operational advantages, these refrigerated dryers deliver consistent performance with minimal energy consumption.
- Ambient temperature: 2~45℃
- Cooling water temperature: 2~35℃
- Cooling water pressure: 0.2~0.3MPa
- Compressed air inlet temperature: 15~65℃
- Compressed air pressure: 0.7MPa, Max.1.0MPa (or customizable)
- Pressure drop: ≤0.025MPa (at 0.7MPa inlet pressure)
- Pressure dew point: 3℃ (35℃ inlet temperature, 25℃ ambient temperature)
| Model | Max. air flow rate (m³/min) | Power supply | Input power (kW) | Air pipe connection | Cooling water connection | Evaporator type | Cooling method | Refrigerant | Total weight (kg) | Dimensions (L×W×H) |
| 6.5 | 220V/50Hz | 1.15 | RC1-1/2' | RC1/2' | Aluminum plate heat exchanger | Water condenser | R410A | 63 | 700×540×950 | |
| 8.5 | 220V/50Hz | 1.4 | RC2' | RC3/4' | Aluminum plate heat exchanger | Water condenser | R410A | 73 | 770×590×990 | |
| 10.5 | 220V/50Hz | 1.75 | RC2' | RC3/4' | Aluminum plate heat exchanger | Water condenser | R410A | 85 | 770×590×990 | |
| 13 | 220V/50Hz | 2.25 | RC2' | RC3/4' | Aluminum plate heat exchanger | Water condenser | R410A | 94 | 800×610×1030 |

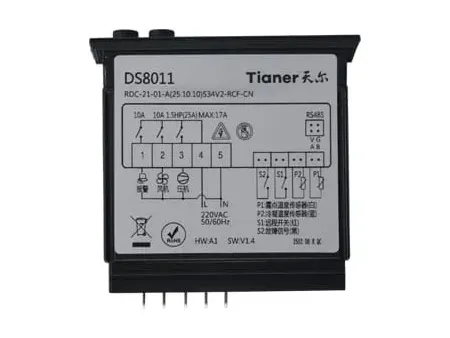

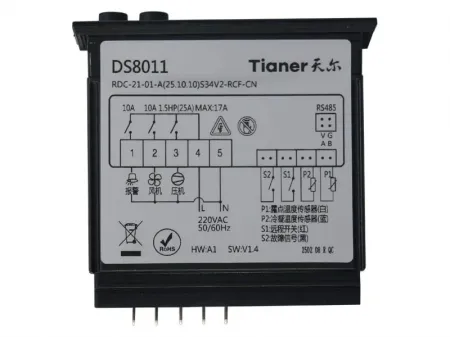

- Display Interface: LED dew point temperature display, LED alarm code display, running status indication
- Anti-Freezing Protection: Constant pressure expansion valve
- Temperature Control: Automatic control of condensing temperature and dew point temperature
- High Voltage Protection: Temperature sensor & pressure sensitive intelligent protection
- Low Voltage Protection: Temperature sensor & pressure sensitive intelligent protection
- Remote Control: Optional configuration of remote connection dry contact, RS485 expansion interface (please let us know in advance if you need)
- Energy-saving design
Incorporates an aluminum alloy three-in-one heat exchanger with an enlarged precooler, minimizing refrigeration energy losses and maximizing thermal recovery.
Enhances compressed air discharge temperature, effectively reducing residual moisture content.
- High efficiency
Integrated heat exchanger with flow guide fins ensures uniform heat transfer.
Equipped with a built-in air-water separator and stainless steel mesh filter for thorough and reliable moisture separation.
- Intelligent control
Features multi-point temperature and pressure monitoring with real-time dew point display.
Automatically records cumulative operating hours and includes self-diagnostic functions with alarm codes and protective measures.
- Environmentally friendly
Complies with the Montreal Protocol by utilizing R407C refrigerant with zero ozone depletion potential, meeting international environmental standards.
- Stable operation
Standardized with a constant-pressure expansion valve for automatic refrigerant regulation across varying operating conditions.
Features dual anti-freeze protection (temperature and pressure) to ensure energy efficiency and extended equipment longevity.
