A Series Track Lighting LED Light Manufacturer

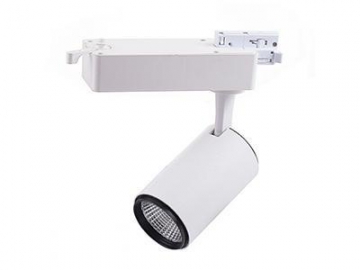

A Series Track Lighting LED Light

Request a Quote

View All: http://mf-ledlights.com/2-4-led-track-light.html

Introduction

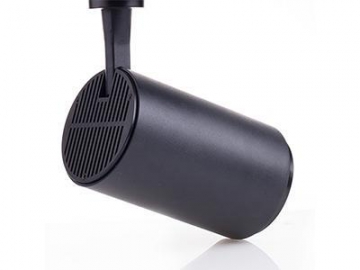

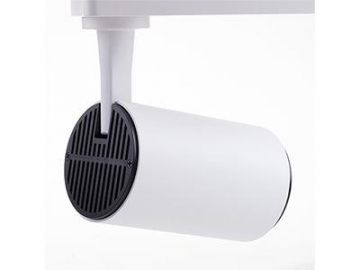

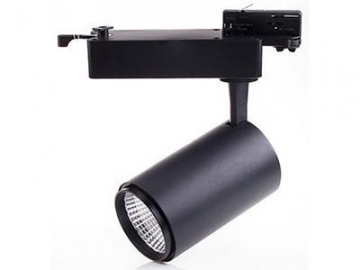

We provide six types of A series LED track lights, including 10W, 15W, 20W, 25W, 30W, and 35W models. The track light housing is made from 6030 aluminum alloy material, which has been approved by CE and RoHS.

Features

The color render index (CRI) is Ra97+(2700K/3000K/4000K), which brings out the natural colors of lit objects.
The LED driver of the track light is of high quality. The light produces no strobes, PF>0.95. The LED lighting fixture can eliminate visual fatigue caused by traditional light flickering.
We provide two kinds of track adaptor, one is PowerGear, the other is GLOBAL, for you to choose.
If the CRI is up to 80, the luminous efficiency is more than 100Lm/w
Three kinds of reflector beam angle: 16°, 24°, and 38° are available.
Six kinds of power: 10W, 15W, 20W, 25W, 30W, and 35W area vailable.

Product Models

Model No.	Power	Dimension
BH-TL-10W-A	10W	Φ80*L136mm
BH-TL-15W-A	15W	Φ80*L136mm
BH-TL-20W-A	20W	Φ80*L136mm
BH-TL-25W-A	25W	Φ80*L136mm
BH-TL-30W-A	30W	Φ97*L164mm
BH-TL-35W-A	35W	Φ97*L164mm

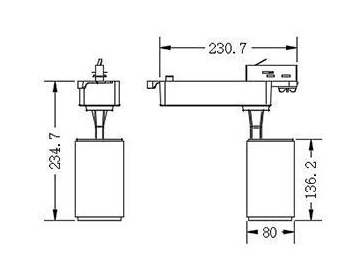

Dimensions

10-25W
30-35W

Specification

LED Chip Citizen/CREE
LED Driver Tridonic / Philips / OSRAM, Lifud, flicker-free
Dimmable DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
PF >0.95
THD < 12%
Input Voltage AC200-240V/AC100-240V
CRI 80+90+97+
CCT 2700K, 3000K, 4000K, 5000K
Luminous Efficacy >100 lm/W @CRI80 (whole lamp)
Beam Angle 16°, 24°, 38°
Body Material 6063 brushed aluminum alloy
Light color warm white, white, cool white
Adjustable angle 350° rotation horizontally and 90° pivot
Housing color Black/white/silver
Track adapter Global/PowerGear
Track adapter phase 1 /2 /3 phase
Certificate CE,RoHS
Lifespan 50000 hours
Warranty 3-5 Years

Application

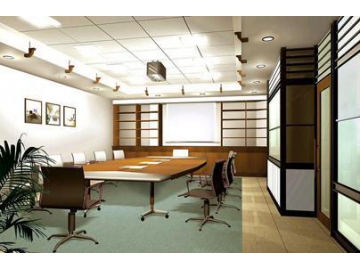

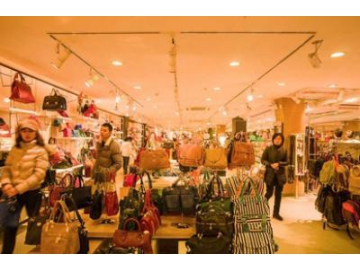

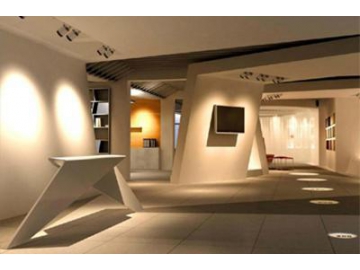

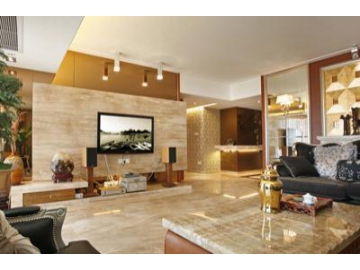

A series LED track lights are designed for use in galleries, museums, retail stores, shopping malls, exhibitionhalls and other commercial or private locations.
