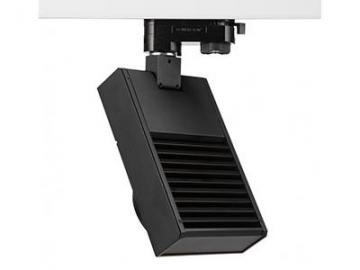

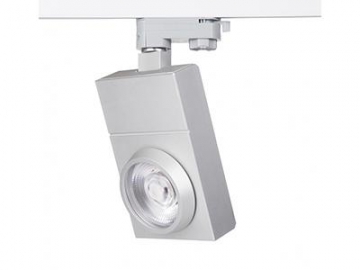

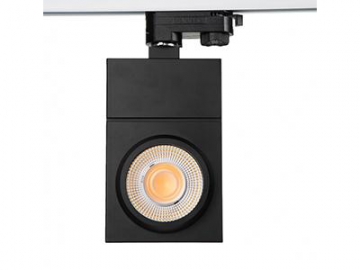

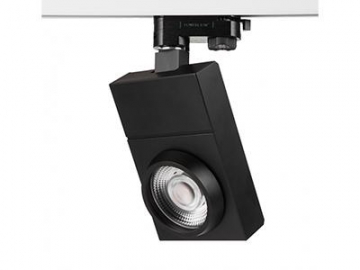

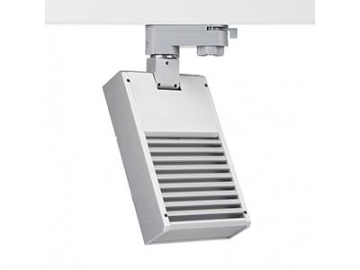

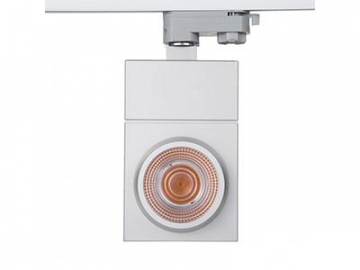

F Series Track Lighting Kit LED Light
Request a Quote
Features
- Different beam angles of the E series track light are available for section including 12°, 23°, and 38°.
- E series track light is an integrated design combining form and function
- The color render index(High CRI) is Ra97+(2700K/3000K/4000K), which displays the natural color of objects
- The LED driver of the track light is of high quality. The light has no strobes, PF>0.95. The LED lighting fixture can eliminate the visual fatigue caused by traditional light flickering.
- If the CRI is up to 80, the luminous efficiency is more than 100Lm/w.
Product Models
| Model No. | Power | Dimension | |
| BH-TL-20W-F | 20W | L107*W38.5*H170mm | |
| BH-TL-25W-F | 25W | L107*W38.5*H170mm | |
| BH-TL-30W-F | 30W | L107*W38.5*H170mm | |
| BH-TL-35W-F | 35W | L107*W38.5*H170mm | |
| BH-TL-40W-F | 40W | L107*W38.5*H170mm |
Dimension
Specification
- LED Chip Citizen/CREE
- LED Driver Tridonic / Philips / OSRAM, Lifud, flicker-free
- Dimmable DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.95
- THD <12%
- Input Voltage AC200-240V/AC100-240V
- CRI 80+90+97+
- CCT 2700K, 3000K, 4000K , 5000K
- Luminous Efficacy >100 lm/W @CRI80 (whole lamp)
- Beam Angle 12°, 23°, 38°
- Body Material 6063 brushed aluminum alloy
- Light color Warm white, pure white, cold white
- Adjustable 350° rotation horizontally and 90° pivot
- Housing color Black/white/silver
- Track adapter Global/PowerGear
- Track adapter phase 1 /2 /3 phase
- Certificate CE, RoHS
- Lifespan 50000 hours
- Warranty 3-5 Years
Application

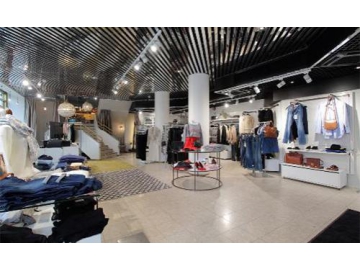

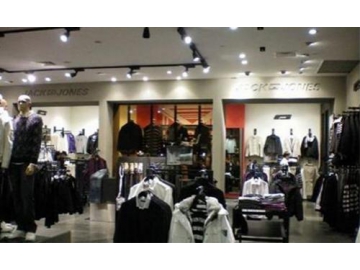

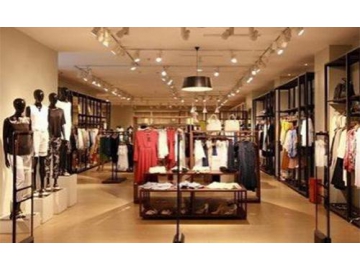

F series LED track light can be used in galleries, museums, retail stores, shopping malls, exhibition halls and other commercial or private places.
