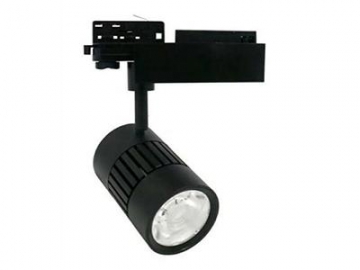

B Series Track Lighting LED Light Kit

Request a Quote

View All: http://qcledlighting.com/2-7-led-light-kits.html

Introduction

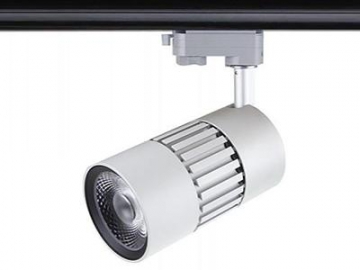

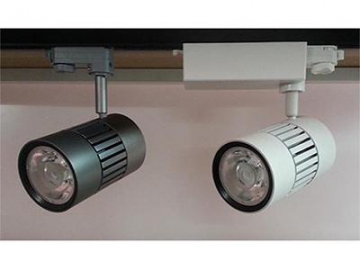

We provide five types of B series LED track lights including 10W, 15W, 20W, 25W, 30W. The track light housing is made from 6030 a light yet durable aluminum alloy material.

Features

B series LED track lights havev a fin-like radiator, which is fashionable and effective. The radiator features outstanding heat dissipation performance.
External power supply or built-in power supply options to choose from.
The color render index (CRI) is Ra97+(2700K/3000K/4000K) displays the true color of objects.
The LED driver of the track light is of high quality. The light has no strobes, PF>0.95. The LED lighting fixture can eliminate the visual fatigue caused by traditional light flickering.

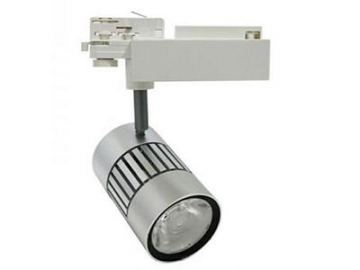

We provide two kinds of track adaptor, one is PowerGear,the other is GLOBAL, for you to choose from.
If the CRI is up to 80, the luminous efficiency is more than 100 lm/w.

Product Models

Model No.	Power	Dimension
BH-TL-10W-B	10W	Φ70*L120mm
BH-TL-15W-B	15W	Φ70*L120mm
BH-TL-20W-B	20W	Φ70*L120mm
BH-TL-25W-B	25W	Φ90*L147mm
BH-TL-30W-B	30W	Φ90*L147mm

Dimensions

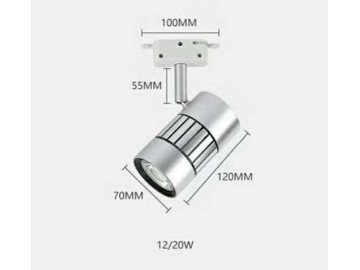

10-20W B series LED track light

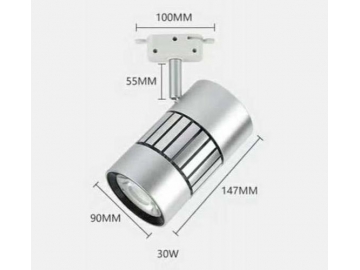

25-30W B series LED track light

Specification

LED Chip Citizen/CREE
LED Driver Tridonic / Philips / OSRAM, Lifud, flicker-free
Dimmable DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
PF >0.95
THD <12%
Input Voltage AC200-240V/AC100-240V
CRI 80+90+97+
CCT 2700K, 3000K, 4000K, 5000K
Luminous Efficacy >100 lm/W @CRI80 (whole lamp)
Beam Angle 15°, 24°
Body Material 6063 brushed aluminum alloy
Light color Warm white, pure white, cold white
Adjustable 350° rotation horizontally and 90° pivot

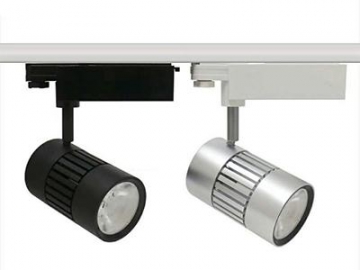

Housing color Black/white/silver
Track adapter Global/PowerGear
Track adapter phase 1 /2 /3 phase
Certificate CE, RoHS
Lifespan 50000 hours
Warranty 3-5 Years

Application

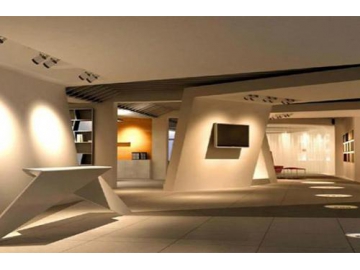

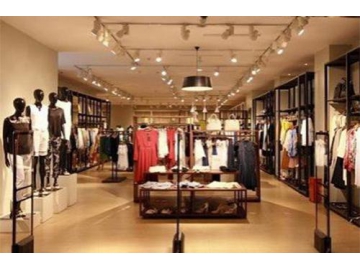

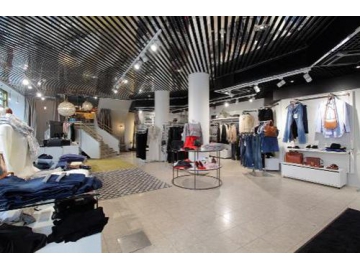

B series LED track lights can be used in galleries, museums, retail stores, shopping malls, exhibition halls and other commercial or private places.
