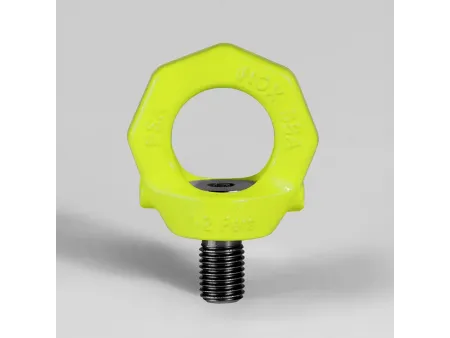

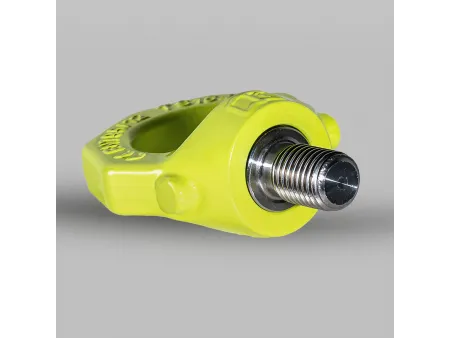

Fall Protection Anchorage Point (Fall Arrest Eyebolt)

Request a Quote

Website: http://loadlifting-en.com/1-10-fall-protection-anchorage-point.html

PSA Rigging Hardware

Persons 1 to 2 persons

Rotation 360 degree

Material: Duplex stainless steel
Attachment type: Screw-in
Rotation angle: 360°
Pivot angle: 0°
Surface treatment (rings): Powder-coated
Working temperature range: -40℃~ 200℃
Thread size: M12–M20
Custom thread: Metric/Unified National Coarse (UNC)/Unified National Fine (UNF)/pipe thread/lengthened/shortened
Rotates under load: No
Holding spring for suspension link: No
Working load limit: 1-2 persons (anchor point)
Safety factor: 4:1
Standard: Occupational Safety and Health Administration (OSHA) Standards: DIN EN 795 & TS16415;
Loading standard: DIN EN365
Explosion protection: No
RAL color No.: Customizable
Identification label available: No

Inspection and Standards

Fully traceable forged components and hexagonal bolts with certified reports
Compliant with occupational safety standards EN795 and TS16415
Declared load capacity of 1–2 persons per DIN EN365 standards
Bolts tested to withstand 22.2KN/person load and dynamic drop tests with 150kg loads (EU standard: 100kg)
100% magnetic particle inspection ensures no cracks or defects

Applications

Construction safety: Used as a fall arrest anchor point in high-altitude construction activities, including bridge construction and building maintenance.
Outdoor maintenance: Functions as a secure anchor for personnel during wind power maintenance and high-voltage power line repairs, ensuring fall protection for workers in challenging environments.

The fall protection anchorage point is a personal safety device designed for high-altitude operations, ensuring secure attachment and fall prevention for up to two persons. This fall arrest eyebolt offers 360-degree rotation to automatically adjust to the direction of force, making it a reliable choice for demanding outdoor environments, including construction and aerial work.

Key Features

Functions as a fall arrest anchorage point for personal safety, compatible with safety harnesses in high-altitude operations
Long-term stability in outdoor environments, including marine and high-chloride conditions
360° rotation adjusts automatically to the force direction, enhancing safety during operations
Hexagonal socket bolt design for quick and easy installation
Available in M12–M20 sizes with customizable bolt lengths for deep or through holes
Clearly marked with a load capacity of 1–2 persons for standardized use
Manufactured from duplex stainless steel (DSS), offering excellent corrosion resistance and mechanical strength
Epoxy resin electrostatic powder-coated ring body for added durability and aesthetics
Each load-bearing component is marked with a batch number for traceability

Specifications

(Available in Metric Thread and UNC Thread)

Metric Thread Fall Protection Anchorage Point, PSA

Item No.	Thread M	Persons	Dimensions mm											Torque (Nm)	Weight (kg)
Item No.	Thread M	Persons	A	B	C	D	E	F	G	H	J	S	W	Torque (Nm)	Weight (kg)
PSA INOX-M12	12×1.75	1 Person	43	30	10	13	18	33	29	7.0	48	8	55	10	0.20
PSA INOX-M16	16×2.00	1-2 Persons	50	35	14	16	24	35	34	8.0	56	10	65	30	0.40
PSA INOX-M20	20×2.50	1-2 Persons	57	40	17	19	30	43	37	9.5	64	12	78	70	0.60
PSA INOX-M12 L-50	12×1.75	1 Person	43	30	10	13	50	33	29	7.0	48	8	55	10	0.22
PSA INOX-M16 L-50	16×2.00	1-2 Persons	50	35	14	16	50	35	34	8.0	56	10	65	30	0.48
PSA INOX-M16 L-120	16×2.00	1-2 Persons	50	35	14	16	120	35	34	8.0	56	10	65	30	0.56
PSAINOX-M20 L-60	20×2.50	1-2 Persons	57	40	17	19	60	43	37	9.5	64	12	78	70	0.63

* The length and thread of bolts can be made according to requirements;

UNC Thread Fall Protection Anchorage Point, PSA

Item No.	Thread M	Persons	Working Load Limit (t)											Torque (Nm)	Weight (kg)
Item No.	Thread M	Persons	A	B	C	D	E	F	G	H	J	S	W	Torque (Nm)	Weight (kg)
PSAINOX-1/2	1/2-13UNC-2A	1 Person	43	30	10	13	18	33	29	7	48	8	55	10	0.2
PSAINOX-5/8	5/8-11UNC-2A	1-2 Persons	50	35	14	16	24	35	34	8	56	10	65	30	0.4
PSA INOX-3/4	3/4-10UNC-2A	1-2 Persons	57	40	17	19	30	43	37	10	64	12	78	70	0.6

* The length and thread of bolts can be made according to requirements;
