Hyundai Powered Diesel Generators

Request a Quote

Website: http://dieselgenerator-en.com/1-11-hyundai-powered-diesel-generators.html

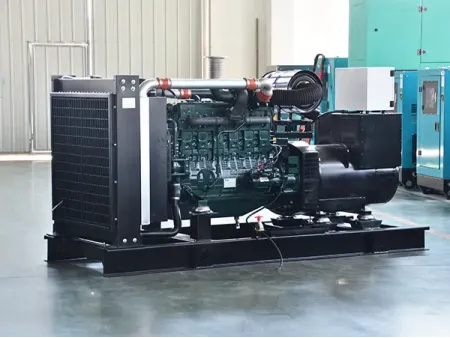

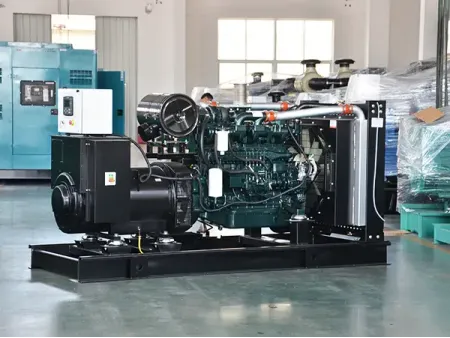

Our Hyundai-powered diesel generator sets is equipped with advanced engines developed in-house by HD Hyundai Infracore (formerly Doosan Infracore). Each unit is paired with a digital control panel that supports remote monitoring and automated operation, ensuring ease of use and operational efficiency. Built to meet stringent international emission standards such as EU Stage V and EPA Tier 4, these generator sets deliver dependable performance for a wide range of industrial, commercial, and emergency power applications.

Frequency	50Hz	60Hz
Prime Power	63-913kVA (50-730kW)	73-1000kVA (58-800kW)
Standby Power	69-1000kVA (55-800kW)	80-1100kVA (64-880kW)
Fuel Consumption	10.5-159L/h	16.6-222.4L/h
Displacement	3.4-21.9L	3.4-21.9L

Technical Specifications

50Hz Diesel Generator Sets

Genset Model	Prime Power		Standby Power		Engine Model	Fuel Consumption	Cylinder	Displacement
Genset Model	kVA	kW	kVA	kW	Engine Model	L/h	Cylinder	L
CDH69	63	50	69	55	SP344CB	10.5	4L	3.4
CDH88	80	64	88	70	SP344CC	13.6	4L	5.4
CDH185	168	134	185	148	PO86T1-1	37	6L	8.1
CDH220	200	160	225	180	PO86TI	44	6L	8.1
CDH251	229	183	254	203	DPO86LA	47	6L	8.1
CDH308	273	218	308	246	P126T	57	6L	11.1
CDH334	300	240	334	267	P126TH-I	65	6L	11.1
CDH406	365	292	406	325	DP126LB	73	6L	11.1
CDH467	408	326	467	374	P158LE	83	8V	14.6
CDH511	463	370	511	409	DP158LC	94	8V	14.6
CDH583	529	423	583	466	DP158LD	104	8V	14.6
CDH633	574	459	633	506	DP18OLA	120	10V	18.3
CDH701	636	509	701	562	DP18OLB	109	10V	18.3
CDH759	689	551	759	607	DP222LB	147.1	12V	21.9
CDH829	751	601	829	663	DP222LC	119	12V	21.9
CDH839	763	610	839	671	DP222CA	133	12V	21.9
CDH894	813	650	900	720	DP222CB	145	12V	21.9
CDH1004	913	730	1000	800	DP222CC	147	12V	21.9
CDH839-4	763	610	839	671	DP222CAS	133	12V	21.9
CDH900-4	813	650	900	720	DP222CBS	142	12V	21.9
CDH10004	900	720	1000	800	DP222CCS	147	12V	21.9
CDH839	763	610	839	671	DP222CAK	131	12V	21.9
CDH900-I	825	660	900	720	DP222CBK	141	12V	21.9
CDH1000-l	913	730	1000	800	DP222CCK	159	12V	21.9

60Hz Diesel Generator Sets

Genset Model	Prime Power		Standby power		Engine Model	Fuel Consumption	Cylinder	Displacement
Genset Model	kVA	kW	kVA	kW	Engine Model	L/h	Cylinder	L
CDH80	73	58	80	64	SP334CB	16.6	4L	3.4
CDH100	91	73	100	80	SP334CC	20.7	4L	3.4
CDH213	193	154	213	170	P086THH	42.4	6L	8.1
CDH250	229	183	250	200	P086T1	50.6	6L	8.1
CDH281	255	204	281	225	DPO86LA	56.0	6L	8.1
CDH344	313	250	344	275	P126TI	70.3	6L	11.1
CDH385	344	275	385	308	PI26TH	73.8	6L	11.1
CDH440	400	320	440	352	DP126LB	94.7	6L	11.1
CDH489	444	355	489	391	P158LE	102.5	8V	14.6
CDH572	520	416	572	458	DPI58LC	111.5	8V	14.6
CDH624	566	453	624	499	DP158LD	127.1	8V	14.6
AD688	625	500	688	550	DP180LA	140.5	8V	18.3
CDH747	679	543	747	597	DP18OLB	150.7	8V	18.3
CDH825-4	750	600	825	660	DP222LA	161.7	12V	21.9
CDH898	794	635	898	718	DP222LB	172.7	12V	21.9
CDH924	840	672	924	739	DP222LC	183.2	12V	21.9
CDH950	863	690	950	760	DP222CAS	148.0	12V	21.9
CDH949	863	690	949	759	DP222CA	147.0	12V	21.9
CDH1031	938	750	1031	825	DP222CBS	200.1	12V	21.9
CDH1031-l	938	750	1031	825	DP222CB	160.0	12V	21.9
CDH1100	1000	800	1100	880	DP222CCS	222.4	12V	21.9
CDH1100-4	1000	800	1100	880	DP222CC	180.0	12V	21.9

Under standard operating conditions, Hyundai powered generator sets have a service life of 30,000 to 50,000 hours. The usual overhaul interval is approximately every 12,000 hours for prime power applications or 20,000 hours for standby use.

Yes, our Hyundai powered generator sets enable real-time monitoring of key parameters such as voltage, frequency, and oil pressure, along with fault warnings via SMS or email notifications. They can also automatically generate energy efficiency analysis reports for better operational management.
