16kW-500kW Diesel Genset

16kW-500kW Diesel Genset

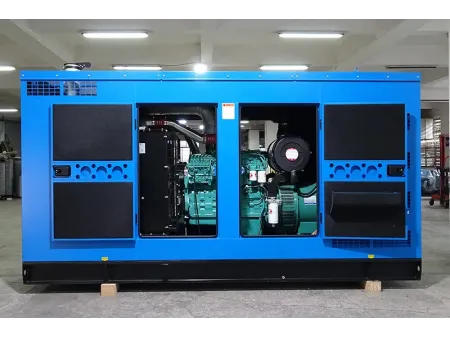

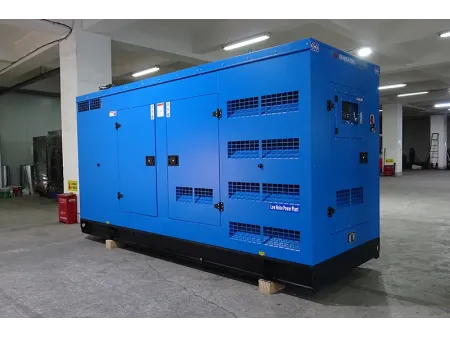

DINGBO Power's silent diesel generator sets incorporate state-of-the-art noise reduction technologies, including vibration isolation, sound reduction, sound insulation, and sound absorption, achieving noise levels below 80 decibels (dB). These generators are engineered for reliability, low emissions, efficient fuel consumption, and stable performance. They are ideally suited for environments with strict noise regulations such as factories, communication centers, hotels, educational institutions, hospitals, office buildings, and industrial sites.

Key Specs
  • Power Range: 20kVA to 625kVA (16kW to 500kW)
  • Frequency Options: 50Hz or 60Hz
  • Voltage Options: 220V to 480V, customizable to specific requirements
  • Engine Choices: Includes premium brands like Cummins, Perkins, Volvo, SDEC, Yuchai, Weichai, MTU
  • Alternator Options: Stamford, Leroy Somer, Engga, Marathon
  • Control Systems: Deep-Sea/SmartGen controllers
Features
  • Construction: Silencer box made from 2mm galvanized sheet, plastic-sprayed for rust resistance and durable paint finish.
  • Corrosion and Fire Resistance: Treated through stringent pickling and phosphating, with multi-layer paint for enhanced protection.
  • Maintenance Features: Includes oil and fuel drains for easy waste management.
  • Fuel Storage: Built-in fuel tank with a duration of 8 to 12 hours operation, equipped with a fuel gauge.
  • Accessibility: Dual access doors for easy maintenance and troubleshooting.
  • Sound Absorption: High-density flame-retardant and quality sound-absorbing cotton interior for effective noise reduction.
  • Exhaust System: Insulated to minimize noise, with specific decibel levels customizable upon request.
  • Safety and Observation: Features a controller observation window and an emergency stop button for quick shutdown in emergencies.
  • Environmental Protection: Designed to withstand harsh outdoor conditions, with features for noise, rain, and dust resistance.
  • Optimized Design: Enhanced airflow and ambient temperature control ensure optimal performance even at full capacity and emergency standby levels.
Product Details

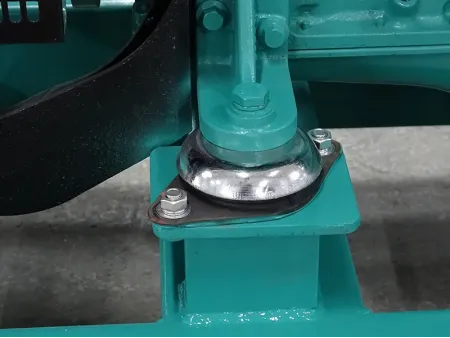

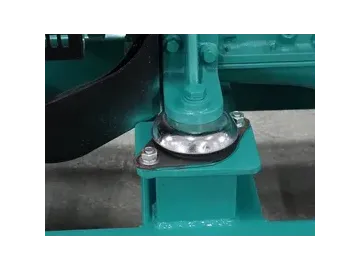

  • Vibration absorber

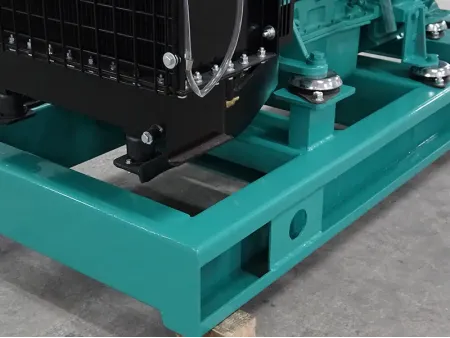

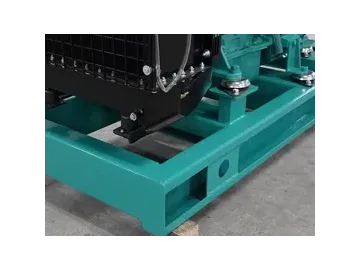

  • Steel base frame
  • Radiator filling port
  • Auto Controller
  • Air filter
  • Fuel filter
  • Oil filter
  • With fan safety shield
  • Emergency stop
  • Visual window for controller
  • Lockable maintenance door
  • Effective sound-absorbing cotton
  • Air inlet and outlet system to ensure genset's stable running
  • Fuel gauge
  • 2mm thick galvanized canopy
  • Oil drain outlet
Selection table
Genset Model Diesel Generator Set Dimension
Prime Power Standby Power L x W x H( mm )
kW kVA kW kVA
DB-16GF 16 20 17 22 2200×940×1530
DB-20GF 20 25 22 27.5 2200×940×1530
DB-22GF 22 28 28 35 2200×940×1530
DB-25GF 25 31 28 35 2200×940×1530
DB-30GF 30 38 33 41 2200×940×1530
DB-30GF 30 38 33 41 2200×940×1530
DB-50GF 50 63 55 69 2400×1000×1600
DB-60GF 60 75 66 83 2700×1240×1790
DB-64GF 64 80 70.4 88 2700×1240×1790
DB-70GF 70 88 77 96 2700×1240×1790
DB-75GF 75 94 82.5 103 2700×1240×1790
DB-75GF 75 94 82.5 103 2700×1240×1790
DB-90GF 80 100 88 110 2700×1240×1790
DB-100GF 100 125 110 138 2800×1240×1790
DB-110GF 110 138 120 150 2800×1240×1790
DB-120GF 120 150 132 165 2800×1240×1790
DB-140GF 140 175 154 193 3000×1240×1790
DB-150GF 150 188 165 206 3000×1240×1790
DB-160GF 160 200 176 220 3000×1240×1790
DB-180GF 180 225 200 250 3300×1400×1930
DB-200GF 200 250 220 275 3300×1400×1930
DB-220GF 220 275 242 303 3300×1400×1930
DB-250GF 250 313 275 344 4000×1600×2150
DB-300GF 300 375 330 413 4000×1600×2150
DB-330GF 330 413 360 450 4000×1600×2150
DB-350GF 350 438 385 481 4300×1700×2350
DB-360GF 360 450 396 495 4300×1700×2350
DB-380GF 380 475 420 525 4300×1700×2350
DB-400GF 400 500 440 550 4300×1700×2450
DB-430GF 430 538 470 588 4700×1800×2450
DB-450GF 450 563 500 625 4700×1800×2450
DB-470GF 470 588 520 650 4700×1900×2450
DB-480GF 480 600 530 663 4700×1900×2450
DB-500GF 500 625 550 688 4900×2000×2600
DB-520GF 520 650 570 713 5000×2000×2600
DB-550GF 550 688 600 750 5000×000×2600

Contact us for more product information.
