500kW-3000kW Diesel Genset

500kW-3000kW Diesel Genset

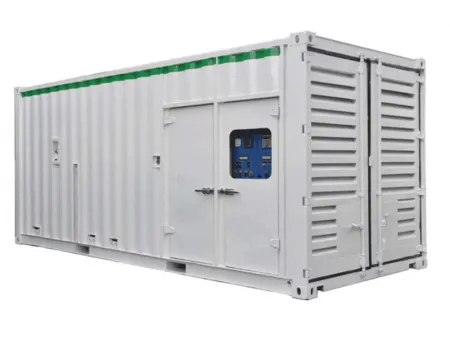

DINGBO Power’s containerized diesel generators are meticulously designed to comply with international standards and are available in both standard and silent types. Housed within standard shipping containers, these generators offer a seamless integration of the generator set and its associated equipment, providing a robust solution that combines aesthetics with functionality.

Key Specs
  • Power Range: 625kVA to 3730kVA (500kW to 3000kW)
  • Frequency Options: 50Hz or 60Hz
  • Voltage Options: 220V to 480V, customizable according to specific needs
  • Engine Choices: Selection includes industry-leading brands like Cummins, Perkins, Volvo, Weichai, Yuchai, SDEC, MTU
  • Alternator Options: Stamford, Leroy Somer, Engga, Marathon
  • Control Systems: Deep-Sea/SmartGen
  • Optional components: automatic fuel transfer pumps and control valves, coolant pumps, oil-water separator, dual power switches, and automatic paralleling systems.
Features
  • Container Design: Built to international container standards, generator sets up to 1000KVA use 20-foot containers, while larger sets (over 1250KVA) are housed in 40-foot containers.
  • Transportation Efficiency: CSC-certified to meet the International Convention for Safe Containers, allowing direct shipment as standard containers and reducing transportation costs.
  • Accessibility and Safety: Features explosion-proof lights for safety, dual front and rear doors for easy access, and side doors for maintenance. Built-in lights and external ladders enhance user accessibility.
  • Build Quality: All components such as hinges, locks, and bolts are made of stainless steel, equipped with anti-sea water and rainwater intrusion devices.
  • Operational Convenience: The controller and output switch cabinet are strategically placed on the same side for easy operation and cable management.
  • Silent Operation: Equipped with high-performance anti-aging and flame-retardant soundproofing materials. The design for air intake and exhaust ensures superior noise reduction capabilities.
  • Durability and Maintenance: Engineered for easy lifting and excellent rainproof performance, offering a large space with complete facilities for convenient maintenance.
  • Flexibility and Adaptability: The size and configuration of the container can be adapted to various environmental conditions.
Customization Options for Containerized Diesel Generators in Special Environments
  • Oilfield Applications
    Our generators can be equipped with explosion-proof switches, lights, and cabinets, along with workbenches and rope hooks. Optional sleds or climbing plows are available to meet the unique operational demands of container power stations in oilfield settings.
  • Offshore Platform Use
    Designed with a sealable structure to withstand maritime conditions, these generators can be outfitted with electric louvers and other wave-proof facilities, effectively adapting to environments with high salt spray, humidity, and condensation typical of offshore settings.
Selection table
Genset Model Diesel Generator Set Dimension
Prime Power Standby Power L x W x H ( mm )
kW kVA kW kVA
DB-500GF 500 625 550 688 ISO 20ft GP
DB-520GF 520 650 570 713 ISO 20ft GP
DB-550GF 550 688 600 750 ISO 20ft GP
DB-600GF 600 750 660 825 ISO 20ft GP
DB-640GF 640 800 700 875 ISO 20ft GP
DB-650GF 650 813 720 900 ISO 20ft GP
DB-740GF 740 925 810 1013 ISO 20ft GP
DB-800GF 800 1000 880 1100 ISO 20ft GP
DB-900GF 900 1125 1000 1250 ISO 20ft GP
DB-1000GF 1000 1250 1100 1375 ISO 20ft GP
DB-1100GF 1100 1375 1200 1500 ISO 40ft HQ
DB-1100GF 1100 1375 1200 1500 ISO 40ft HQ
DB-1200GF 1200 1500 1320 1650 ISO 40ft HQ
DB-1500GF 1500 1875 1650 2063 ISO 40ft HQ
DB-1600GF 1600 2000 1760 2200 ISO 40ft HQ
DB-1800GF 1800 2250 1980 2475 ISO 40ft HQ
DB-2000GF 2000 2500 2200 2750 ISO 40ft HQ
DB-2200GF 2200 2750 2420 3025 ISO 40ft HQ
DB-2400GF 2400 3000 2640 3300 ISO 40ft HQ
DB-2500GF 2500 3125 2750 3437.5 ISO 40ft HQ
DB-2600GF 2600 3250 2860 3575 ISO 40ft HQ

For more details, please contact us.
