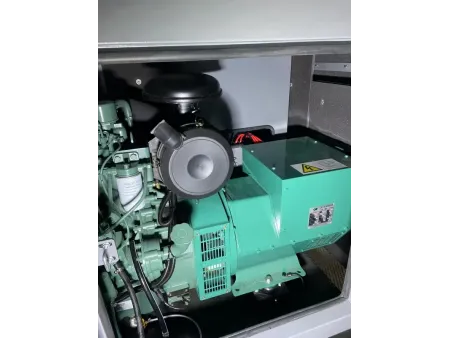

FAW Powered Diesel Generators

Request a Quote

Website: http://dieselgenerator-en.com/1-12-faw-powered-diesel-generators.html

FAW-powered diesel generator sets are equipped with reliable FAW diesel engines, meeting China III and above emission standards, with select models compliant with China IV standards. Available in standard power ratings from 10 to 375 kVA, these gensets are engineered for stable power supply performance and efficient fuel use, making them suitable for a variety of industrial, commercial, and backup power applications.

Frequency	50Hz	60Hz
Prime Power	10-375kVA (8-300kW)	13-375kVA (10-300kW)
Standby Power	11-413kVA (8.8-330kW)	14-413kVA (11-330kW)
Alternator	LONGEN	LONGEN
Controller	SmartGen	SmartGen

Technical Specifications

50Hz Diesel Generator Sets

Model	Prime Power		Standby Power		Engine	Alternator	Controller	Open Set		Silent Type
Model	kVA	kW	kVA	kW	FAW	LONGEN	SmartGen	Dimensions (L×W×H) (mm)	Weight (kg)	Dimensions (L×W×H) (mm)	Weight (kg)
CDF11	10	8	11	8.8	YD385D	WHI164B	HGM6110U	1450×650×1100	400	1800×850×1100	600
CDF15	13.5	10.8	15	12	4DW81-23D	WHI164C	HGM6110U	1500×650×1100	430	2000×850×1200	630
CDF16.5	15	12	16	13	4DW81-23D	WHI164D	HGM6110U	1500×650×1100	450	2000×850×1200	650
CDF22	20	16	22	17.6	4DW91-29D	WHI184E	HGM6110U	1500×650×1100	500	2000×850×1200	750
CDF27.5	24.5	20	27.5	22	4DW92-35D	WHI184F	HGM6110U	1550×650×1100	550	2000×850×1200	750
CDF33	30	24	33	26.5	4DW92-39D	WHI184G	HGM6110U	1900×800×1250	620	2500×950×1510	830
CDF40	38	30	41	33	4DX21-53D/39-43kw	WHI184H	HGM6110U	1900×800×1350	850	2500×950×1510	1350
CDF55	50	40	55	44	4DX22-65D/48-53kw	WHI224D	HGM6110U	1900×800×1400	900	2500×950×1510	1400
CDF70	63	50	69	55	4DX23-78D/57-63kw	WHI224E	HGM6110U	1900×800×1400	950	3100×1100×1610	1500
CDF96	88	70	96	77	4DF2-12D/84-92kw	WHI224G	HGM6110U	2000×800×1450	1000	3100×1100×1610	1600
CDF110	100	80	110	88	6DF2D-14D/96-105kw	WHI274C	HGM6110U	2300×850×1550	1050	3100×1200×1610	1700
CDF138	125	100	138	110	6DF2-17D/125-138kw	WHI274ES	HGM6110U	2400×900×1550	1400	3100×1200×1610	2200
CDF165	150	120	165	132	6DF2-19D/150-165kw	WHI274F	HGM6110U	2500×1000×1550	1600	3600×1200×2050	2300
CDF206	188	150	206	165	6DL1-24D/176-194kw	WHI274G	HGM6110U	2800×1000×1600	1700	4200×1400×2000	2500
CDF248	225	180	248	198	6DL2-27D/205-226kw	WHI274J	HGM6110U	2800×1000×1600	1800	4200×1400×2000	2700
CDF275	250	200	275	220	6DL2-30/227-251kw	WHI274K	HGM6110U	3100×1000×1600	2100	4200×1400×2000	3000
CDF330	300	240	330	264	6DM2J-39D/287-316kw	WHID	HGM6110U	3100×1000×1600	2200	4200×1400×2000	3200
CDF413	375	300	413	330	6DN1J-45D/332-365kw	WHI4F	HGM6110U	3200×1000×1650	2600	4200×1400×2000	3600

60Hz Diesel Generator Sets

Model	Prime Power		Standby Power		Engine	Alternator	Controller	Open Set		Silent Type
Model	kVA	kW	kVA	kW	FAW	LONGEN	SmartGen	Dimensions (L×W×H) (mm)	Weight (kg)	Dimensions (L×W×H) (mm)	Weight (kg)
CDF14	13	10	14	11	YD385D	WHI164B	HGM6110U	1450×650×1100	400	1650×800×1150	700
CDF21	19	15	21	17	4DW81-28D	WHI164D	HGM6110U	1650×650×1100	500	1900×830×1150	800
CDF30	28	22	30	24	4DW91-38D	WHI184E	HGM6110U	1700×650×1100	550	2000×830×1150	900
CDF34	31	25	34	28	4DW92-42D	WHI184F	HGM6110U	1900×800×1250	620	2200×950×1300	1000
CDF41	38	30	41	33	4DX21-53D	WHI184G	HGM6110U	1800×800×1250	850	2280×950×1300	1050
CDF48	44	35	48	39	4DX22-60D	WHI184H	HGM6110U	1900×800×1400	900	2280×950×1300	1200
CDF66	60	48	66	53	4DX23-82D	WHI224D	HGM6110U	1900×800×1400	950	3100×1100×1610	1300
CDF85	81	65	85	72	CA4110/125Z-11D	WHI224F	HGM6110U	2000×800×1450	1000	3100×1100×1610	1500
CDF117	106	85	117	94	CA4DF2-14D	WHI274C	HGM6110U	2300×850×1550	1050	3100×1200×1610	2000
CDF131	119	95	131	105	CA6DF2D-16D	WHI274C	HGM6110U	2300×850×1550	1050	3100×1200×1610	1700
CDF151	138	110	151	121	CA6DF2-18D	WHI274D	HGM6110U	2400×900×1550	1400	3100×1200×1610	2200
CDF179	163	130	179	143	CA6DF2-21D	WHI274E	HGM6110U	2500×1000×1550	1600	3600×1200×2050	2300
CDF227	34	27	227	182	CA6DL1-27D	WHI274G	HGM6110U	2800×1000×1600	1700	4200×1400×2000	2500
CDF275	250	200	275	220	CA6DL2-32D	WH274H	HGM6110U	3100×1000×1600	2100	4200×1400×2000	3000
CDF370	338	270	371	297	CA6DM2J-42D	WHI4D	HGM6110U	3100×1000×1600	2100	4200×1400×2000	3000
CDF413	375	300	413	330	CA6DN1J-46D	WHI4ES	HGM6110U	3200×1000×1650	2600	4200×1400×2000	3600

At high altitudes, output is typically derated by about 7% to 9% for every 1,000 meters. A high-altitude turbocharged version is available to maintain performance. In high-temperature conditions where ambient temperatures exceed 40°C, an enhanced cooling system featuring dual fans and a larger-capacity radiator is recommended.

Parallel operation requires the installation of a paralleling control cabinet (synchronizing cabinet) and synchronization detection devices. These components ensure voltage, frequency, and phase synchronization across multiple units, enabling safe, stable, and efficient load sharing.
