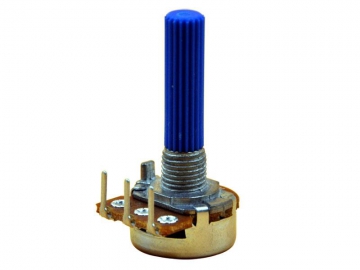

16mm Plastic Shaft Snap-in Type Potentiometer, WH148 Series
Request a Quote
Part Number
WH148
The 16mm single-unit potentiometer with plastic knurled shaft is ideal for designing high density sets. This type is commonly used in custom electronics, automotive electronics, audio equipment, home appliances, etc.
Parameters
| Diameters | 16mm |
| Total rotational angle | 300°±10° |
| Rotational torque | 20~200gf.cm |
| Stopper strength | ≥4kgf |
| Number of resistor elements | single-unit |
| Total resistance | 500Ω-1MΩ |
| Resistance tolerance | ±10% |
| Shaft Types | plastic/nylon |
| Element | carbon film |
| Rated power | ≤0.05W |
| Voltage proof | 500V AC for 1 minute |
| Operating life | ≥10000cycles |
