ERW Tube Mill, 16mm-63.5mm
Request a Quote
Round, Square, Rectangular Tube
1 ERW76 Sizing section
ERW219 Forming section
ERW254 Sizing section
FF forming technology
Automatic stacking machine

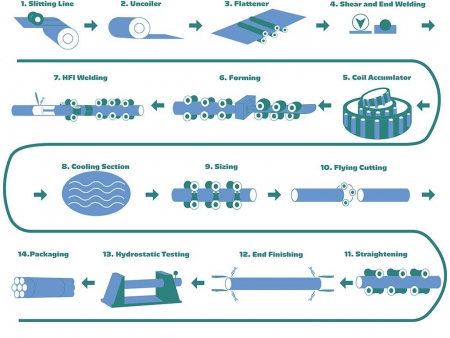

Steel Coil → Double-arm Uncoiler → Shear and End Cutting & Welding → Coil Accumulator → Forming (Flattening Unit Main Driving Unit Forming Unit Guide Unit High Frequency Induction Welding Unit Squeeze Roller) → Deburring → Water Cooling → Sizing & Straightening → Flying Saw Cutting → Pipe Conveyor → Packaging → Warehouse Storage
Basic Technical Parameters | Production Capacity | |
| Round Pipe | 16mm - 63.5mm |
| Square & Rectangular Pipe | 15*15 - 50*50(60*40)mm |
| Wall Thickness | 0.6 - 3.0mm (Round Pipe) 0.6 - 2.5mm(Square Pipe) |
| Speed | Max. 100m/min |
| Pipe Length | 3m – 12m |
| Steel Strip Specification | |
| Material | Low Carbon Steel, Q235, Q195 |
| Coil Inner Diameter | 460 - 510MM |
| Coil Outer Diameter | Max. 1500mm |
| Strip Width | 50mm – 200mm |
| Strip Thickness | 0.6mm – 3.0mm |
| Max. Coil Weight | 2500kgs |
| Electricity | |
| Dynamic Power | 380V, 3-phase, 50Hz (depends on local facilities) |
| Control Power | 220V, single-phase, 50 Hz |
| Electric Installed Capacity: Approx.200kW | |
| Water Cooling | |
| Reservoir for High Frequency Equipment | 15 m³ |
| Reservoir for Circulating Cooling Water | 15 m³ |
| Compressed Air | |
| Pressure | 0.4MPa |
| Flow Rate | 0.5m³/hour |
| Line Speed: Max. 100m/min | |
| Overall Production Line Dimension: 60m X 5m (L X W) | |
Each production line is carefully designed and produced according to customer requirements. We are devoted to providing customers with the best fit line.
