Invar 36 Nickel Alloy

Request a Quote

View All: http://xh-alloy.com/1-15-invar-36-nickel-alloy/172481/index.html

Nickel AlloyInvar 36

Mechanical Properties

Tensile Strength

490 (σb/MPa)

Yield Strength

240 (σp0.2/MPa)

Elongation

42 (σ5/%)

Invar 36 nickel alloy has ultra low expansion coefficient at the temperature range from -250℃ to 200℃. At cryogenic temperatures, especially, Invar alloy 36 can maintain great strength and toughness. This FeNi alloy is suitable for the environment where low expansion factor is highly required such as the production, storage and transportation of liquefied gas.

Classic applications of this nickel alloy are test and control instrument at the service temperature under 200℃, liner of screw connector between metal and other materials, thermometal, etc.

Stock and Supply of Various Invar 36 Nickel Alloy

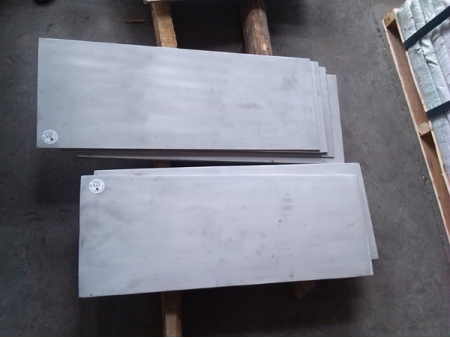

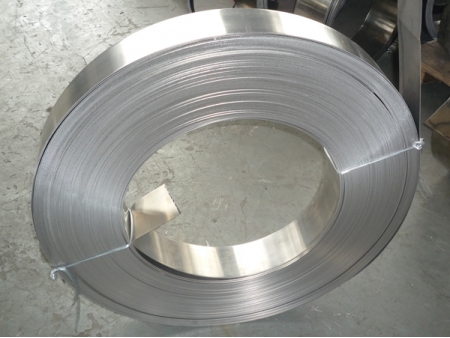

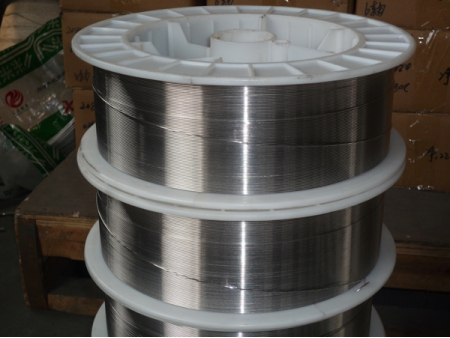

Common forms include tube, wire, bar, plate, etc.

Nickel Alloy Pipe & Tubing
Nickel Alloy Wire
Nickel Alloy Sheet & Plate
Nickel Alloy Coil

Chemical Compositions

Ni 35.00%- 37.00%	Fe Bal.	C 0.05%	Mn 0.20%- 0.60%
Si 0.30% Max.	P 0.02% Max.	S 0.02% Max.
