904L Nickel Alloy

Request a Quote

View All: http://xh-alloy.com/1-17-904l-nickel-alloy/172483/index.html

Nickel Alloy904L

Mechanical Properties

Tensile Strength

490 (σb/MPa)

Yield Strength

215 (σp0.2/MPa)

Elongation

35 (σ5/%)

Product Forms and Standards

Bar

ASTM B649

Sheet/Strip

ASTM B625

Wire

ASTM B649

Pipe

ASTM B6 77, ASTM B 673

Welding wire

AWS A5.9 ER385

The 904L nickel alloy is a high-alloy austenitic stainless steel with low carbon content. Similar with other frequently used CrNi austenitic steel, the alloy 904L has excellent resistance to pitting and crevice corrosion, stress corrosion cracking and intergranular corrosion. In addition to this, it is also readily to be fabricated and welded.

The low carbon alloy can be used for oil and petrochemical equipment such as reactor, storage and transportation equipment for sulfuric acid, flue gas desulfurization unit in power plant, scrubber and fan in organic acid processing system, etc.

Stock and Supply of Various 904L Nickel Alloy
Common forms include tube, wire, bar, plate, etc.

Nickel Alloy Pipe & Tubing

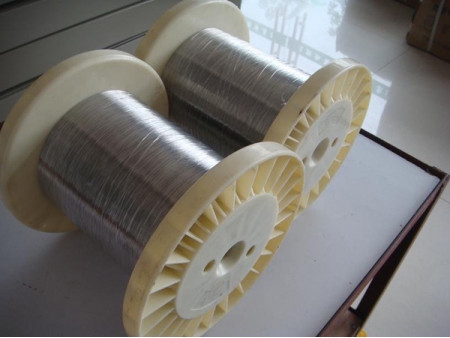

Nickel Alloy Wire

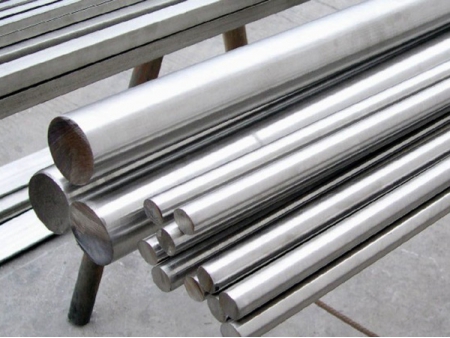

Nickel Alloy Bar

Nickel Alloy Coil

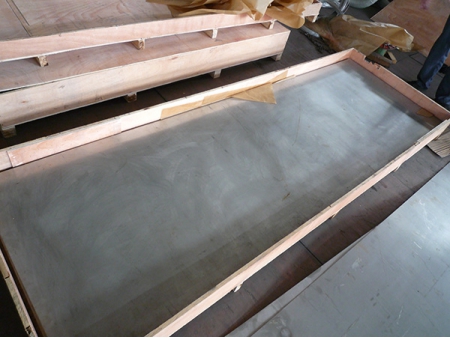

Nickel Alloy Sheet & Plate

Chemical Compositions

Ni 24.00%- 26.00%	Cr 19.00%- 21.00%	Mo 4.00%- 5.00%	Cu 1.00%- 2.00%	Fe Bal.
C 0.02% Max.	Mn 2.00% Max.	P 0.03% Max.	S 0.015% Max.
