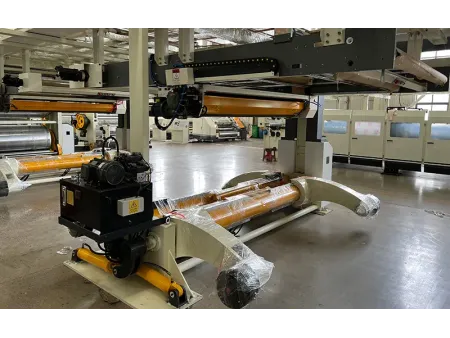

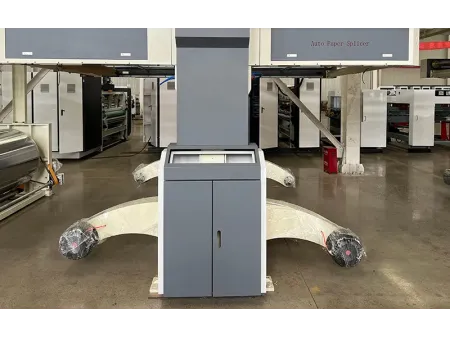

Hydraulic Mill Roll Stand

Request a Quote

Website: http://cartonmachine-en.com/1-2-1-hydraulic-mill-roll-stand.html

Individual Machines for Corrugated Board Manufacturing

Shaftless reel stand for secure paper roll holding and automatic web feeding in corrugator lines

Maximum load: 4000 kg

The hydraulic mill roll stand uses a hydraulic drive system to complete clamping, lifting, and lateral movement, enabling fully automated operation with high efficiency, reduced labor intensity, and flexible customization options. The design parameters are highly adaptable, supporting multi-point braking systems and dual-sided roll loading to accommodate paper rolls of different widths and weights.

Technical Specifications

Clamping paper width, mm	Min. 800; Max. 1600
Max. paper roll diameter, mm	Ø1500
Main shaft diameter, mm	Ø242
Single-unit weight, kg	Max. 3000
Air supply working pressure, MPa	0.4-0.8
Hydraulic system working pressure, MPa	16-18
Lifting hydraulic cylinder	Ø100x440mm
Clamping hydraulic cylinder	Ø63x1300mm
Hydraulic power unit motor power	3kW, 380V, 50Hz
Hydraulic system solenoid valve voltage	220V, 50Hz
Total power	4kW
Braking mode	Multi-point braking
Drive mode	Hydraulic arm lifting
Traversing function	Center left-right traversing
Guide rail length, mm	6000
Loading method	Manual trolley
Contactor and pushbutton brand	Siemens
Solenoid valve brand	AirTAC
