Our 3-roll hydraulic plate bending machines excel in transforming sheets into cylindrical, arc, and conical shapes, offering unparalleled versatility across a range of applications. The 3-roll hydraulic plate bending machine lineup includes the following three models:

W11S Series 3-Roll Hydraulic Plate Bending Machine
W11S Series 3-Roll Hydraulic Plate Bending Machine

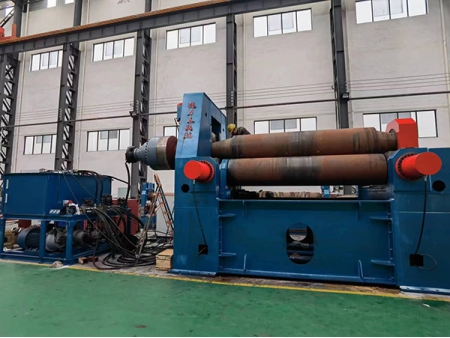

The W11S series of 3-roll bending machines feature an upper roller capable of moving both vertically and horizontally, offering precise bending operations without lower roller adjustments, which are fixed and solely rotated. This unique design allows for asymmetrical positioning of the upper roller relative to the lower ones, facilitating pre-bending processes through horizontal movement. The rolling process is powered by an electric motor and reducer, driving the two lower rollers, while the overturning frame operates on a hydraulic system. Vertical movements of the upper roller are hydraulically driven, with horizontal adjustments handled mechanically, ensuring efficient and precise sheet metal bending.

Specifications
Model Pressure on upper roller (ton) Max. plate thickness Plate width Diameter of upper roller (mm) Diameter of lower roller (mm) Central distance (mm) Motor (kW)
Pre-bending (mm) Central (mm) Driving Hydraulic Shift
W11S-15×2000 75 12 15 2000 255 150 245 7.5 4 1.1
W11S-14×2500 75 10 14 2500 270 150 245 7.5 4 1.1
W11S-13×3000 75 9 13 3000 290 150 245 7.5 4 1.1
W11S-17×2500 100 13 17 2500 300 165 270 15 5.5 1.5
W11S-15×3000 100 11 15 3000 325 165 270 15 5.5 1.5
W11S-20×2500 130 16 20 2500 330 180 300 15 5.5 2.2
W11S-18×3000 130 14 18 3000 350 180 300 15 5.5 2.2
W11S-22×2500 160 18 22 2500 360 200 330 18.5 7.5 2.2
W11S-20×3000 160 16 20 3000 375 200 330 18.5 7.5 2.2
W11S-18×3500 160 14 18 3500 390 200 330 18.5 7.5 2.2
W11S-25×2500 190 20 25 2500 380 220 360 22 7.5 4
W11S-22×3000 190 19 22 3000 400 220 360 22 7.5 4
W11S-20×3500 190 15 20 3500 415 220 360 22 7.5 4
W11S-30×2500 230 25 30 2500 410 235 380 30 11 4
W11S-27×3000 230 22 27 3000 425 235 380 30 11 4
W11S-25×3500 230 21 25 3500 440 235 380 30 11 4
W11S-33×2500 270 28 33 2500 430 250 400 30 11 4
W11S-30×3000 270 25 30 3000 450 250 400 30 11 4
W11S-28×3500 270 23 28 3500 470 250 400 30 11 4
W11S-25×4000 270 20 25 4000 490 250 400 30 11 4
W11S-36×2500 320 30 36 2500 460 260 420 37 15 5.5
W11S-32×3000 320 28 32 3000 480 260 420 37 15 5.5
W11S-28×3500 320 25 28 3500 500 260 420 37 15 5.5
W11S-26×4000 320 22 26 4000 520 260 420 37 15 5.5
W11S-40×2500 380 35 40 2500 500 275 460 45 22 5.5
W11S-35×3000 380 32 35 3000 500 275 460 45 22 5.5
W11S-32×3500 380 28 32 3500 530 275 460 45 22 5.5
W11S-30×4000 380 25 30 4000 550 275 460 45 22 5.5
W11S-45×2500 430 40 45 2500 520 290 500 55 22 7.5
W11S-38×3000 430 35 38 3000 540 290 500 55 22 7.5
W11S-36×3500 430 30 36 3500 560 290 500 55 22 7.5
W11S-32×4000 430 28 32 4000 580 290 500 55 22 7.5
W11S-45×3000 540 40 45 3000 590 340 610 55 22 11
W11S-40×4000 540 35 40 4000 630 340 610 55 22 11
W11S-55×3000 610 45 55 3000 620 360 650 75 30 15
W11S-45×4000 610 40 45 4000 660 360 650 75 30 15
W11S-40×5000 610 32 40 5000 700 360 650 75 30 15
W11S-36×6000 610 30 36 6000 730 360 650 75 30 15
W11S-60X2500 610 50 60 2500 620 360 650 75 30 15
W11S-60×3000 690 50 60 3000 650 380 700 75 30 15
W11S-50×4000 690 45 50 4000 700 380 700 75 30 15
W11S-45×5000 690 38 45 5000 740 380 700 75 30 15
W11S-40×6000 690 35 40 6000 760 380 700 75 30 15
W11S-70×3000 850 60 70 3000 710 420 780 75 37 15
W11S-55×4000 850 50 55 4000 750 420 780 90 37 15
W11S-75×3000 930 65 75 3000 740 440 820 90 37 15
W11S-60×4000 930 55 60 4000 780 440 820 90 37 15
W11S-80×3000 1050 70 80 3000 770 460 880 90 37 18.5
W11S-65×40000 1050 60 65 4000 810 460 880 90 37 18.5
W11S-85×3000 1150 75 85 3000 800 480 920 110 45 18.5
W11S-70×4000 1150 65 70 4000 840 480 920 110 45 18.5
W11S-100×3000 1350 90 100 3000 860 480 920 110 45 22
W11S-100×4000 1600 85 100 4000 940 560 1080 132 55 30

W11Y Series 3-Roll Hydraulic Plate Bending Machine
W11Y Series 3-Roll Hydraulic Plate Bending Machine

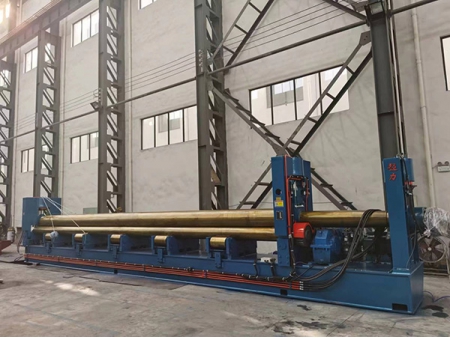

The 3-roll hydraulic plate bending machines, W11Y Series, are engineered for efficiency, and feature an upper roller designed for vertical movement to facilitate precise bending without the complexity of horizontal adjustments. The lower rollers are fixed, performing only rotational movements, streamlining the plate bending process. This plate bender series focuses on the bending process, with the rolling process driven by an electric motor and a reducer that activates the two lower rollers. The plate bender’s design doesn’t include pre-bending features, prioritizing simplicity and reliability. The hydraulic transmission manages both the overturning frame and the vertical movement of the upper roller, ensuring smooth and controlled bending operations.

Specifications
Model Max. plate thickness (mm) Max. plate width (mm) Yielding limit (Mpa) Rolling speed
(m/min)
Diameter of upper roller (mm) Motor power (kW)
W11Y-6×2500 6 2500 245 5 190 5.5
W11Y-12×2000 12 2000 245 5 240 11
W11Y-12×3000 12 3000 245 4.5 280 11
W11Y-20×2500 20 2500 245 4.5 340 15
W11Y-25×2500 25 2500 245 4.5 380 22
W11Y-30×2500 30 2500 245 4.5 460 30
W11Y-30×3000 30 3000 245 4.5 480 37
W11Y-40×2500 40 2500 245 4.5 500 37
W11Y-40×3000 40 3000 245 4 600 45
W11Y-45×3000 45 3000 245 4 620 45
W11Y-55×3000 55 3000 245 4 630 55
W11Y-60×3000 60 3000 245 4 670 55
W11Y-70×3000 70 3000 245 4 730 75
W11Y-75×3000 75 3000 245 4 750 75
W11Y-80×3000 80 3000 245 4 780 75
W11Y-100×3000 100 3000 245 4 840 90
W11Y-120×3000 120 3000 245 4 920 110

W11X Series 3-Roll Hydraulic Plate Bending Machine
W11X Series 3-Roll Hydraulic Plate Bending Machine

Our 3-roll hydraulic plate bending machines in the W11X enhances the bending precision thanks to their unique design. The top roller moves vertically, offering precise control over bending operations, while horizontal movement is exclusive to the two lower rollers. This feature allows adjustable spacing between the rollers, enhancing the machine's versatility. Smaller distances during rolling result in better curvature, whereas larger distances during rounding increase the bending machine’s capacity. Both upper and lower rollers are powered by hydraulic motors, ensuring smooth and efficient operation. The horizontal adjustment of the lower rollers also relies on hydraulic power, providing ease of control.
This series of 3-roll hydraulic bending machine can be engineered to meet specific needs. We customize configurations based on our client's requirements, ensuring a perfect match for every project's needs.

Applications

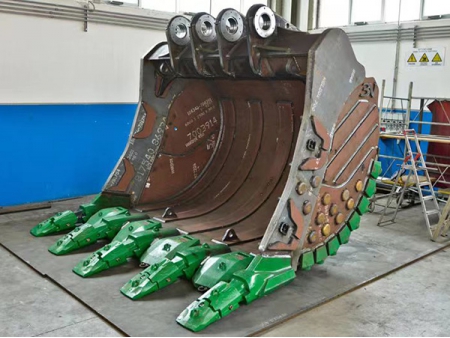

  • Construction machinery (excavator bucket)

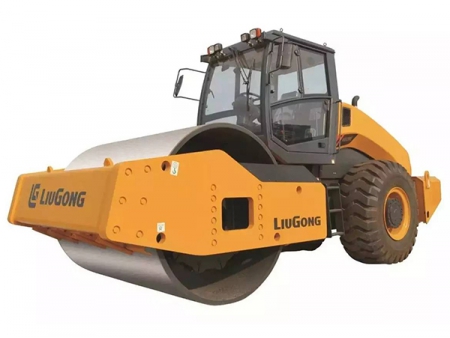

  • Construction machinery (road roller)

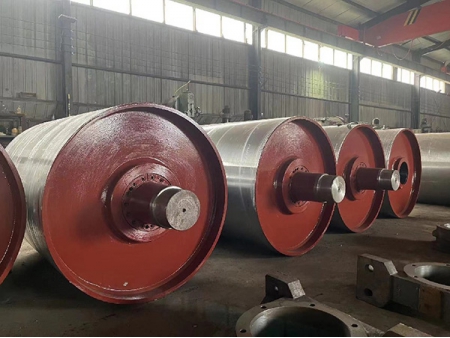

  • Conveyor roller

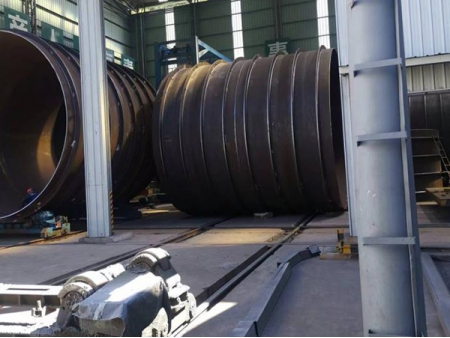

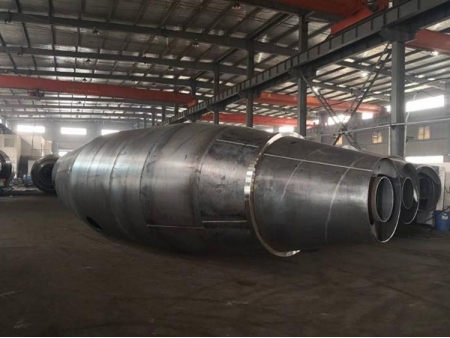

  • Mixer tanks of concrete mixer trucks

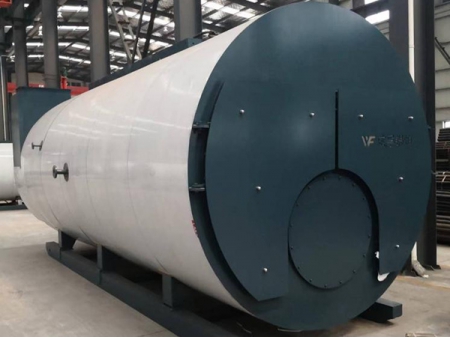

  • Boiler

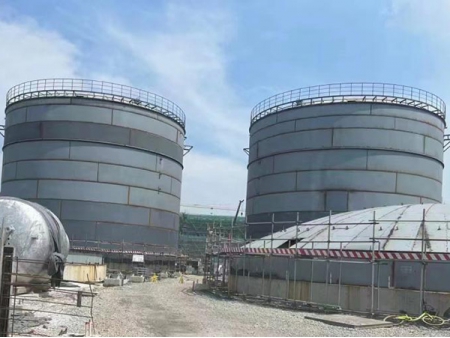

  • Steel silo

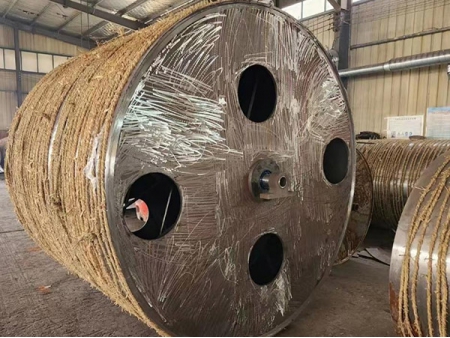

  • Drum dryer
  • Pressure vessel
Standard Configurations

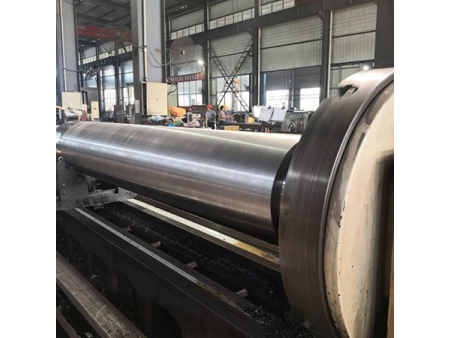

    1. Solid roller shafts equipped with flaw detection
    1. Roller shafts subjected to quenching and tempering treatments, reaching a hardness of HRB-240-280 for resilience

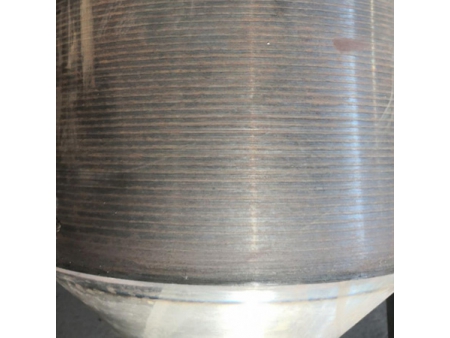

    1. Surface hardening of roller shafts to HRC45-50, providing superior wear resistance

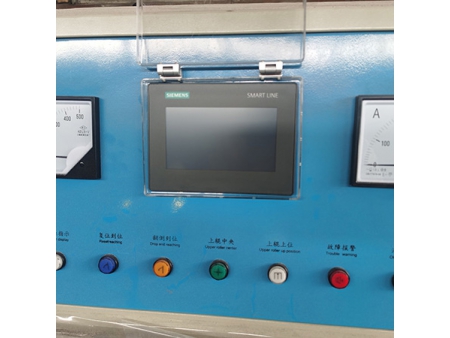

    1. Digital readings thanks to the touchscreen, ensuring easy operation
  • High-quality hydraulic system
Details

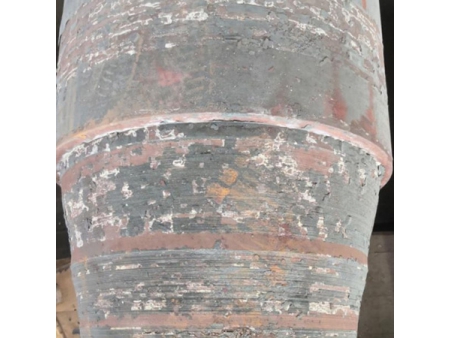

  • Reinforced with cone-rolling setup securely welded onto the base for enhanced durability and performance
  • Equipped with Siemens electrical components such as PLC, a touchscreen, and a wireless remote for easy operation
  • Equipped with an absolute encoder for enhanced precision in measurement
  • Custom-designed hydraulic system, developed in-house to ensure stability and low leakage rates
