Hydraulic Shaftless Mill Roll Stand

Hydraulic Shaftless Mill Roll Stand
Hydraulic Shaftless Mill Roll Stand
Request a Quote

Corrugated Board Manufacturing

    1. Movement of roll stand arm
      fully hydraulic motion
    1. Paper roll diameter
      max. φ1500mm, min. φ400mm
    1. Spindle diameter
      φ240mm
    1. Loading capacity
      3.5T/5T
    1. Working width
      1400mm, 1600mm, 1800mm, 2000mm, 2200mm, 2500mm
    1. Working pressure
      12-16 MPa
    1. Hydraulic cylinder range(lift and down)
      φ100mm×460mm
    1. Hydraulic cylinder range(clamp and release)
      φ63mm×720mm
    1. Brake
      dual-point, multi-point

Features

  • The design of symmetric structure allows for loading two paper rolls simultaneously, so that roll changing can be accomplished without stopping the machine;
  • All movements including lifting and lowering, clamping and releasing are hydraulically controlled;

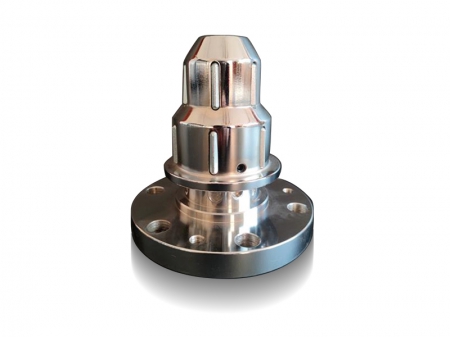

  • Roll stand chucks are expandable chucks for optimal efficiency;
  • Pneumatic brake control of web tension;
  • Brake is adjustable and multipoint inspection system is adopted;
