6×4 Tractor Unit

Request a Quote

Website: http://heavytrucks-en.com/1-2-2-6-4-tractor-unit.html

V3 TRUCKS

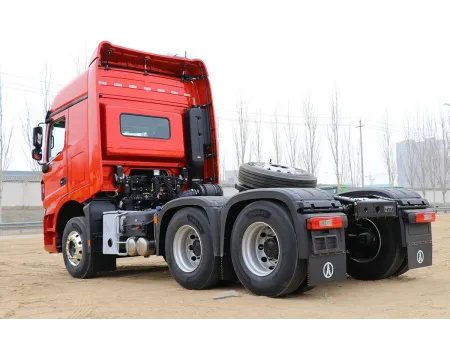

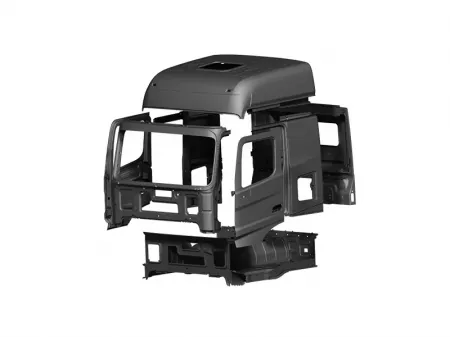

This 6×4 tractor unit features an upgraded four-point suspension cab, a high-performance Weichai WP12 or WP13 engine, and a 16-speed transmission, combined with dual single-reduction or dual-reduction drive axles for excellent hauling strength. Engine options support Euro II, Euro III, and Euro V emission ratings, ensuring flexible compliance for different markets and applications.

Engine power 420 HP / 2100 rpm,
480 HP / 2100 rpm,
550 HP / 2100 rpm
Gross combination weight 49,000 kg
Fuel tank capacity 400 L
Emissions rating Euro II / Euro III / Euro V

Dimensional Drawing

Applicable to 2642SZ/2655SZ

Applicable to 2648LS

Specifications

Model	2642SZ	2655SZ	2648LS
Driving Type	6×4

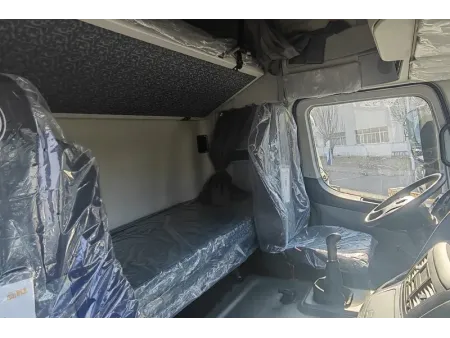

Cab	Cab ExteriorHighway double layer bumper Three-step ladder Rear view mirror (manual adjustment) Exterior sun visor Cab InteriorAir-sprung suspension driver's seat Air-conditioner Electric window regulator Adjustable steering wheel 24V power supply Radio (with MP3 player) Digital instruments	Cab ExteriorHighway double layer bumper Three-step ladder Rear view mirror (manual adjustment) Exterior sun visor Cab InteriorAir suspension seat Air-conditioner Electric window regulator Adjustable steering wheel 24V power supply Radio (with MP3 player) Digital instruments	Cab ExteriorHighway double layer bumper Three-step ladder Rear view mirror (manual adjustment) Exterior sun visor Cab InteriorAir suspension seat Air-conditioner Electric window regulator Adjustable steering wheel 24V power supply Radio (with MP3 player) Digital instruments
Engine	Type: WP12.420E32 Version: EURO II Displacement (I): 11,596 Max. Power (HP/rpm): 420/2100 Max. Torque (N.m/rpm): 1750/1200~1500 Cylinder: 6 in-line	Type: WP13.550E30 Version: EURO III Displacement (I): 12,540 Max. Power (HP/rpm): 550/2100 Max. Torque (N.m/rpm): 2300/1200~1500 Cylinder: 6 in-line	Type: WP13.480E501 Version: EURO V Displacement (I): 12,540 Max. Power (HP/rpm): 480/2100 Max. Torque (N.m/rpm): 2300/1200~1500 Cylinder: 6 in-line
Transmission	12JS200T / 15.53-1 Gears: 12 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: not available Power Take-Off (P.T.O.): optional	16JSDX240T / 16.69-1 Gears: 16 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: not available Power Take-Off (P.T.O.): optional	F12JZ24 / 12.26-0.779 Automated Manual Transmission Gears: 12 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: not available Power Take-Off (P.T.O.): optional
Steering System	8098 Recirculating ball steering gear, hydraulic booster
Clutch	Ø430mm single dry friction disc, diaphragm spring, pushing type
Fuel Tank	400L (iron)
Front Axle	7500kg, non-drive steering
Middle & Rear Axle	13000kg 13000kg, double reduction driving axle, differential lock	13000kg 13000kg, double reduction driving axle, differential lock	11500kg 11500kg, single reduction driving axle, differential lock
Suspension	Front 13pcs / Rear 13pcs hard parabolic spring	Front 13pcs / Rear 13pcs hard parabolic spring	Front 3pcs hard parabolic spring / Rear 8pcs air-sprung
Brakes	Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: EVB (optional ABS)
Electrical Equipment	Alternator: 70Amp Starter Motor: 5.5kW Batteries: 2×12V – 135AH
Performance Data	Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h Final Drive Ratio: 5.263 (optional 4.769, 5.921)	Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h Final Drive Ratio: 5.263 (optional 4.769, 5.921)	Gradeability@GVM: 30% Max. Geared Road Speed: 100km/h Final Drive Ratio: 3.7 (optional 4.11)
Tyre	Size and Ply Rating: 12.00R20-18PR Steel Rim
Dimensions	Wheel Base (WB): 3450 1450mm Overall Length (OL): 7100mm Overall Width (OW): 2550mm Overall Height (OH): 3380mm Front Overhang (FOH): 1515mm Rear Overhang (ROH): 625mm Front fitting radius of semi-trailer: 2500mm Rear fitting radius of semi-trailer: 2300mm	Wheel Base (WB): 3450 1450mm Overall Length (OL): 7100mm Overall Width (OW): 2550mm Overall Height (OH): 3380mm Front Overhang (FOH): 1515mm Rear Overhang (ROH): 625mm Front fitting radius of semi-trailer: 2500mm Rear fitting radius of semi-trailer: 2300mm	Wheel Base (WB): 3300 1350mm Overall Length (OL): 7210mm Overall Width (OW): 2550mm Overall Height (OH): 3950mm Front Overhang (FOH): 1515mm Rear Overhang (ROH): 1035mm Front fitting radius of semi-trailer: 2600mm Rear fitting radius of semi-trailer: 2190mm
Total Vehicle Weight	10400kg

*The above data is subject to the actual product.

Common Optional Configurations

Fuel tank: Optional fuel tank capacities are available based on customer requirements.
Tire specifications: Available tire size options include 315/80R22.5, 14.00R20, 12R22.5, and 12.00R24

Applications

Agricultural product transport: Equipped with a 550 HP engine, the 6×4 tractor is built for composite conditions including rural gravel roads and highways. The cargo bed features anti-corrosion design, ensuring safe and efficient transport of grains, fruits, and vegetables.
Heavy-duty mining transport: Supports loads of up to 80-85 tons and performs reliably across a full temperature range from -30°C to 55°C, making it suitable for demanding mining operations.
Hazardous materials transport: Complies with Chinese regulatory standards for the safe configuration of vehicles transporting hazardous goods.
Cold chain logistics: Delivers compliant 35-ton payload capacity with an independent refrigeration power supply system. The 550 HP engine delivers high torque at low RPM, while temperature-controlled compartments maintain precise cooling from -25°C to 15°C, supporting long-distance refrigerated freight.
Building materials transport: Designed for both short-distance delivery from concrete batching plants and long-haul sand and gravel transport. The anti-vibration chassis helps reduce breakage of precast concrete products.
Oversized equipment transport: Capable of towing up to 150-ton modular trailers, ideal for the transport of wind turbine blades, construction equipment, and other non-standard loads.
