Horizontal Balancing Machine
Request a Quote

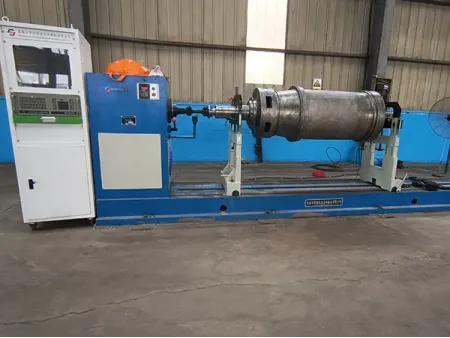

YYW-3000
Hard-bearing balancing machine (universal joint drive) for workpiece with diameter of up to 2500mm and weight of 100-3000kg
- Balances rotors up to 3000 kg in weight and 2500 mm in diameter
- High-precision measuring system detects unbalance as small as 1 g·mm/kg
- Quick shaft positioning for different rotor sizes
- Dual-plane measurement with real-time digital display for efficient and reliable results
Applications
Used for balancing medium-sized components such as motor rotors, pump rotors, centrifuge rotors, blower rotors, machine tool spindles, and internal combustion engine rotors.
- Motor rotors balancing
- Pump rotors balancing
- Centrifuge rotors balancing
Specifications
| Workpiece weight | 100-3000kg |
| Max. workpiece diameter | Ø2500mm |
| Journal diameter of workpiece | Ø40-Ø300mm |
| Distance between two bearing supports | 300-5000mm |
| Balancing speed (stepless speed control) | 180-1200r/min |
| Min. achievable residual unbalance (eMar) | 1g.mm/kg |
| Unbalance reduction ratio (URR) | ≥90% |
Features
- Uses a gearbox with AC motor combination to drive the rotor through a universal joint.
- Before starting, operators only need to set the distance between correction planes, the distance from correction planes to supports, and the radius. With these adjustments, unbalance value and phase are displayed accurately in a single run.
- Suitable for special rotors such as those with inner or outer overhanging masses.
- Available with different sizes of universal joints to match specific balancing requirements.
Examples of Workpieces Our Machines Can Balance
- Standard rotors
- Crusher rotors

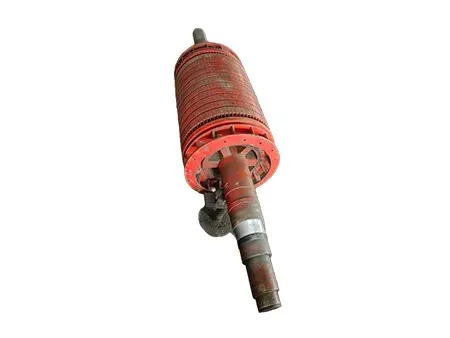

- Motor rotors
